What is it?

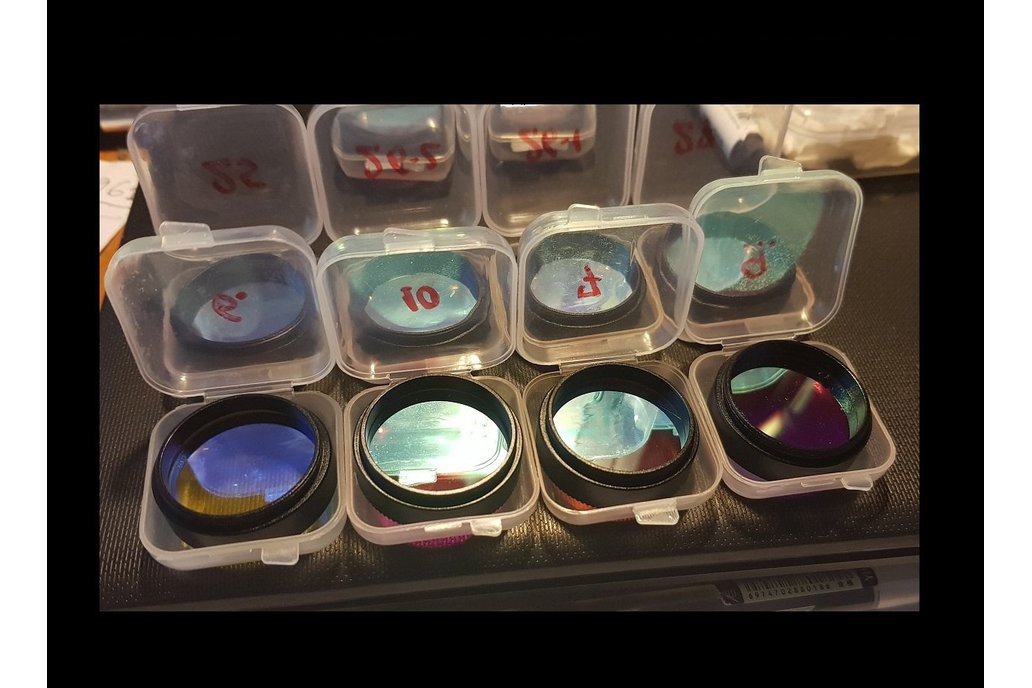

HR Dielectric laser mirrors manufactured by PVD technology Each mirror is assembled in its individual aluminium 1.25" frame with standard M28.6x0.6mm mounting thread.

Filter Material: N-BK7 Optical Glass + Multi-layer Dielectric Coating Reflectivity : R > 99.5% Frame diameter: 1.25 inch Frame mounting thread: M28.6x0.6mm

These mirrors are fully functional but these are not "new items". They were recovered from laboratory equipment, therefore the presence of small cosmetic marks, due to handling during use, is possible.

In the table below you will find details regarding the spectral range in which the reflectivity is greater than 99.5% and the approximate number of pieces available.

1. R > 99.5% @ [400 - 470] nm 5 pcs (code 6)

2. R > 99.5% @ [450 - 570] nm 3 pcs (code 7)

3. R > 99.5% @ [460 - 590] nm 2 pcs (code 26)

4. R > 99.5% @ [460 - 600] nm 1 pcs (code 27)

5. R > 99.5% @ [470 - 610] nm 1 pcs (code 9)

6. R > 99.5% @ [480 - 620] nm 2 pcs (code 10)

After purchase, please indicate in a message which items from the table above were purchased.

Why did you make it?

For various laser setups

What makes it special?

Total dielectric mirrors
