Robot platforms with omni wheels have a rectangular structure that can move in desired directions thanks to its superior mobility, which is frequently used in robotic applications recently. This model omni wheel robot platform has a large space. If you need a smaller volume, you can review other robot platforms on our site.

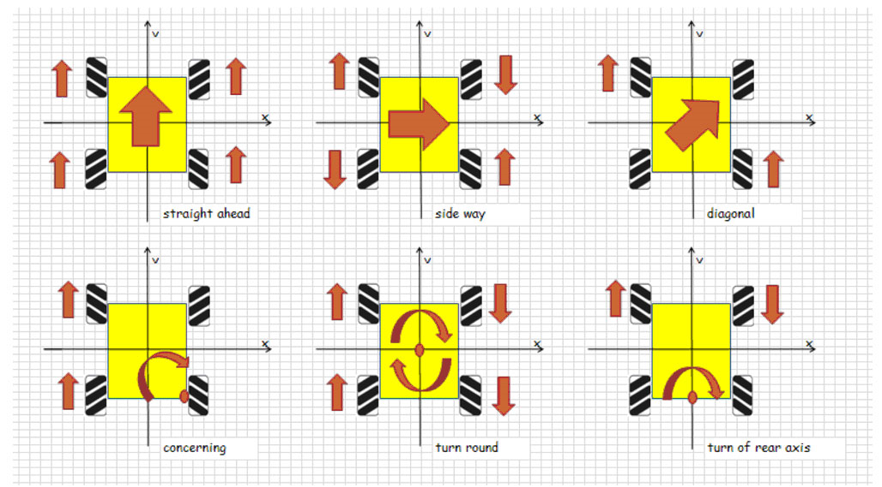

Omni-wheeled robots have more mobility than robots made using standard wheels, thanks to the independent movement of each wheel and their special designs. As you can see in the picture, in addition to forward-backward and right-left rotation movements, it can easily perform diagonal, right-left sliding, rotational movements around any axis.

Package Included:

• Cruise Omni Wheeled Robot Body (Top and bottom table)
• Set of 4 60mm Plastic Omni Wheels
• 4 x Plastic Geared Motors
• 4 x Metal Motor Mounts
• Female-Female Metal Spacer
• Mounting Screws and Nuts
• Arduino Uno and Usb Cable
• Arduino Motor Driver Shield
• HC06 Bluetooth-Serial Module Board

Technicial Specifications:

• Wheel Diameter : 60mm
• Distance Between Wheels: 195mm (internal distance)
• Outer Outer Distance Between Wheels: 275 mm

Motor Features:

• Operating voltage: 6VDC
• Idle speed: 200RPM±10%
• Reduction ratio: 1:48
