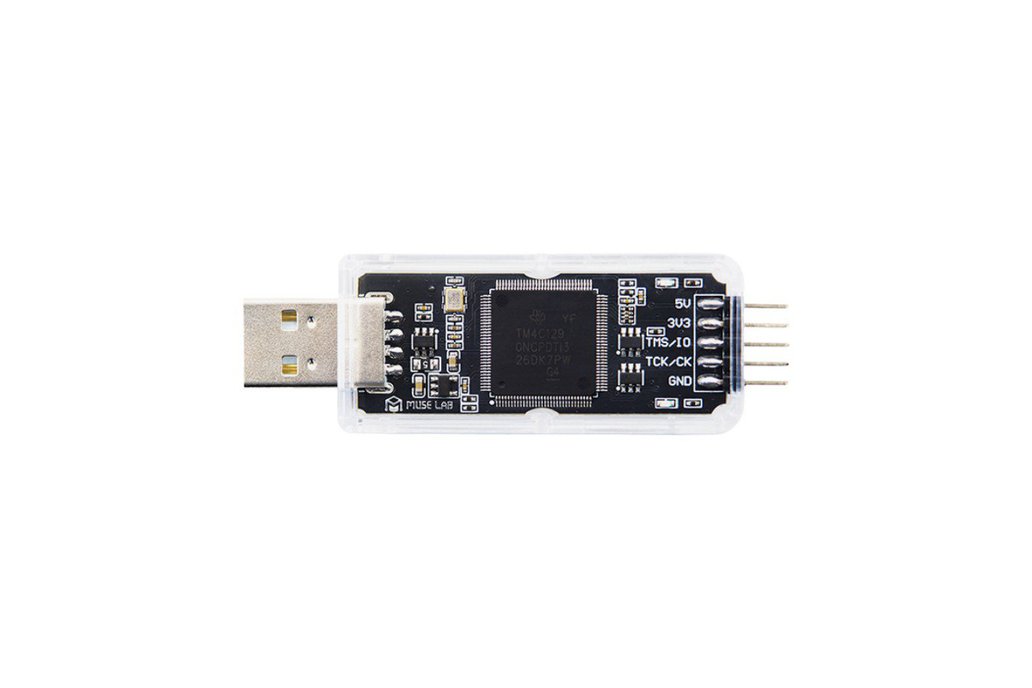

XDS110 Debugger

Name: XDS110 Debugger
SKU: 40885
Price: 15.00 USD
Availability: InStock

XDS110 Debug Probe TI DSP/MCU C2000 JTAG/cJTAG/SWD/UART Overcurrent electrostatic protection

Designed by MuseLab in China

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

NOTE: I've been unable to log in to discuss.tindie.com recently (it seems to be a server issue on the tindie platform). If you encounter any problems, please send me an email. Thank you

XDS110 Debug Probe TI DSP/MCU C2000 JTAG/cJTAG/SWD/UART Overcurrent electrostatic protection

Intruduction The XDS110 debugger can be used to debug various TI MCU/DSP chips, such as the C2000 series DSPs and ARM Cortex-A/Cortex-M series MCUs. It supports JTAG/cJTAG/SWD interface debugging, pr…

Intruduction
The XDS110 debugger can be used to debug various TI MCU/DSP chips, such as the C2000 series DSPs and ARM Cortex-A/Cortex-M series MCUs. It supports JTAG/cJTAG/SWD interface debugging, provides external 5V/3.3V power supply, and includes a serial port. It is plug-and-play without requiring drivers, and features overcurrent and electrostatic discharge protection. The overall design is compact and portable.

Specification


Name	XDS110 Debug Probe
Debug Interface	JTAG/cJTAG/SWD/UART
IDE	CCS/Keil/UniFlash/Openocd
Platform	Windows/Linux/Mac
Voltage Input	5V(USB Power Supply)
Voltage Output	5V/3.3V
IO Level	3.3V
Size	7.0cm * 2.4cm * 1.2cm
