Note: The current shipping chip is CH572D, and the CH570D package will be added later. Compared with CH572D, CH570D only reduces the BLE function, and the rest is exactly the same Introduction nanoCH…
Read More…Note: The current shipping chip is CH572D, and the CH570D package will be added later. Compared with CH572D, CH570D only reduces the BLE function, and the rest is exactly the same
Introduction

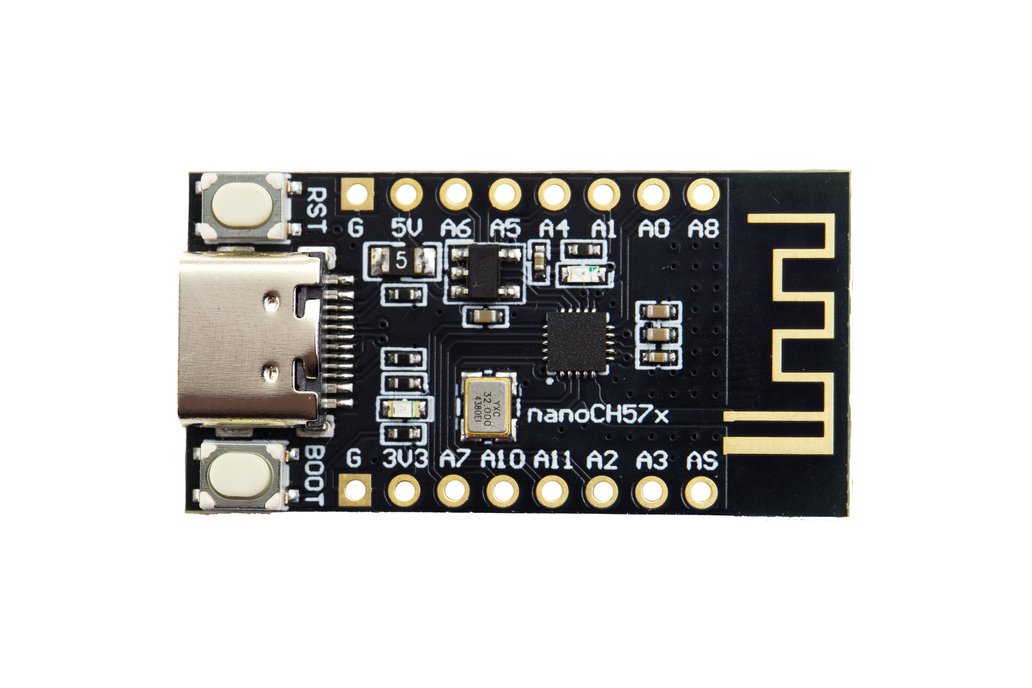

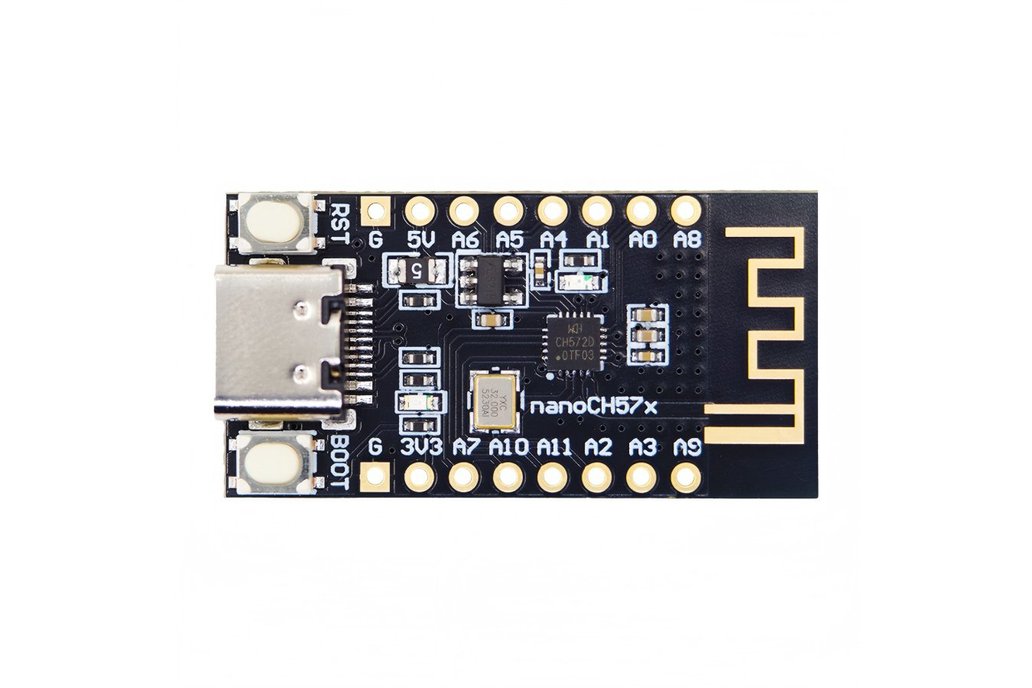

nanoCH57x is a development board based on WCH CH572/CH570 launched by MuseLab. The chip has a maximum main frequency of 100MHz, supports Bluetooth BLE and 2.4GHz communication, and can be downloaded and burned through the USB port, which is convenient for customers to conduct rapid prototype verification and development.
Features
Onboard 32MHz crystal oscillator, chip maximum frequency 100MHz
Support USB 2.0 full-speed HOST/Device
Onboard reset RST button and BOOT button, you can enter the download mode through the BOOT button
Onboard power indicator (red LED) and IO control indicator (blue LED, controlled by PA11)
Onboard 2.4G PCB antenna, support BLE/2.4GHz RF transceiver

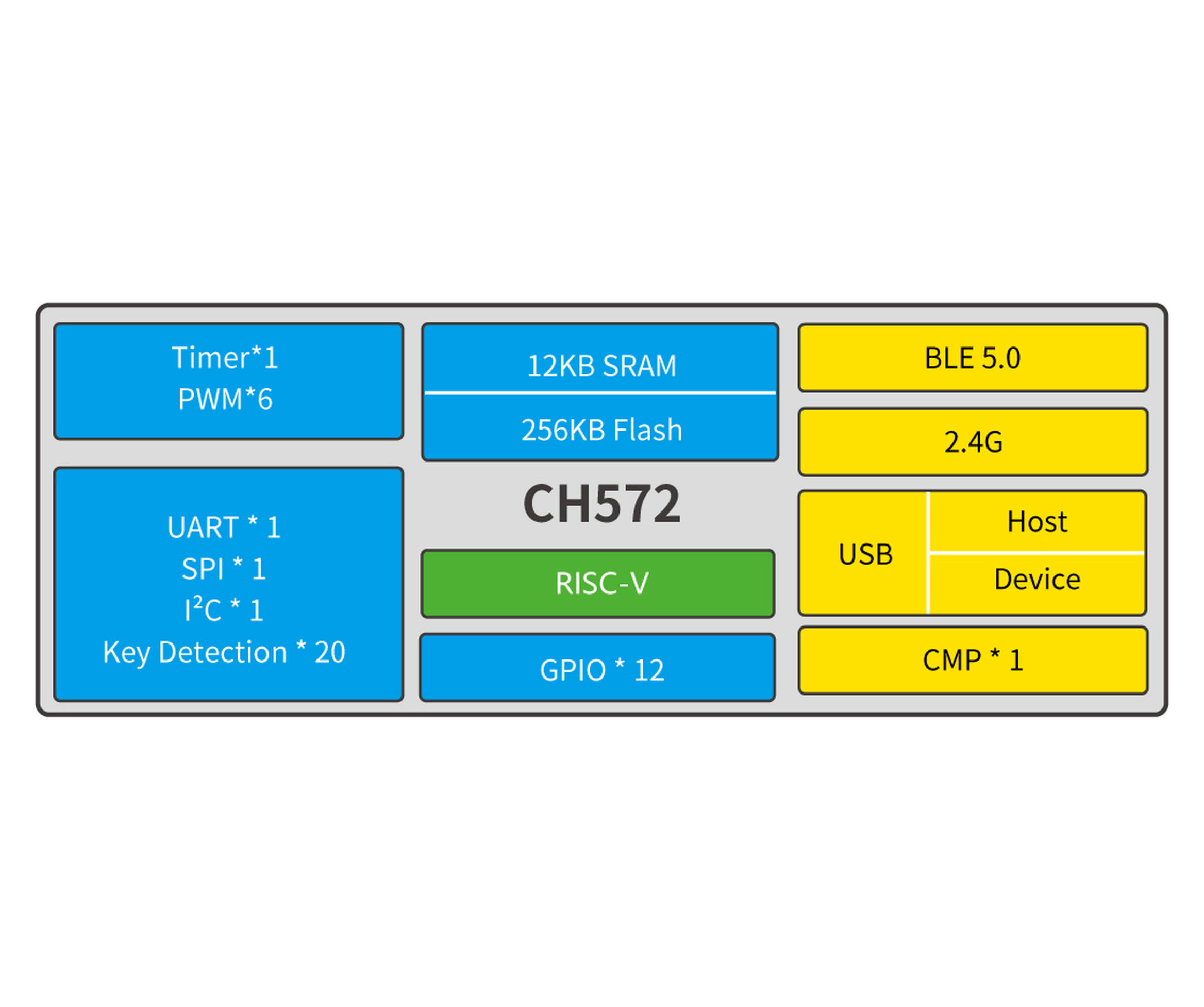

Chip Resources

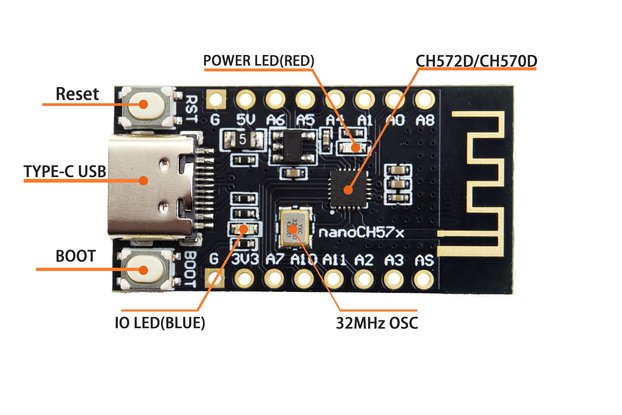

Diagram
Documentation
Shipping List
Kit 1: nanoCH57x Development Board * 1 + 8 Pin Header * 2
Kit 2: nanoCH57x Development Board * 1 + 8 Pin Header * 2 + 1 Meter TYPE-C Cable
Kit 3: nanoCH57x Development Board * 1 + 8 Pin Header * 2 + WCHLink-E Debugger
Kit 4: nanoCH57x Development Board * 1 + 8 Pin Header * 2 + WCHLink-E Debugger + 1 Meter TYPE-C Cable
