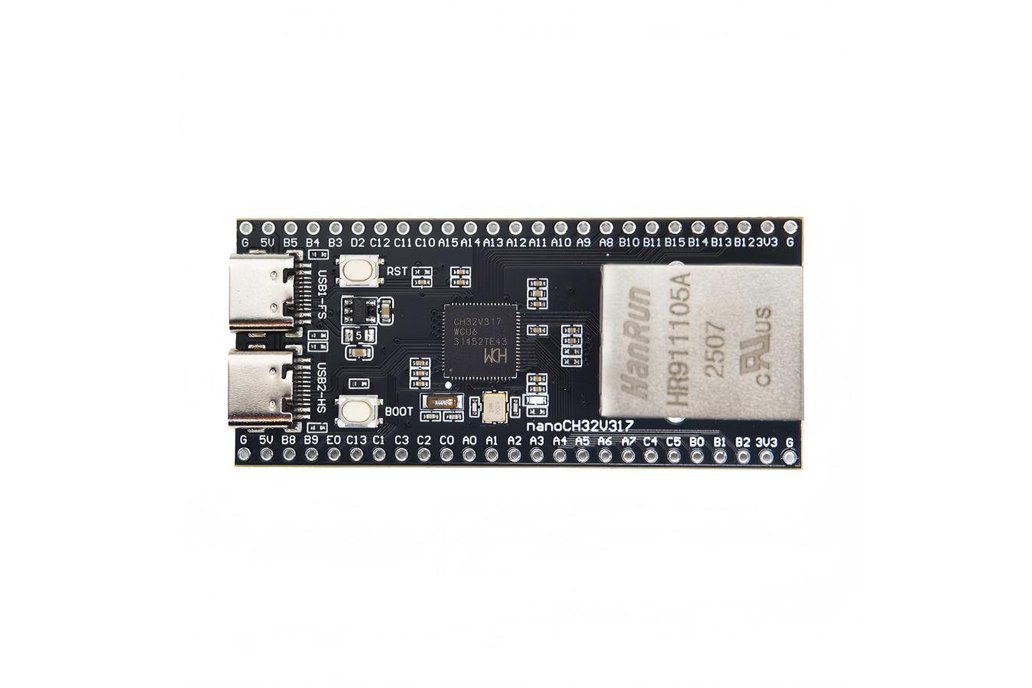

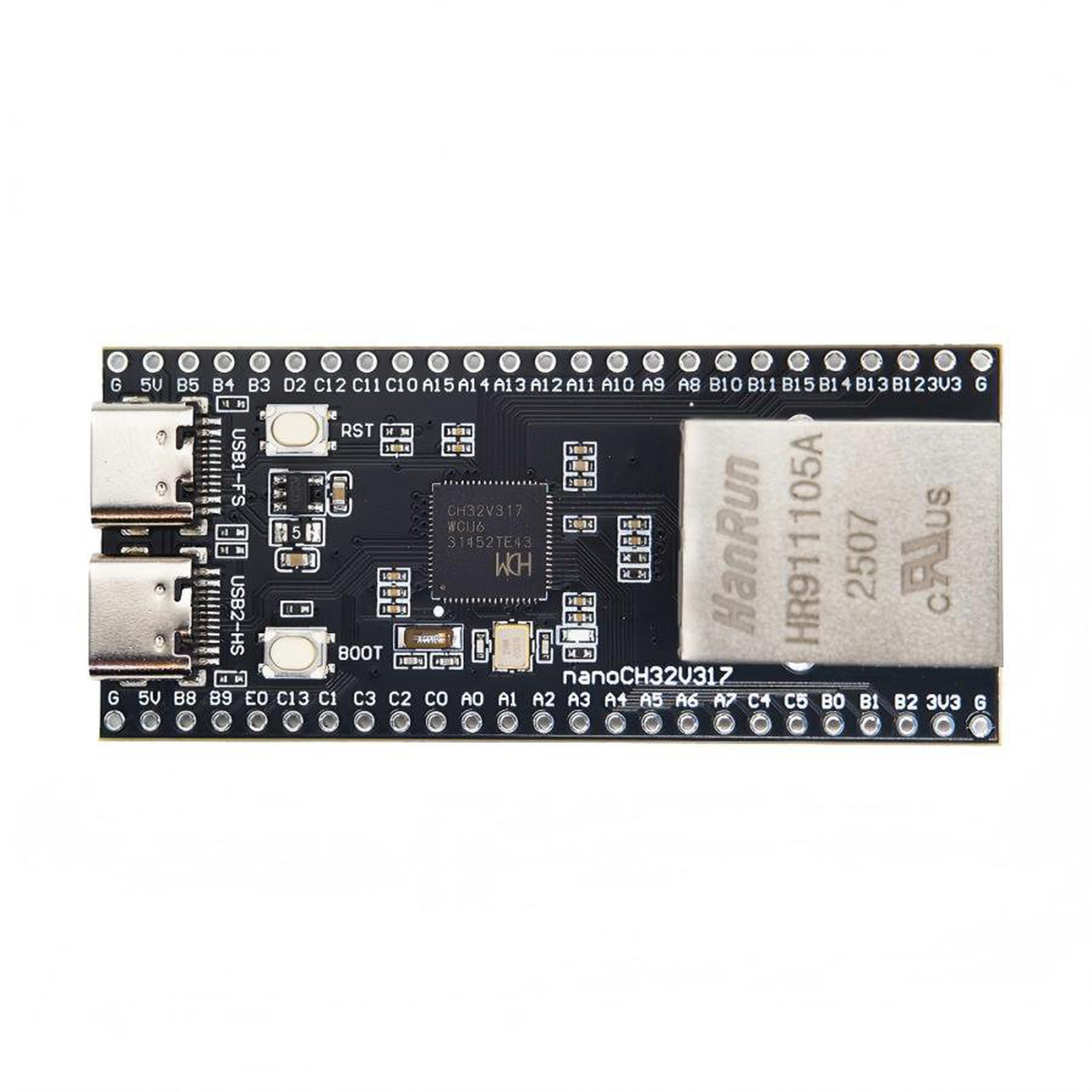

nanoCH32V317 Development Board WCH RISC-V Dual TYPE-C Interface USB 2.0 High Speed 100M Ethernet Open Source
Designed by MuseLab in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Notice For EU Buyers: VAT is already included in Shipping Rate, Thanks
Introduction The nanoCH32V317 development board is designed by MuseLab based on the WCH CH32V317WCU6. It supports peripherals such as USB2.0 high-speed/Ethernet MAC controller, 10/100M physical layer…
Read More…Introduction
The nanoCH32V317 development board is designed by MuseLab based on the WCH CH32V317WCU6. It supports peripherals such as USB2.0 high-speed/Ethernet MAC controller, 10/100M physical layer transceiver, DVP, SDIO, and advanced motor PWM timer. The chip's maximum clock frequency is 144MHz, and it can be programmed via the TYPE-C USB port, Facilitate rapid development and prototype verification
Features
- Dual USB interface, USB1 is USB-FS device, USB2 is USB-HS device
- Can be downloaded directly via USB without additional downloader
- Onboard 8MHz and 32.768K crystal oscillator
- Onboard 100M Ethernet interface (with filter)

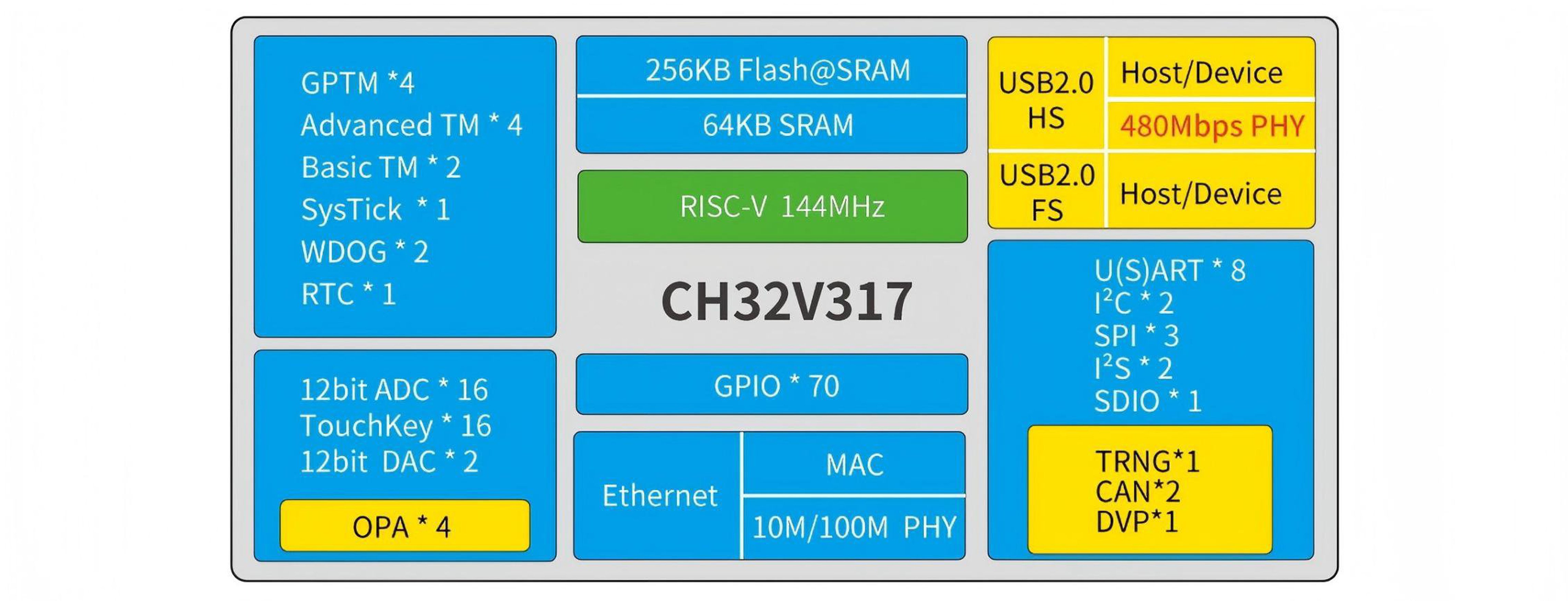

Chip Resources
Documentation
- https://github.com/wuxx/nanoCH32V317
Shipping List
- Kit 1: nanoCH32V317 Development Board * 1 + 25 Pin Header * 2
- Kit 2: nanoCH32V317 Development Board * 1 + 25 Pin Header * 2 + 1 Meter TYPE-C Cable
- Kit 3: nanoCH32V317 Development Board * 1 + 25 Pin Header * 2 + WCHLink-E
- Kit 4: nanoCH32V317 Development Board * 1 + 25 Pin Header * 2 + WCHLink-E + 1 Meter TYPE-C Cable
