8-Port Active RF x2 Stage LNA Splitter (RX Only) for WiFi and BT with 10dB gain per output port
Designed by ALFTEL in CanadaThis product is no longer available for sale.
The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

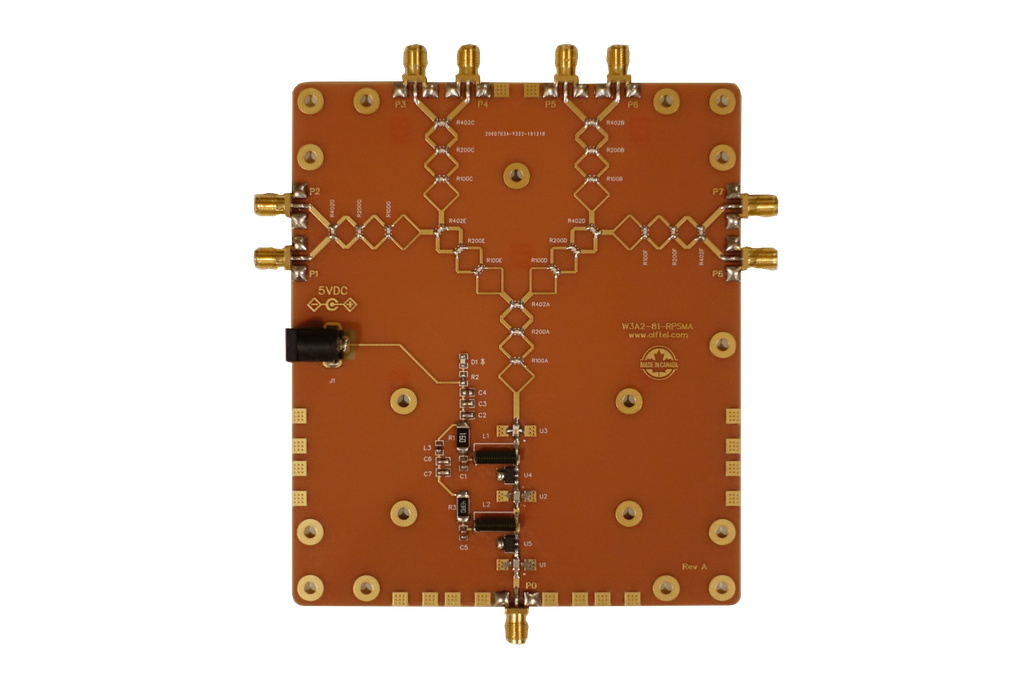

W3A2-81-RPSMA is 8-port Active RF signal Splitter purposely built for dual-band WiFI and BT applications as well as any other wireless technology in 2.0 GHz - 6.0 GHz band. It is based on a passive m…
Read More…W3A2-81-RPSMA is 8-port Active RF signal Splitter purposely built for dual-band WiFI and BT applications as well as any other wireless technology in 2.0 GHz - 6.0 GHz band.
It is based on a passive multi-section Wilkinson design (3 sections) W3-81-RPSMA model (see full description here 8-Port RF Splitter for WiFi and BT) and has x2 stage LNA (Low Noise Amplifier) circuit implemented at input port. As a result each output port delivers 10dB gain.
Dual model option W3A2-82-RPSMA follows the same design concept as passive dual model W3-82-RPSMA (see full description here Dual 8-Port RF Splitter/Combiner for WiFi and BT) and constructed as two W3A2-81-RPSMA boards mated together in order to achieve compact design footprint.
NOTE: Due to uni-directional nature this design is intended for RX (Receive) applications only and can not be used as RF combiner.
Power Requirements:
Splitter (Passive Part) Characteristics (insertion loss and isolation) - see pictures above.
First Stage LNA (Active Part) Characteristics - see pictures above.
Second Stage LNA (Active Part) Characteristics - see pictures above.
