Breadboard adapter for Microchip BM64 bluetooth module
Designed by Tomas Kovacik in Slovakia
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
As of 05.2022 no more untracked packages outside of the EU because of price: 6€ untracked vrs tracked 5.3€ (https://cennik.posta.sk/en). No responsibility for the loss of untracked packages.

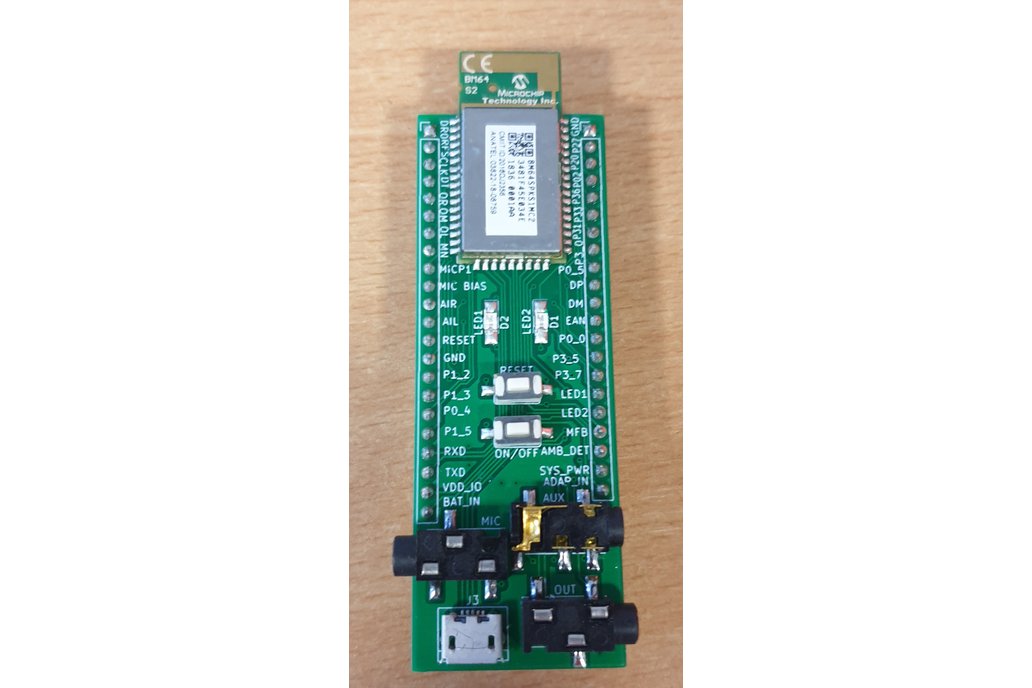

What is it? Breadboard adapter for BT audio modules BM64 from Microchip. Microchip sells a development board with BM64 for a lot. So I decided to design my own and sell spare boards here on Tindie. T…
Read More…Breadboard adapter for BT audio modules BM64 from Microchip.
Microchip sells a development board with BM64 for a lot. So I decided to design my own and sell spare boards here on Tindie. The module is not included.
I'm working on a project that includes bluetooth audio and I want to try various bluetooth audio modules. Bluetooth modules are always in the form of a board designed to be soldered on the main PCB so they are not breadboard compatible. This makes prototyping with them really difficult, so I made a breadboard for each bluetooth module I got my hands on :).
It's open source, and all of my creations source files are on my GitHub page. The link can be found below in the documentation section. Board schematics are made in KiCad OSS SW. Board design is tested by me. If any bugs show up, I will ship it fixed or the fix will be documented here (in case it cannot be fixed in advance).
breadboard friendly
RESET button
MFB button (for the start of the module, if autostart is not configured via UI tool)
2 LEDs
output jack
Mic input (3.5mm jack) with support circuits
AUX input (3.5mm jack) with support circuits
micro USB port for power
provision for separate battery 2pin header (2,54mm/0.1")
pins of the module are routed to 2.54mm(0.1") headers
default(1$):
optional smd components include(+3$):
2x button (for MFB and RESET)
3x 3.5mm stereo jack for output, mic and aux
passives (caps, resistors, 2xLED)
pin headers (1x18pins)
option for soldered components (not BM64) is + 6$
spin-off as part of the project:
None of the option includes the actual bluetooth module.
Link to my configuration files on github: BM64
BM64 module overview on Microchip site
Arduino ibrary for this module
KiCad project of this board(schematics,PCB design etc)
footprint KiCad library including BM2x,BM6x modules
[BM2x,BM6x schematics symbol for KiCad)(https://github.com/tomaskovacik/kicad-library/tree/master/library)
(you need files from last 2 links for opening Kicad Project)
