IoT GSM GPRS Arduino M95 development board

Name: IoT GSM GPRS Arduino M95 development board
SKU: 8525
Price: 65.00 USD
Availability: Discontinued

Arduino quactel M95 quad band GSM GPRS ATMEGA644PA-AU MCU development board with enhanced Arduino GPRS library

Designed by Tinovi in Latvia

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

Visit Store

More From Tinovi:

I2C Soil Moisture, Temperature sensor

Tinovi

$28.00

I2C Capacitive leaf wetness, Temperature sensor

Tinovi

$48.00

USB Soil Moisture, Temperature Sensor

Tinovi

$30.00

LW-5 LoRaWAN IO device Soil Moisture sensor

Tinovi

$78.00

More From IoT & Smart Home

HeishaMon communication PCB

TheHogNL

$20.00

Dreame PCB Breakout for Valetudo

Scacht

$34.00

Open CO2 Sensor

OpenCO2

$99.90

Home Buttons

PLab

$59.00

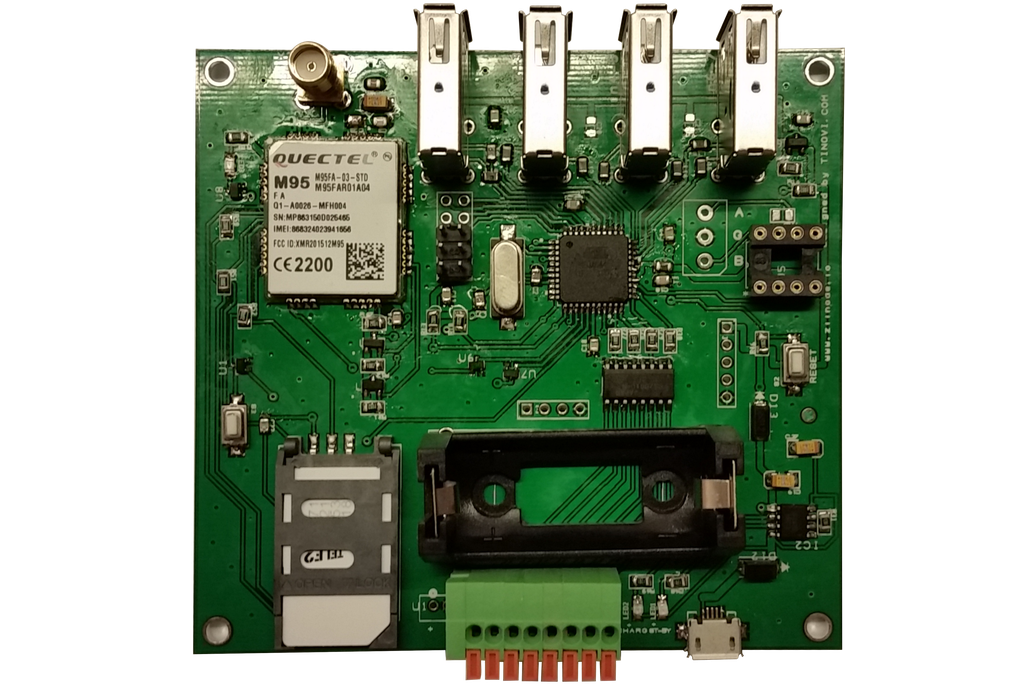

IoT GSM GPRS Arduino M95 development board 1

IoT GSM GPRS Arduino M95 development board 2

2016-12-11T17:51:43.278Z-GSM liela taisnota.png

Tinovi store

Arduino quactel M95 quad band GSM GPRS ATMEGA644PA-AU MCU development board with enhanced Arduino GPRS library

Tinovi GSM board is has total 8 analog/digital inputs accessible vai 4 connectors 2 inputs each and 4 NPN transistor outputs. It is based on ATMEGA644PA-AU MCU and quactel M95 Quad-band GSM/GPRS module. This board has onboard CR123A/16340 Li-ion rechargeable battery socket with 5V micro-USB charger socket. Modem firmware is designed for low power sleep modes with pulse input counters for meter applications to live on battery power for long time. You also may connect solar power packs to 5v micro-USB charger circuit input. Inputs has USB-A type connector male socket each having access to 2 ATMEGA644PA-AU analog IO pins (PA0-PA7). USB A-Type connector is very flexible. It allows to directly plug in PCB board with sensor adapter on it. Also can be used for custom outputs. Currently we have adapted DTH11 or DTH22 humidity and temperature sensors as well as popular DS18B20 digital temperature and NTC10K analog temperature sensors. For industrial applications there are adapters for 0-10 voltage and 0-20mA current inputs. For ATMEGA644PA-AU UART0 (Arduino Serial) there is option to solder in the board RS485 line driver and terminal connector to access industrial devices.

Board features:

8 analog/digital inputs/outputs (Arduino pins A0, A1, A2, A3, A4, A5,A6, A7)
4 open collector opticoupler outputs (Arduino pins 2,3,4,5)
Digital inputs are 5v tolerant with built in level shifters for esp8266 digital IO
Each USP-A type connector has 5v power and ground
firmware to connect to Tinovi cloud services
Size 98*95mm

*SIM card not included.

EUROPEAN UNION CUSTOMERS: items sold on Tindie are excluded VAT and goods will be shipped only outside EU. If you are European union customer you should place your order on our website https://tinovi.com where VAT will be calculated automatically.

*Please note that while the board itself works with low voltages, high voltages may be involved when mounting and using it. High voltages can be lethal and in the worst case may lead to electrocution and possibly death. It is assumed that you are a competent engineer and you know what you are doing. If not, please do not buy and/or use this product or search for a trained technician in your area that can help you. *
