Build a retro ISA or PC / 104 slot-based system on an ITX format board
Designed by aitorgomez.net in Spain
This product is no longer available for sale.
The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

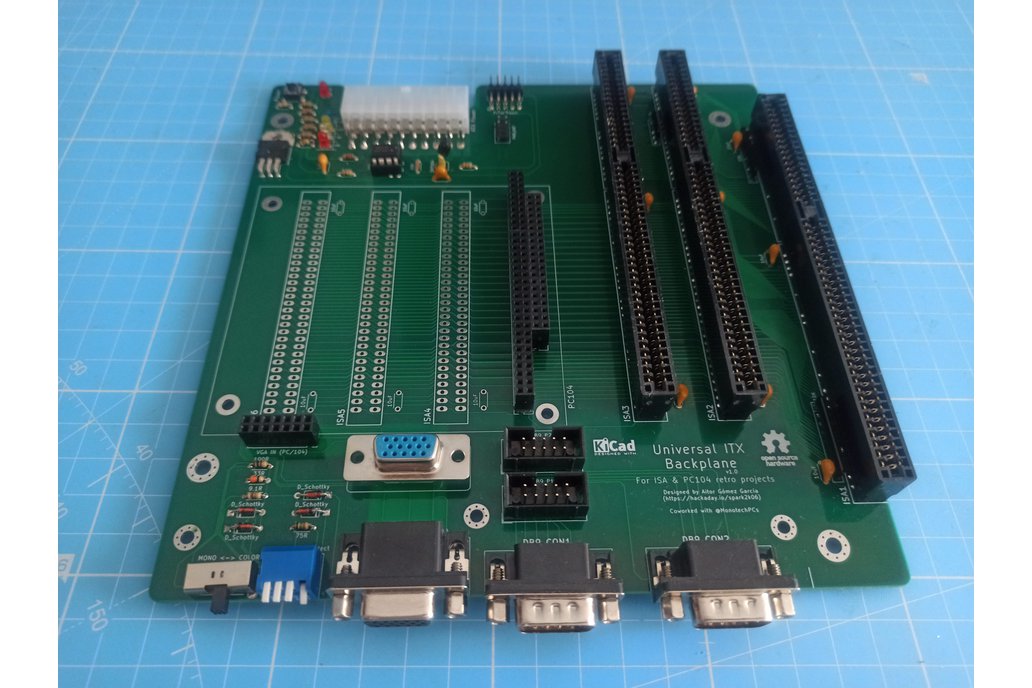

What is it? This backplane is initially intended to be used with Sergey Kiselev's Micro8088 or xi8088 PC clones, among others system powered by x86 architecture. However, other old systems could also…
Read More…This backplane is initially intended to be used with Sergey Kiselev's Micro8088 or xi8088 PC clones, among others system powered by x86 architecture. However, other old systems could also be developed using FPGAs built or adapted to ISA or PC / 104 type slots, plus other accessories based on these. Open Source Hardware project, Kicad project files provided across on my GitHub account.
Notice: The project is still in the prototype phase, the first version has been tested and has an identified fault, although easily fixable.
Like the other project I have developed, called MonochromeVGA, you can select green, amber or B&W as monochromatic color, among others at the VGA output. Change color to monochrome or vice versa easily.

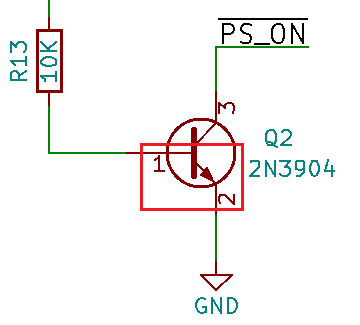

At the moment, the only problem found is related to the on/off system. The 2n3904 transistor footprint had the Emitter and Base pins swapped due to a mistake of mine copying it from another design with another transistor:
Without this fix, the boot button would not work.
Due to the state of the project, and some difficulties appreciated to fit it in Mini-ITX cases with ISA video cards, I have decided not to continue it. For the same reason, I offer different options with a more adjusted price.
If you do not use a Mini-ITX comercial case, or if you adapt or create one conveniently (in 3D for example), this board can be adjusted to your needs.
The sale options that I offer are the following:
