This simple device act as CD changer and head unit then enable audio input for CD changer, so you can play music from your mp3 player, or mobile phone on your stock head unit. I do not program any ...Read More…
This simple device act as CD changer and head unit then enable audio input for CD changer, so you can play music from your mp3 player, or mobile phone on your stock head unit. I do not program any SW part of this, simple I just design PCB ,for my self, and here you can buy it. After while I added more options which you can buy based of your skills and what you are looking for. Based on head unit you have, select appropriate connector: mini-iso or 12pin fakra, if you are not sure, which connector your radio has, drop me message and I try to investigate, but best way is take unit out and look.
Which connectore do you need? check your unit or look at the end of this page, there is list of supported units with information about connector used. If it's not there or connector type is not mentioned, drop me message
PCB, preprogrammed PIC mcu, 5V regulator, pasives, 5x pins, no cables
assambled THT kit for refrence:

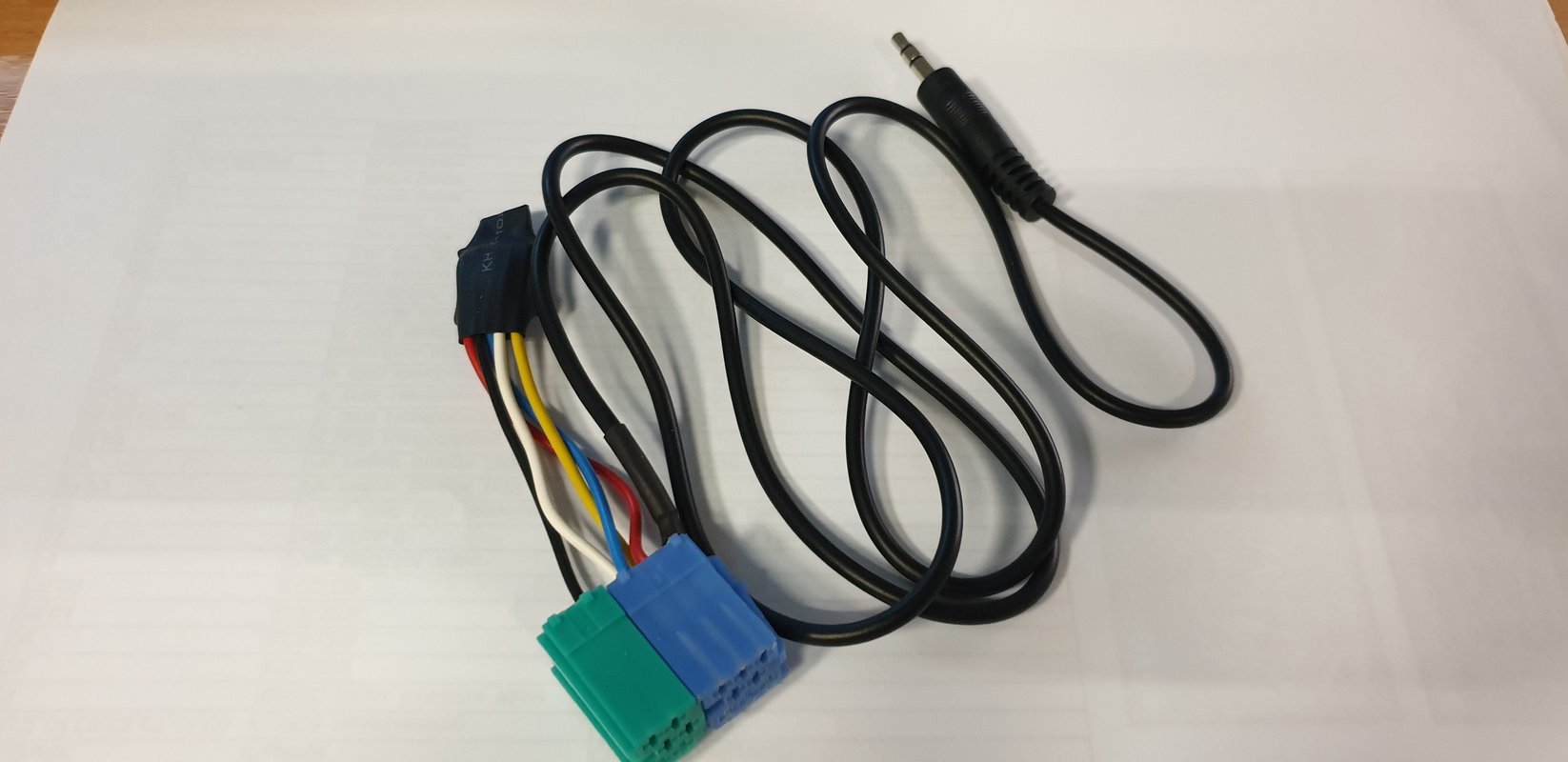

THT mini-iso kit:
THT 12pin connector kit:
for more detail about product read this archive of original wcdpic project: https://web.archive.org/web/20110817024153/http://www.k9spud.com/vwcdpic/
how to connect this emulator: http://kovo-blog.blogspot.sk/2016/11/how-to-connect-vwcdpic-adapter.html https://github.com/tomaskovacik/vwcdpic/blob/master/hw/pics/how-to-connect_audi.png
in case you or I messed something up, here is easy guide how to unpin everything in case of mini-iso connector: http://kovo-blog.blogspot.sk/2016/11/how-to-unpin-miniiso-connector.html
if you ordered SMD kit, here is assembly plan:
supported head units:
VW head units:
SEAT head units:
(list of compatible headunits from original vwcdpic project - https://web.archive.org/web/20110811154456/http://www.k9spud.com/wiki/VWCDPIC:Compatible_Head_Units)
I do not personally test any of rockbox/ipod control, only custom mpd control over serial line, which of course work, see github.
if you have audi chorus 1 unit, you can get it to work on this unit also, option is available in radio selection. More info: http://kovo-blog.blogspot.sk/2013/11/how-to-enable-cd-changer-input-on-audi.html
my blog about this http://kovo-blog.blogspot.sk/2014/02/cd-changer-emulator.html, http://kovo-blog.blogspot.sk/2015/01/vwcdpic-boards.html
