Tactile switches for MintyPiPico (optional)

Name: Tactile switches for MintyPiPico (optional)
SKU: 38403
Price: 1.00 USD
Availability: InStock

Optional tactile switches to be soldered to MintyPiPico main board

Sold By Mr. Robot Electronics

Tactile switches for MintyPiPico (optional) 1

Tactile switches for MintyPiPico (optional) 2

Tactile switches for MintyPiPico (optional) 3

Tactile switches for MintyPiPico (optional) 4

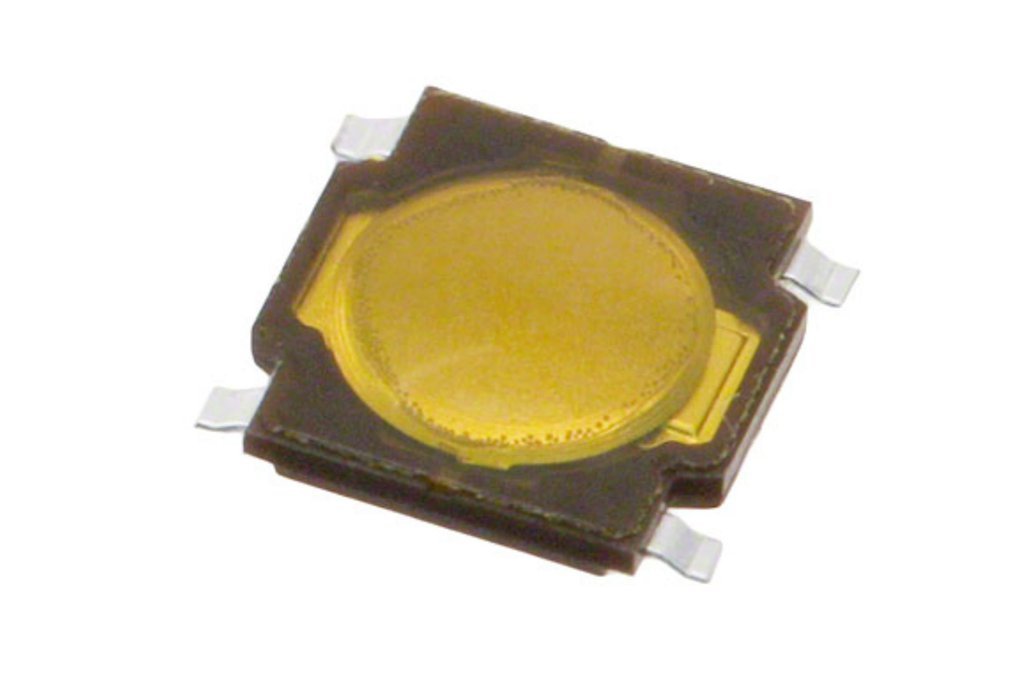

2025-04-17T16:59:00.650Z-tactile switch.jpg

2025-05-09T22:40:12.993Z-tactile switch 4.jpg

2025-05-09T22:40:12.993Z-tactile switch 2.jpg

2025-05-09T22:40:12.993Z-tactile switch 3.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Search "MintyPiPico" on YouTube for details on the MintyPiPico project.

Optional tactile switches to be soldered to MintyPiPico main board

These tactile switches can be installed on the MintyPiPico main board to provide a clicky feel to the buttons. SERIES TL3315 SWITCHES www.e-switch.com email: info@e-switch.com 7153 NORTHLAND DRIVE NO…

These tactile switches can be installed on the MintyPiPico main board to provide a clicky feel to the buttons.

SERIES TL3315 SWITCHES www.e-switch.com email: info@e-switch.com 7153 NORTHLAND DRIVE NORTH PHONE: 800-867-2717 MINNEAPOLIS, MN 55428 FAX: 763-531-8235 TACT SWITCHES SMT - LOW PROFILE FEATURES & BENEFITS Very low profile Surface Mount APPLICATIONS / MARKETS Consumer Electronics Audio/visual Medical Testing/Instrumentation Telecommunications Computer/Servers/Peripherals MECHANICAL SPECIFICATIONS HOW TO ORDER: ELECTRICAL SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS Force: 160 +/- 50 gf Travel: 0.20mm Electrical Life:500,000 cycles Contact Rating: 50mA @ 15VDC Contact Resistance: 200mΩ (initial max) Insulation Resistance: 50MΩ (Min @ 100VDC) Dielectric Strength: 250VAC Operating Temperature: -20ºC to +70ºC Storage Temperature: -25ºC to +80ºC OPERATING

They can be ordered from Digikey also, part number EG4621CT-ND
