Specification : Microcontroller (ESP32) CPU: Dual-core Xtensa® 32-bit LX6 @ 240MHz (Espressif) Co-Processor ULP Clock Frequency 240MHz Performance: 600 (Dhrystone Million Instructions Per S).

Memory Flash Storage: 16MB Internal SRAM: 520KB PSRAM: 8MB

Connectivity Wi-Fi: 802.11 b/g/n (2.4GHz) Bluetooth: 4.2 BR/EDR and BLE Ethernet 100 Mbps

Power Management USB Power: 5V supply with automatic power switching External Power Input: Supports 5V/3.3V I/O Interfaces 34 × GPIO pins 2 (8-bit) × DAC (Digital-to-Analog Converter) 18 (12-bit)SAR× ADC channels (Analog-to-Digital Converter) 2 × SPI Controllers 2 × I2C Controllers 2 × UART Ports 2 × I2S Interfaces 16 × PWM Outputs 32 x External Interrupts Support 2 x CAN

Security Features Secure Boot & Flash Encryption 1024-Bit OTP Cryptographic hardware acceleration: AES, SHA, RSA, ECC, RNG Secure OTA (Over-The-Air) updates

Peripheral Support Integrated Hall Effect Sensor 10 x Capacitive Touch Sensing 16 x RTC (Real-Time Clock) with Low-Power Mode ( 10uA Deep Sleep Mode ) USB Support USB-to-Serial (for programming and debugging)

Software Compatibility Arduino IDE MicroPython ESP-IDF (Espressif SDK) PlatformIO in VSCode (with DeepSeek AI)

Power Management for Nanokit Integrated ESP32 Board Connecting the Nanokit Integrated ESP32 Board to a Computer Power Supply [PC]: 0.5A × 5V = 2.5W The board receives 2.5W of power, ensuring stable operation.

Automatic Dual Power Supply Switching: When an external power source (e.g., a 5V IN/OUT battery) is detected, USB power is automatically disconnected. This mechanism prevents interference between power sources and avoids data loss while connected to a computer. Connecting the Nanokit Integrated ESP32 Board to a Phone Charger Power Supply [Charger]: 1A × 5V ≈ 5W When the power reaches 5W, the system automatically trips for protection. Once the current stabilizes, the board resumes operation automatically, providing the necessary energy for stable performance.

Applications Ideal for Applications Such As:IoT Devices | Robotics | Smart Automation | Wireless Communication | HMI Industrial Systems | AI & Embedded Projects | Education | UMT ( Pro_Amine IC )

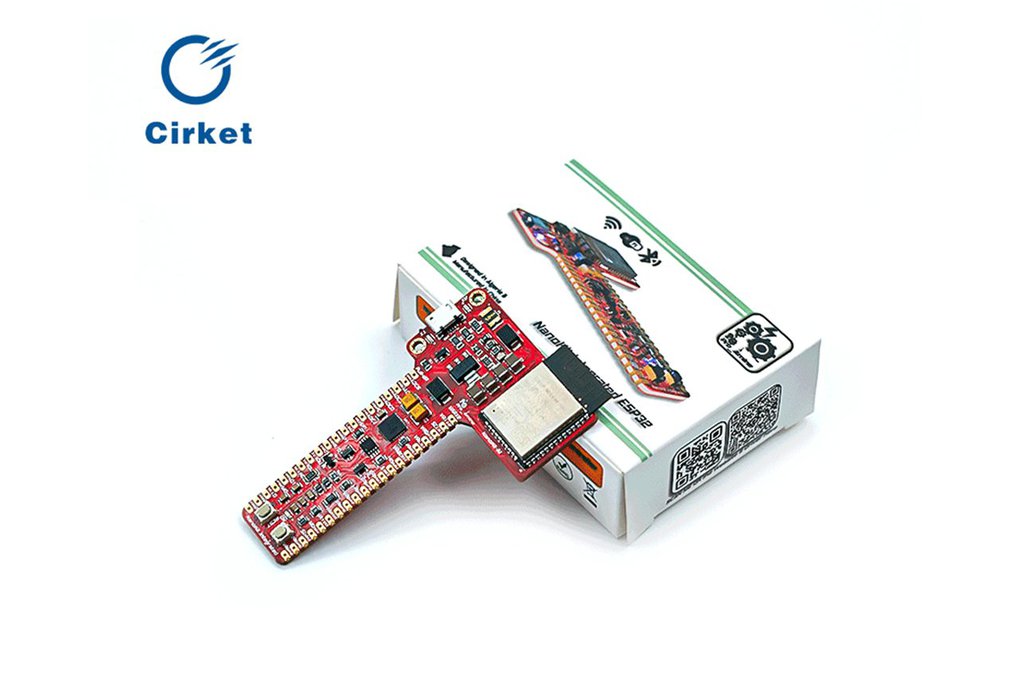

The Nanokit Integrated ESP32 features 40 SMD pins, designed to be soldered (integrated) onto your custom board. Additionally, it comes with a ready-to-use library for Altium Designer, KiCad, Proteus, and other PCB design software. This predefined object simplifies integration, making it easier to link the module seamlessly into various projects.

✅ Industrial-Grade Performance: Operating temperature: -40°C to +85°C for industrial and outdoor applications. ✅ Long-Term Availability: Guaranteed production support until at least January 2050.
