Wemos D1 Mini Shield - 6-34V Power Converter

Name: Wemos D1 Mini Shield - 6-34V Power Converter
SKU: 38834
Price: 14.99 USD
Availability: InStock

Wemos D1 Mini Shield to power the D1 from a 6-34V input source

Designed by Nils Rodday in Germany

Wemos D1 Mini Shield - 6-34V Power Converter 1

Wemos D1 Mini Shield - 6-34V Power Converter 2

Wemos D1 Mini Shield - 6-34V Power Converter 3

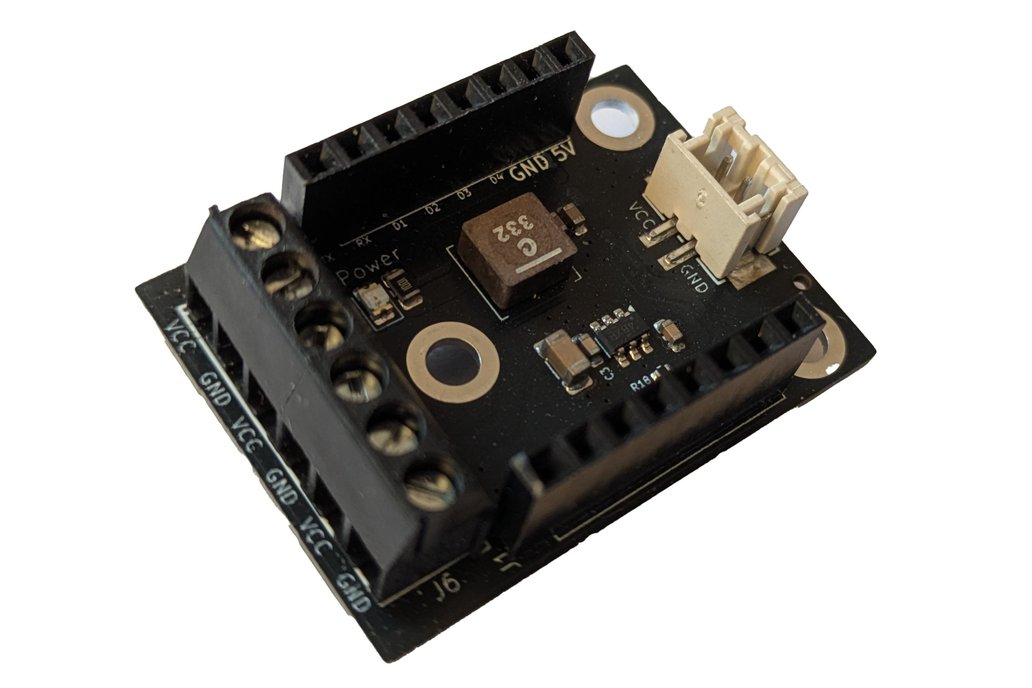

2025-05-25T07:00:08.545Z-PXL_20250525_064656639 copy.jpg



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Wemos D1 Mini Shield to power the D1 from a 6-34V input source

This shield provides 5V input power for the D1 Mini from a wide input power range (6-34V) to 5V. It features a PH2.0 socket and three screw terminals to easily connect the input source and output de…

This shield provides 5V input power for the D1 Mini from a wide input power range (6-34V) to 5V.

It features a PH2.0 socket and three screw terminals to easily connect the input source and output devices. All terminals are interchangeable. For example, you can power the shield with 24V DC and use the remaining connectors to power your sensors or other accessories within your setup with the supplied input voltage from a single power source. The D1 Mini always receives steady 5V.

Please select whether you would like to receive the board with the header pins and screw terminals soldered or not soldered. Not soldered is recommended if you plan to stack boards. If you order the board soldered with the header pins and screw terminals from the pictures it is ready-to-use and does not require any soldering on your side.

Wemos D1 Mini is not included unless selected via the options menu!

This board is compatible to the Misitemita project for easy integration into waterproof junction boxes.
