Description

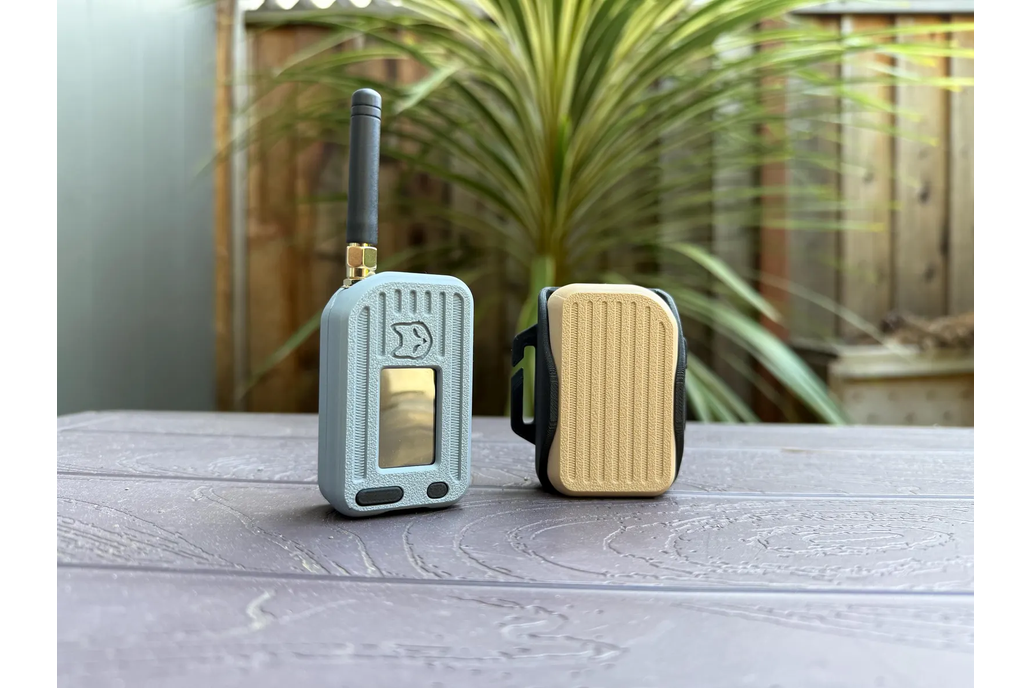

Fully assembled and ready-to-use portable Meshtastic device with LoRa 915MHz, multi-satellite GNSS (GPS) system and 2000mAh capacity flat battery. It charges using the USB-C connector. Tested and flashed with the latest Meshtastic firmware.

Includes (fully assembled):

• Heltec Mesh Node T-114 main board
• Unique and compact 3D printed case (see color options)
• GNSS (GPS) multi-satellite module: (GPS, BeiDou, GLONASS, QZSS)
• Flat battery 2000 mAh
• SMA pigtal connector
• Antenna (see options)
• Carrying case, molle system compatible
• Printed instructions
• The Matsulabs exclusive keychain!

All Features

• Compact case with screen and two buttons: menu and reset button. Size: 2.55 inches x 1.47 inches x 0.98 inches
• Main board: New Heltec Mesh Node T-114 upgraded v2 with LoRa chipset (SX1262) for 915 MHz (902-928MHz band) and Bluetooth 5.0 (MCU nRF52840).
• GNSS (GPS) module: GNSS L76K multi-satellite system (GPS, BeiDou, GLONASS, QZSS)
• Screen: 1.14 inches TFT color screen with 262k colors.
• Battery: Flat type 2000mAh. It features charging by usb-c (type-c usb) with extra battery protection board.
• Antenna:
  • (Pro version whip): SMA connector with external 3dbi whip 17cm antenna
  • (Pro version short): SMA connector with external 3dbi short 7.5cm antenna
  • (Pocket version): Internal 2dbi 8cm antenna

About the main board:

Heltec Mesh Node T114 is a Low Power Consumption development board based on nRF52840 and SX1262, supports LoRa and Bluetooth 5.0.

Printed, sourced, assembled and built by Matsulabs. Case designed by AlleyCat.

Meshtastic is a registered trademark of Meshtastic LLC. No warranty is provided. Use at your own risk.
