LILYGO® TTGO T-Block ESP32 Main Chip WiFi And Bluetooth Compatible Multifunction Module
Designed by Lilygo in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
This is LilyGo Team! Welcome to contact with us to discuss or ask about our products, glad to do business with you.
Hardware Chipset :ESPRESSIF-ESP32 (Wi-Fi & Bluetooth)240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor FLASH:16MB / PSRAM 8MB SRAM : 520 kB SRAM Button: Switch, Reset USB to TTL:CP2104 M…
Read More…Hardware
Chipset :ESPRESSIF-ESP32 (Wi-Fi & Bluetooth)240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASH:16MB / PSRAM 8MB
SRAM : 520 kB SRAM
Button: Switch, Reset
USB to TTL:CP2104
Modular interface:I2C
On-board clock: 40MHz crystal oscillator
Working voltage:2.7V-3.6V
Working temperature range: -40℃ ~ +85℃
Size: 46.474330.44 mm
Weight: 27.40g
Power Supply
Power Supply Input:USB 5V/1A
Charging current:500mA
Battery Input:3.7-4.2V
Battery :3.7V lithium battery
JST Connector:2Pin 1.25mm
USB
Wi-Fi
Standard:FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip)
Protocol:802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
Frequency range:2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power:22dBm
Communication distance:300m
Bluetooth
Protocol:Meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency:With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH Audio frequency CVSD&SBC audio frequency
Software
Wi-Fi Mode:Station/SoftAP/SoftAP+Station/P2P
Security mechanism:WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type:AES/RSA/ECC/SHA
Firmware upgrade:UART download/OTA(Through network/host to download and write firmware)
Software Development:Support cloud server development /SDK for user firmware development
Networking protocol:IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User Configuration:AT + Instruction set, cloud server, android/iOSapp
OS:FreeRTOS
More Information:
Link:https://github.com/Xinyuan-LilyGO/TTGO_TWatch_Library
Product Pin
Product Size
Product Detail
2.T-Block LED top cover

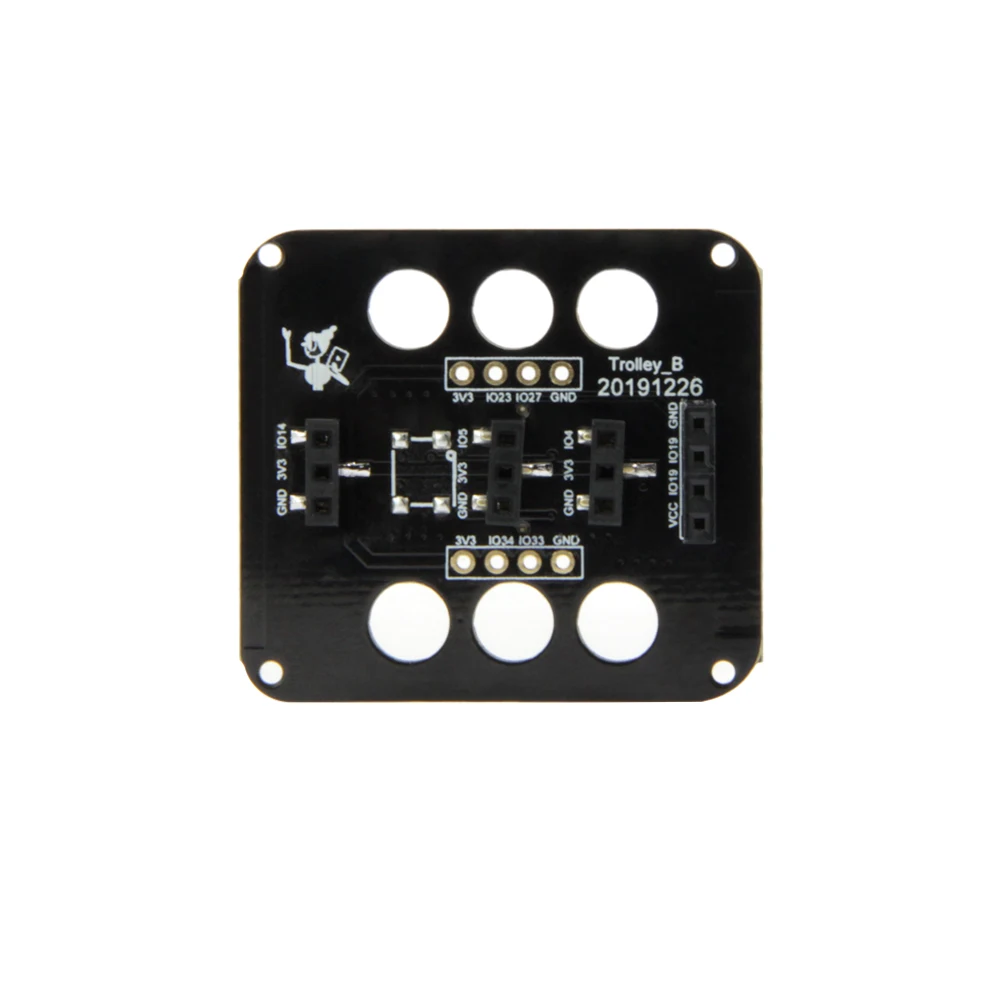

3.Trolley B top cover

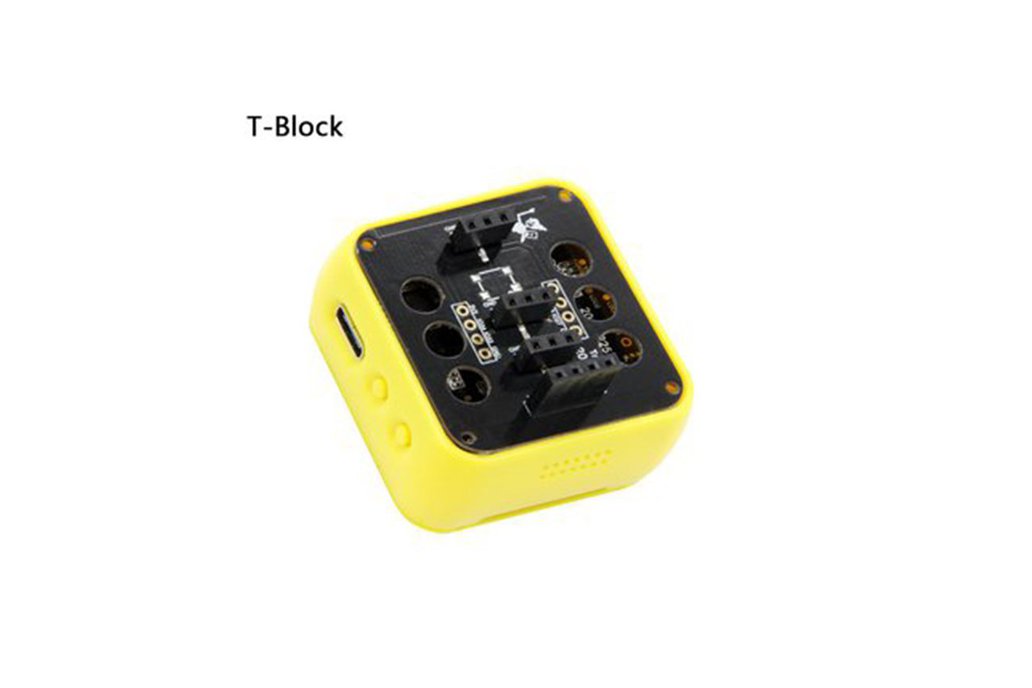

4.T-Block ,Can be used with Arduino's sensor kit
5.T-Block LED
6.T-Block Botton
7.T-Block Botton top cover
Shipping List
1.T-Block Host Option
1 X T-Block Host
1 x Charging Cable
2.T-Block LED top cover Option
1 x T-Block LED top cover
3.Trolley B top cover option
1 x Trolley B top cover
4.T-Block option
1 x T-Block
1 x Charging Cable
5.T-Block LED option
1 x T-Block LED
1 x Charging Cable
6.T-Block Botton option
1 x T-Block Botton
1 x Charging Cable
7.LED Cover option
1 x T-Block Botton top cover
