DFPlayer Mini Board. Blank PCB or Assembled

Technical Details

• Dimensions: 44.5 x 31 mm
• Supports either SOIC8 or DIP8 ATTiny85 package
• ICSP Programming Interface
• DFPlayer or MP3-TF-16P MP3 module
• ATTiny connected to DFP serial TX/RX or RX/Busy
• Cut away volume switch board.
  • Volume up/down switches on the board, can be removed if not needed or relocated.
• Pin connections for:
  • 3 spare ATTiny input/outputs
  • DFP Volume Up/Down, IO, ADKEY
  • DAC R/L
  • Speaker
  • 5v regulator for using other voltage supply's

Description

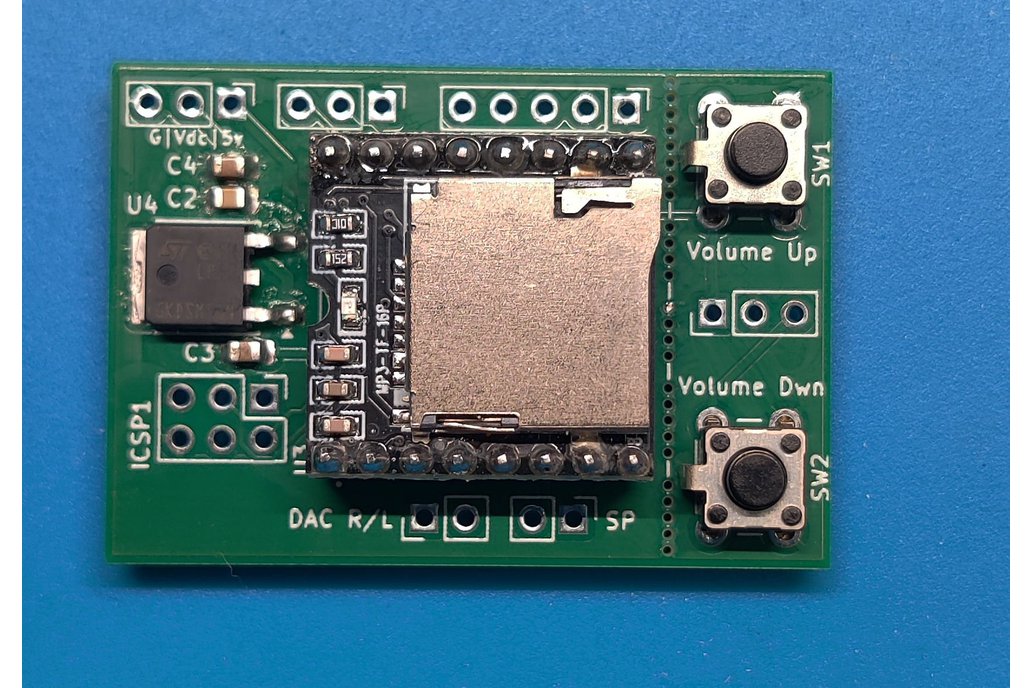

The DFPlayer board is a small compact self contained module with an ATTiny 85 controller, voltage regulator and volume switches. It is great for adding audio to scale model projects, Halloween displays or anything else you can think of.

Two of the ATtiny IO lines are used for interfacing with the DFPlayer. You can use a full serial connection or just send commands to the DFPlayer and monitor the busy line. This leaves pins 2,6, and 7 for external IO to further control the DFPlayer.

Additional IO connections for the DFPlayer include IO, ADKEY, Volume Up/Down (Using the IO pins), DAC L/R and a Speaker connection. Connections can be soldered to the board or 0.1" headers can be used.

A schematic is available along with a Bill of Materials (BOM).

Check out the documentation link for more details.

Purchase Options

Blank PCB is the default

• Optional assembled PCB with ATTiny85, MP3-TF-16P MP3 Module, 5v regulator. (Speaker and SD card are not included)
• Optional kit with ATTiny85, MP3-TF-16P MP3 Module, 5v regulator. (Speaker and SD card are not included) Voltage regulator requires 6-16VDC input or you can provide your own 5VDC source.

Check out the Arduino UPDI 6-pin Programming Cable (Soft Touch) for programming this board.
