1.Description:

It is a wireless dimming controller.The dimming function of this product only supports resistive loads.For example,other loads such as energy-saving lamps can only be turned on or off,not dimming.

2.Feature:

• Its remote control distance is long.
• It can pair and record 10 remote controls.
• It has a manual switch trigger port KEY.
• It has short-press to control on and off,long-press to control dimming function.
• It supports resistive loads such as LED lamps,incandescent lamps,and tungsten lamps.

3.Parameter:

• Product Name:Wireless Dimming Controller
• Product Numbering:YS-RFDM-12V
• Supply Voltage:DC 12V
• Stand-by Current:13mA
• Output Voltage:DC 12V
• Output Current:8A(Max)
• Wireless Frequency:433Mhz
• Supported Remote Controller Chips:2260,2262,2240,2264,1527,1520,SMC918,FP527 ending chips
• Supported Remote Control Oscillation Resistance Range:1.8M-5.6M (1527 range 170K-910K)
• Dimming Function Applicable to Lamps:LED lamps,incandescent lamps,tungsten filament lamps and other resistive load lamps
• Work Temperature:-25℃~85℃
• Work Humidity:5%~95%RH
• Size:703622mm

4.Pairing Remote Control Method:

• Enter the pairing state by controlling the power of the dimmer to be turned on and off 3 times continuously.
• Power on the dimmer for 1 second and then power off for 1 second,power on for 1 second and power off for 1 second,power on for 1 second and power off for 1 second,then power on again,the indicator light is always on or the lamp flashes 2 times,it means it has been Enter the pairing state.
• Press the button on the remote control for 1 second,and the indicator light flashes twice,which means that the pairing is complete.
• At this time,press the remote control to verify whether the remote control is paired successfully.If you need to pair again with other remote controls,the operation method is the same.

5.Clear Remote Control Method:

• Clear the remote control to prevent the remote control from controlling the dimmer.
• Power on the dimmer for 1 second and then power off for 1 second,and then power it on after 6 cycles.When the indicator light flashes 3 times,it means that all the records of the previously paired remote control are cleared.

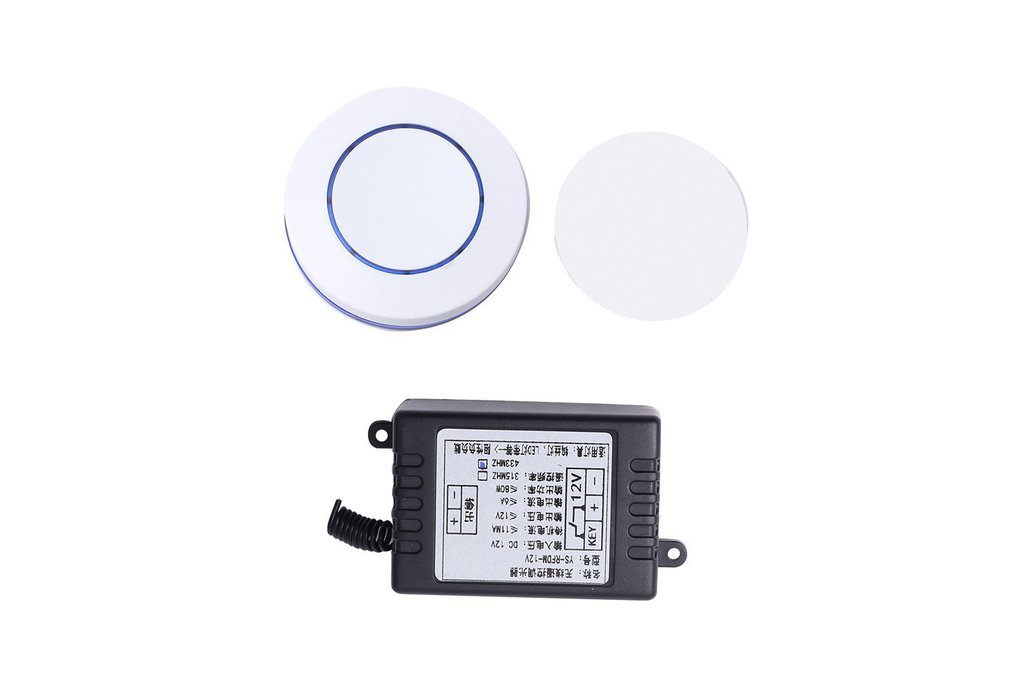

6.Package:

• 1pcs Wireless Dimming Controller
• 1pcs 433Mhz Round Remote
