978 MHz UAT ADS-B Bandpass Filter

Band Pass Filter for 978 MHz ADS-B and UAT Bands

Designed by GPIO Labs in Canada

This seller is taking a break until May 17, 2025. Sign up below to get an email when they're back!

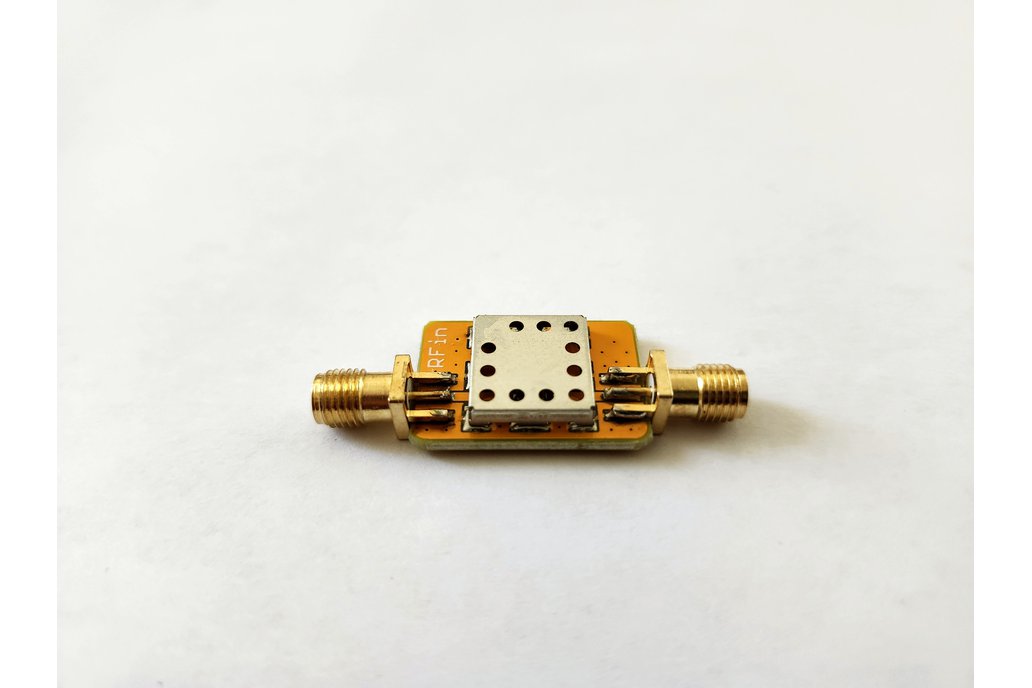

978 MHz UAT ADS-B Bandpass Filter 1

978 MHz UAT ADS-B Bandpass Filter 2

978 MHz UAT ADS-B Bandpass Filter 3

978 MHz UAT ADS-B Bandpass Filter 4

978 MHz UAT ADS-B Bandpass Filter 5

978 MHz UAT ADS-B Bandpass Filter 6

978 MHz UAT ADS-B Bandpass Filter 7




2025-04-02T11:37:31.190Z-Filter Specs.png

2025-04-02T11:56:35.694Z-Filter Specs (1).png

2025-04-02T11:56:35.694Z-Filter Specs (3).png

2025-04-02T11:56:35.694Z-Filter Specs (2).png

$51.00

On A Break

Sign up and we'll send a reminder when the seller returns!

Band Pass Filter for 978 MHz ADS-B and UAT Bands

PRODUCT OVERVIEW This is a small, cost-effective ADS-B band pass filter centered at 978 MHz and a typical insertion loss of less than 3 dB in the pass band. This filter has excellent rejection specif…

Read More…

PRODUCT OVERVIEW

This is a small, cost-effective ADS-B band pass filter centered at 978 MHz and a typical insertion loss of less than 3 dB in the pass band. This filter has excellent rejection specifications and provides power handling of up to a maximum +10 dBm and has an operating temperature range of -40C to +85C.

APPLICATIONS

Rejection of strong signals in FM, Cellular, LTE, UHF bands

SPECIFICATIONS

Passband

978 +/- 2 MHz

Frequency ------ Attenuation

50 MHz - 300 MHz ------ 60 dB

300 MHz - 600 MHz ------ 45 dB

600 MHz - 900 MHz ------ 40 dB

978 MHz ------ 2.5 dB

1000 - 1500 ------ 40 dB

1500 - 2000 MHz ------ 33 dB

NOTES

The filter uses SMA-F PCB edge mount connectors.
Maximum RF input signal Level: +10 dBm
Max DC voltage 3 VDC
