PRODUCT OVERVIEW

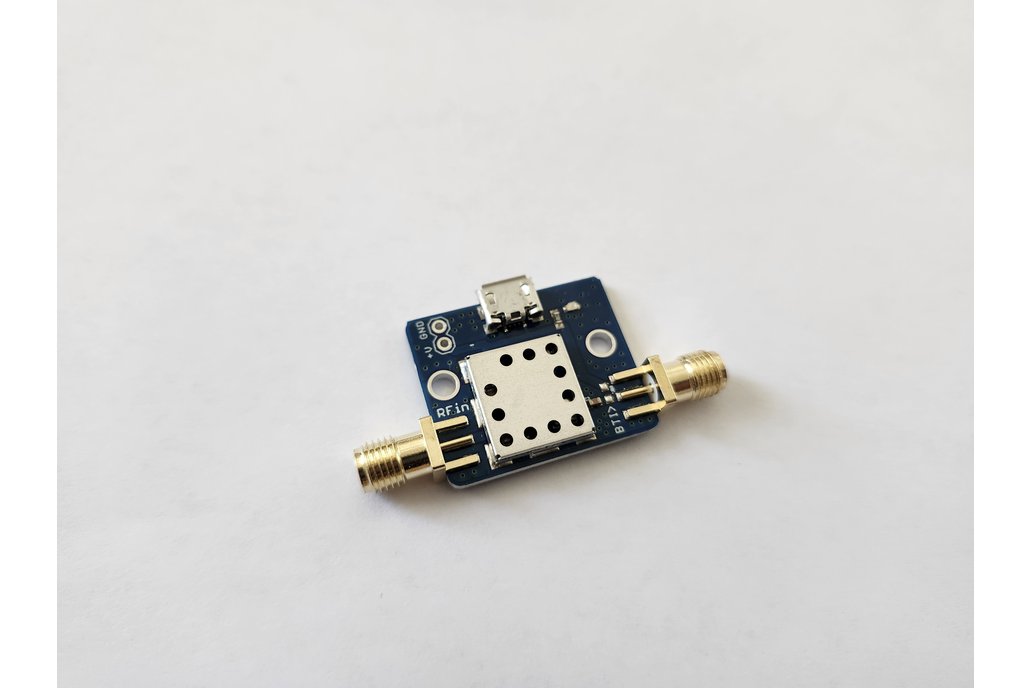

This is a small, Filtered ADS-B UAT Low Noise Amplifier that covers 978 MHz band with a typical gain of 15 dB in the pass band and Noise Figure of 1 dB.

This product has excellent out-of-band rejection specifications, provides power handling of up to a maximum +10 dBm and has an operating temperature range of -40C to +85C.

FEATURES

• USB powered
• Includes Place holder for Bias Tee inductor so you can power this LNA remotely.
• LNA can also be powered using a DC supply with a wide voltage range from +3.3 VDC to +20 VDC
• Low current consumption 30 mA

APPLICATIONS

978 MHz signal reception in a weak signal environment Rejection of strong signals in Cellular, LTE, UHF and 915 MHz, 2.4 GHz ISM bands UAT / ADS-B signal processing

SPECIFICATIONS

FREQUENCY (MHz) ...... GAIN (dB)

100 ...... -45

200 ...... -45

400 ...... -30

600 ...... -25

700 ...... -25

900 ...... -20

978 ...... 15

1000 ...... -20

2000 ...... -24

Maximum RF Input Power

+10 dBm

This filter uses SMA-F connectors
