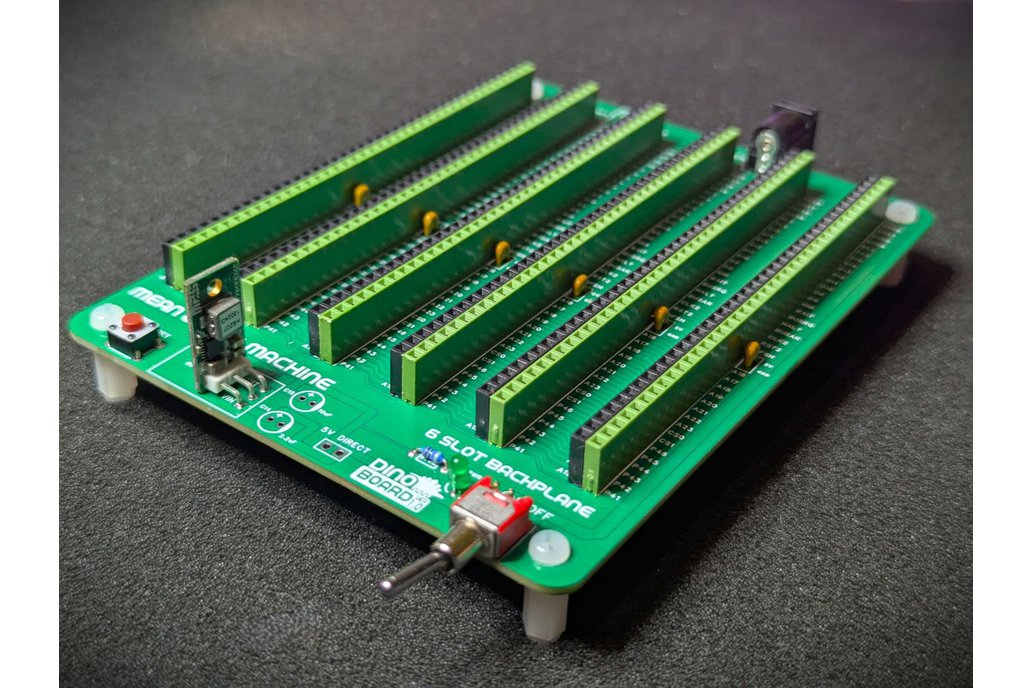

A standard 80-way RCBus/RC2014 compatible backplane.

Suitable for the Green Machine Series of kits.

Key features

• Onboard 5V DC converter
• Onboard switch and power-on LED
• Onboard system reset switch
• Single ground plane for maximum signal integrity
• Optional bypass support for direct 5V powering
• Screw terminal for external 5V output
• RCBus and RC2014 compatibility

What is the Green Machine Series of Retro Kits

The Green Machine Series of kits are designed around the RCBus/RC2014 bus, powered by an eZ80 CPU (as apposed to the Z80 CPU), and are broadly compatible with many RC2014 and RCBus kits and CP/M and RomWBW software stacks.

For more information of the eZ80 CPU, see the eZ80 CPU kit.

FAQ

Can I use other backplanes - do I have to use this one for an eZ80 build?

You can use any RCBus compatible backplane that supports all 80 bus lines. You can even use non-green ones! Just make sure it has the full 80 lanes (2x40 pin headers)

Bill of Materials

The following items will be included in your kit.

Disclaimer

Please note that this is a kit, produced by a non-expert (me) for hackers, DIYers' and retro lovers, to tinker with. Please exercise caution and follow good safety practices. You will be working with sharp knives, a hot soldering iron, and small metal components. Be mindful of the risks involved in the build process. I will do my best to answer any questions you may have.

This kit is provided as-is, with no guarantees or warranties. By assembling and using this kit, you acknowledge that you do so at your own risk.
