Flippermeister V2

Name: Flippermeister V2
SKU: 33725
Price: 90.00 USD
Availability: InStock

UHF-RFID board with 2 onboard sam slots and SPI and ICSP headers

Designed by Digits' e-Lab in France

$90.00

Quantity*

+ —

SAM slots*

Sam slot options. NOTE: If you choose [ No Slots Soldered ] , I will need to rework the board to remove Slot 2. That means leftover solder on the pads, more work, and a slightly longer shipping delay.

Extra YRM1001 Cable*

add in a short YRM1001 cable to remove all that cable slack for a cleaner look and better case fitment

Case*

Get a 3D printed case to protect your flippermeister!

Want a UHF inlay?

This is just a normal UHF inlay, containing an Alien H9 chip

want an *LED* UHF inlay?

These inlays chave an LED on them that you can activate by issuing a 1-word Read command to Reserved memory bank (00), word pointer 4 (0000 0100).

Still hungry for another UHF tag? (Alien H3 + Mifare Classic 1k)

this is a credit-card format card in white PVC, containing both an Alien H3 tag and a Mifare Classic 1K NFC chip.

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

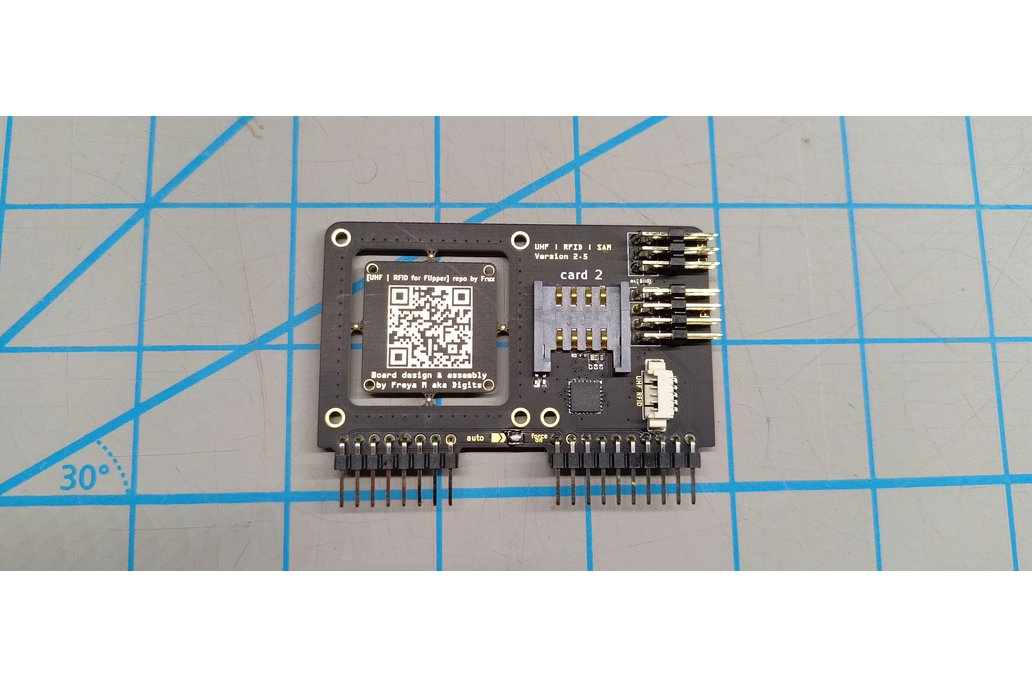

UHF-RFID board with 2 onboard sam slots and SPI and ICSP headers

FLIPPERmeister This Flipper add-on will let you plug a UHF reader module like the YRM1001* to enable you to read and write UHF tags! Not only that, but it also enables you to use up to two SAM cards/…

FLIPPERmeister

This Flipper add-on will let you plug a UHF reader module like the YRM1001* to enable you to read and write UHF tags!

Not only that, but it also enables you to use up to two SAM cards/chips thanks to the onboard SEC1210 controller!

And in case that wasn't enough, there's also easily accessible SPI and ICSP headers, to facilitate interfacing with various systems!

For those more technically savvy, there are also pads to solder the SAM chip directly on the board (instead of using a SAM card) under each SAM card slots, so be sure to choose the option you want in the drop-down menu. by default, only slot 2 (top of the board, facing you when plugged in your flipper) is populated, Slot 1 is left empty.

Thanks to Frux and Bettse for making the [UHF | RFID for flipper zero] and [Seader] repos respectively.

CASES

If you want to get a case to protect your Flippermeister, you're in the right place to get it! Default available option is black printed on a starry holographic sheet, but other options are available on request depending on what filaments I have on hand, just shoot me a dm to get a list of the colors/materials I have right now!

(You may also request colors/materials I don't have on hand, but it might incur an extra charge and extra wait time depending on availability and/or ease of procurement Printing on a textured pei plate is available on request at no extra charge in case you don't like shiny things.)

Cases are sold with inserts installed, and four screws. /!\ Cases sold with this version are not compatible with the V1 boards sold previously, some component and layout changes required a new case design. /!\

/!\
The UHF module is NOT included. this listing is for the board only, you will have to buy your own reader module, either from aliexpress, the M5 stack UHF reader, or any other module you find that will work with this board.
SAM card(s) and/or chip(s) are also not included, and are only required for the Seader app, not the UHF app. What you will get is a board populated with soldered down components. Any removable accessories/components, you will have to provide yourself.
/!\

*Yanpodo is the seller I and several others have used to source our UHF modules, you want to choose YRM1001 (1dBi 25x35) if you want the module that will fit inside the cutout

if you have any questions, don't hesitate to click that [contact seller] button! All electronic products come packaged in anti-static zip-lock bags.
All products are tested during and after assembly
