MIDI8d Plus

Name: MIDI8d Plus
SKU: 34542
Price: 29.00 USD
Availability: InStock
Rating: 3.75 (1 reviews)

(1 Review)

MIDI to 4 analog and 4 digital outputs

Designed by David Haillant's Electronic stuff in France

2024-05-05T15:46:47.083Z-2024-01-22 10.40.46.jpg

2024-05-05T15:46:47.083Z-2024-01-22 10.40.29.jpg

2024-05-05T15:46:47.083Z-2024-01-22 10.40.09.jpg

2024-05-05T15:46:47.083Z-2024-01-22 10.42.41.jpg

2024-05-05T15:46:47.083Z-2024-01-22 10.41.36.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

MIDI to 4 analog and 4 digital outputs

What is it? The MIDI8d Plus is a 4HP wide, simple and versatile Eurorack module that can output 4 Digital gates and 4 PWM analog CV, from a MIDI TRS input connection. MIDI8d+ is an upgrade from MIDI8…

What is it?

The MIDI8d Plus is a 4HP wide, simple and versatile Eurorack module that can output 4 Digital gates and 4 PWM analog CV, from a MIDI TRS input connection.

MIDI8d+ is an upgrade from MIDI8d. 4 digital gates have been transformed to filtered and buffered PWM outputs. 3 outputs have 8-bit resolution, while output #5 is 16-bit resolution.

The firmwares are compatible between MIDI8d and MIDI8d+ But, due to the filtering network to remove artefacts from the PWM signals, the 4 analog outputs are slightly slower than the pure 4 digital ones.

If you only need fast rise, digital outputs I recommend using MIDI8d.

The core of the MIDI8d+ is the classic Arduino Nano (not included).

Different firmwares (Arduino sketches) can be uploaded into the Arduino, to adapt or completely change the behaviour of the MIDI8d+.

Typical uses are:

8 Drums outputs, reacting to MIDI Channel 10 (notes 36 to 43)
MIDI Clock ticks, with various time divisions and Start/Stop Gate outputs
MIDI to CV converter
and many more!

Open source firmwares can be found here: https://github.com/dhaillant/midi8d/

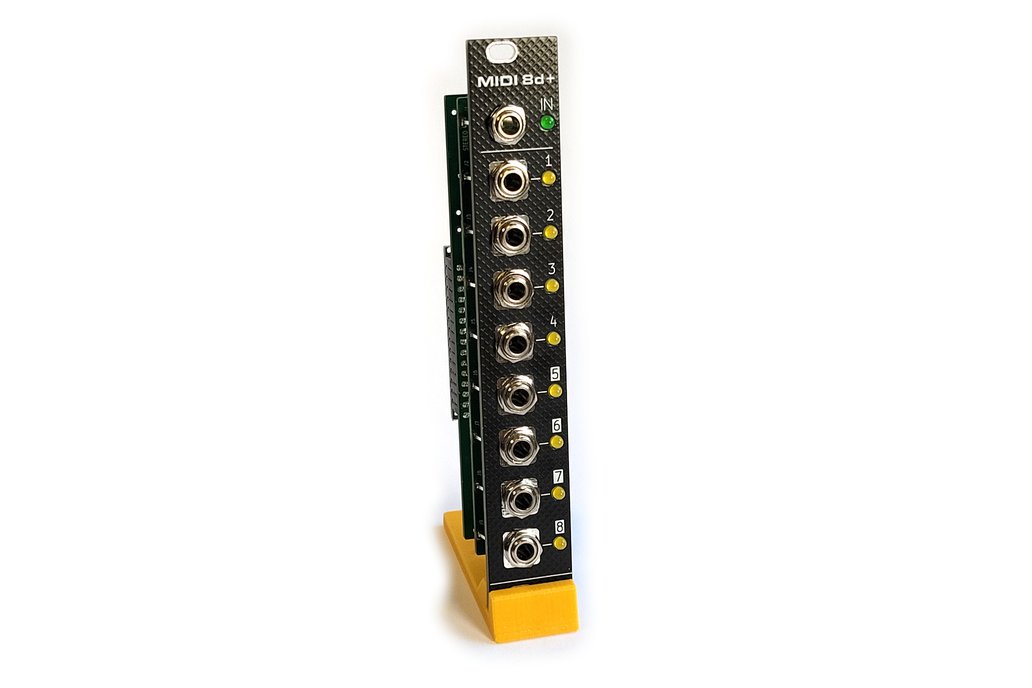

The module is made of 2 PCBs:

the Front PCB supporting all the jack connectors
the Rear PCB supporting the Arduino Nano and the power input.

The MIDI input jack is a Stereo (TRS type A) connector.

The boards come with pre-assembled SMD components. The only remaining components to solder are classic Through Hole.

Schematics and documentation can be found at https://www.davidhaillant.com/midi-8dp-midi-to-4-analog-and-4-digital-outputs/
