ESP32-S3 AMOLED Display Breakout Board

Name: ESP32-S3 AMOLED Display Breakout Board
SKU: 40560
Price: 45.00 USD
Availability: InStock

This is a breakout board for MakerFabs ESP32-S3 AMOLED Module

Designed by CNJ Boards in Canada

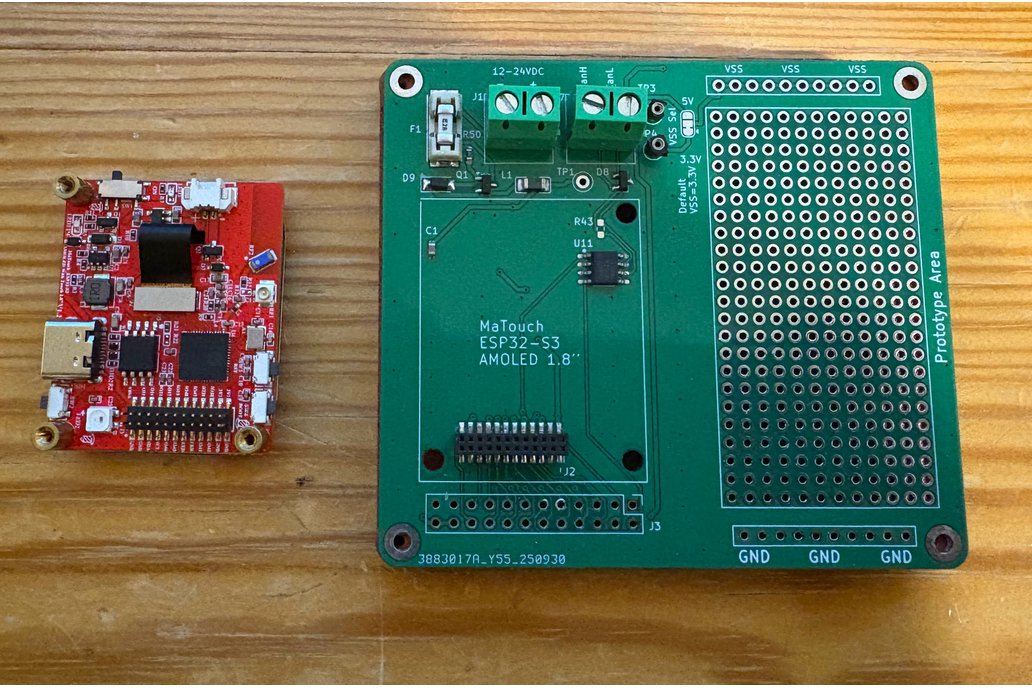

ESP32-S3 AMOLED Display Breakout Board 1

ESP32-S3 AMOLED Display Breakout Board 2

ESP32-S3 AMOLED Display Breakout Board 3

ESP32-S3 AMOLED Display Breakout Board 4

ESP32-S3 AMOLED Display Breakout Board 5

ESP32-S3 AMOLED Display Breakout Board 6

ESP32-S3 AMOLED Display Breakout Board 7

ESP32-S3 AMOLED Display Breakout Board 8

2025-11-09T22:43:25.230Z-IMG_0498 (1).jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

This is a breakout board for MakerFabs ESP32-S3 AMOLED Module

Hardware: This is a prototyping board for the makerfabs 1.8" ESP32-S3 AMOLED display module. It includes a 12-24V stepdown supply to power the module with 5V. Optionally a 3.3V regulator may be added to supplement the modules 3.3V supply. The board also comes with an integrated Can Bus tranciever. This board may be directly connected to any marine/automotive system with 4 wires (Gmd, 12V, CanH, CanL). It is inteneded to provide a polished protyping platform for development activity. A 3D printed mounting board is included and an optional 3D printed case is also available. It may be purchased with or without the Makerfabs AMOLED module.

Software: A PlatformIO/ESP-IDF project is available on Github. The software demostrates LVGL V9.3 graphics, TWAI/CanBus communications and a touchscreen interface.

Features:

provides a protyping area for user circuits
All 20 pins from the AMOLED module header are routed to a 2 x 20 .1" header footprint.
On board 12-24V -> 5V DC Buck convertor via board edge screw terminals, reverse polarity protected
Optional on board 5V - 3.3V regulator for additional power to project circuits
On Board CanBus transciever via board edge screw terminals or optional UAV Can connector
