ATTINY x7 Breakout

Name: ATTINY x7 Breakout
SKU: 27292
Price: 8.00 USD
Availability: InStock

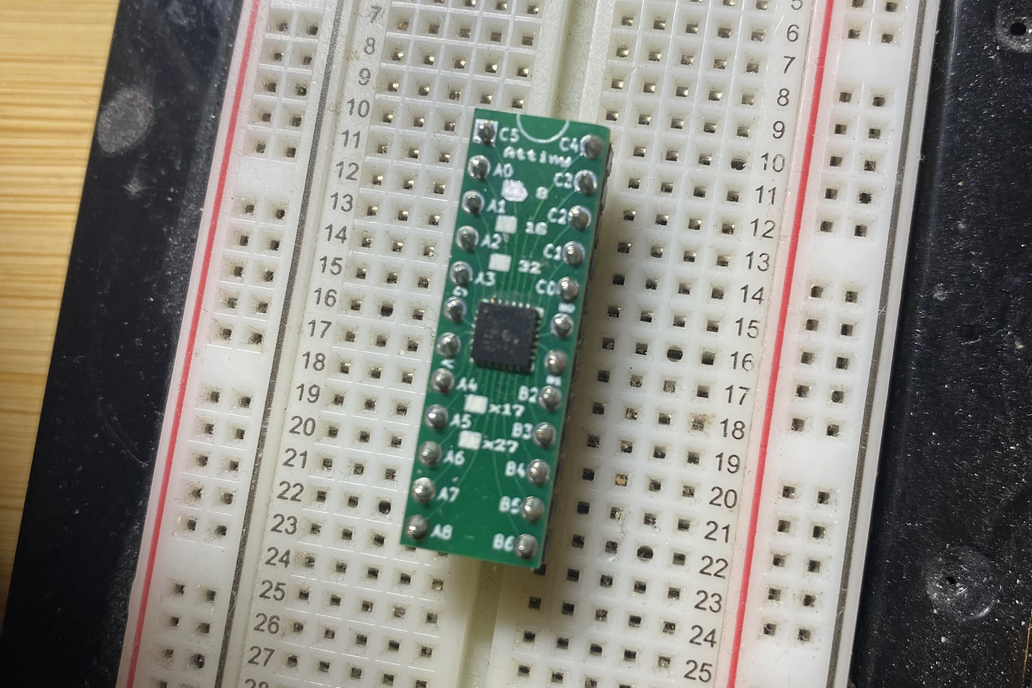

Simple Breakout for VQFN-24 package Attiny 1 and 2 series.

Designed by Chipperdoodles Chippydootles in United States of America

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Desk clear out!! Listing an assortment of dev boards on the flea market to help clear out some space and raise a lil project money!

Simple Breakout for VQFN-24 package Attiny 1 and 2 series.

What is it? I've been having fun with these chips and some extra quantity of 2 series chips that wasn't going to use so I made these little dip sized pcb breakout boards so those interested can play …

What is it?

I've been having fun with these chips and some extra quantity of 2 series chips that wasn't going to use so I made these little dip sized pcb breakout boards so those interested can play around with them.

These are specifically meant to be bare bones, no assumption about power input, programming sett up and pin selection to lend them selves to more flexible prototyping.

options available right now are the ATTINY 827 and 3227, 8 and 32 representing their program size in Kilobytes. make sure to select the one you want! Headers are pre soldered. For programming I'm also selling uart -> udpi adapters for ftdi style usb-uarts which can turn them into udpi programers.

For board revision 1 (boards labeled 2022) there's a silk screen error. The pin labeled A8 is actually Pin B7.
