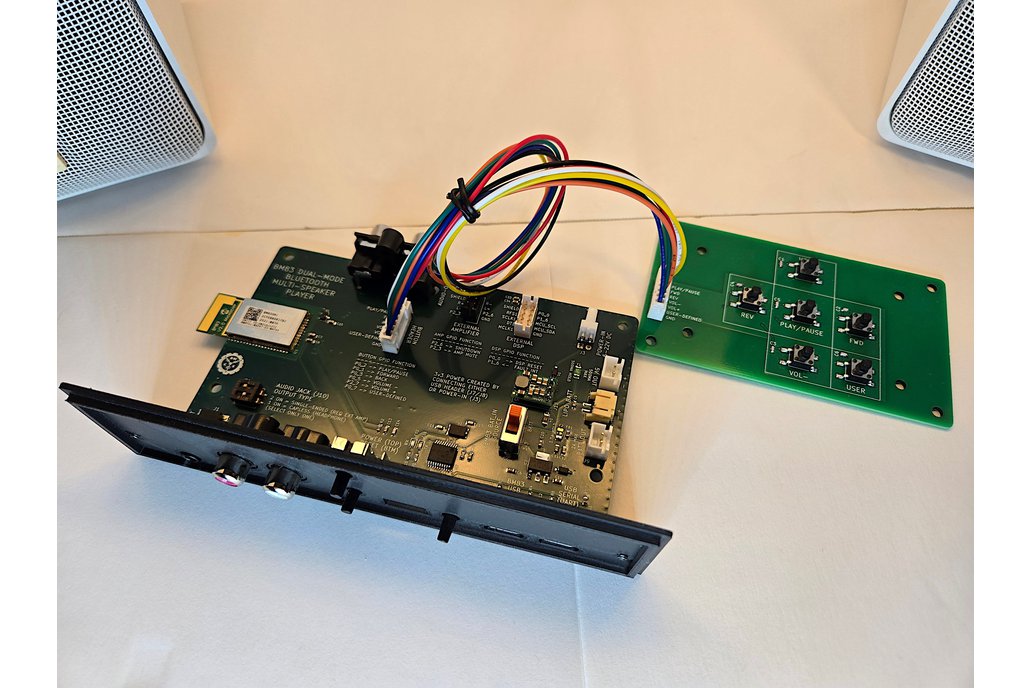

This is the new Bluetooth Multi-Speaker Player module from BurgessWorld Custom Electronics. It is the latest in a line of Bluetooth audio products based on the Microchip BM83 Dual-mode Bluetooth SOC.

This Player module is part of a new line of turn-key Bluetooth solutions designed to shorten development time for custom Multi-Speaker Bluetooth systems.

The Player module can be used as a stand-alone Bluetooth receiver for playing audio from paired Bluetooth sources such as phones, PCs, tablets, or can be paired with other Player module to create an audio mesh using Microchip's Wireless Concert Technology software.

Multiple Player modules can also be paired to the Bluetooth Master Controller available COMING SOON. The Multi-Speaker Player module is cost-reduced with audio-out connections only. You only need a single Master controller to stream audio to an almost unlimited number of Player modules.

For more information on capabilities of the BM83 Bluetooth SOC and Wireless Concert Technology, see Microchip documentation found HERE

This module contains all of the critical components required to be integrated into your Multi-Speaker designs and fully supports all of Microchip's Wireless Concert Technology protocols and applications. The design is based on industry best-practices and Microchip design guidelines.

Note: This controller does NOT contain an amplifier, but does support headphone-out natively. It is designed to connect directly to an external amplifier via stereo RCA output jacks or header J16, or to an external DSP via header J15 for maximum flexibility.

Purchase of this controller includes choice of one of 2 external button boards.

Supported Functionality:

AUDIO INPUT/OUTPUTS

• Stereo Audio out via 3.5mm jack J1, configurable as capless (headphone) or single-ended
• Stereo Audio out via multiple RCA jacks at J2 and J12 (single-ended)
• External Amplifier connection at header J11 with shutdown and mute functions via GPIO
• Configurable internal DSP or connection to external I2S DSP via header J10

CONTROL MODES

• Embedded Mode (no external MCU required)
• Firmware and DSP control via USB-C connector J7 using Microchip SPKCommandSetTool
• Firmware update via direct connection at USB-C connector J7 using Microchip Isupdate tool
• Firmware update in Test Mode using onboard USB-SERIAL via USB-C connector J8 using Microchip Isupdate tool
• Firmware update over-the-air (OTA) support
• Fully-configurable firmware via Microchip ConfigGUITool

FIRMWARE SUPPORT

• Supports latest Microchip BM83 and DSP firmwares
• Multi-Speaker Firmware
• Audio Transceiver Firmware (in Target/Slave mode)

POWER OPTIONS

• LiPO Battery J4, includes battery status reporting and charging with configurable profiles
• External 5-22V via header J3 with reverse-voltage protection
• Ultra-clean onboard 5V switching regulator @1A output
• Onboard 3v3 Linear regulator @1A output
• USB power via either USB-C connector J7/J8
• BM83 power source selector - battery or 3v3
• 5V power output for powering DSP or amplifier logic via connector J5 (500MA MAX output)
• Battery output via connector J9 (2A MAX output)

PHYSICAL CONTROLS

• Power and Reset buttons (S2)
• 2 options for external button boards with 5 Pre-defined buttons (user-reconfigurable) and 1 user-defined button (J6)
• Test Button (S3)
• Audio-Jack (J1) output type (S1)
• BM83 BATT_IN Source Selection (S4)

INDICATORS

• LED 1 - Blue
• LED 2 - Yellow
• USB-SERIAL TX/RX LEDs (yellow)

INCLUDED

• Cable for button board(s)
• mating connectors pre-assembled with tinned wires for all other connectors
• 3-D printed faceplate with mounting hardware
