Arduino/Raspberry Pi Compatible, 5V logic-level, 3-pin control with current sensing, can be slaved together for synchronous motor controlDesigned by BurgessWorld Custom Electronics in United States of America

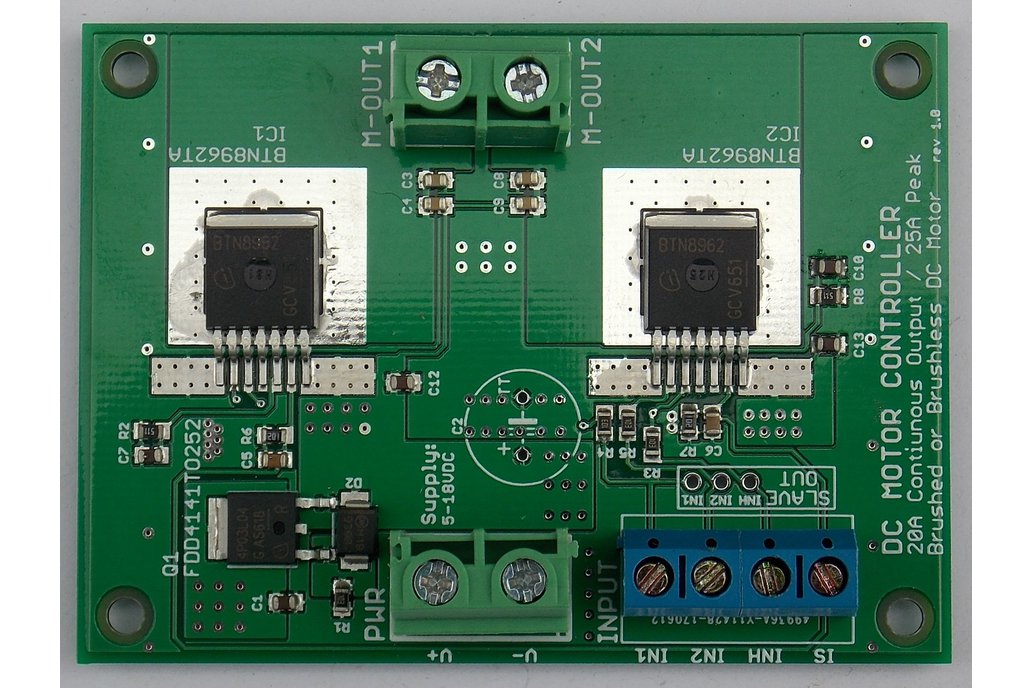

20A Continuous power full H-bridge DC Motor Controller This motor controller has been updated to include: Power LED Direction LEDs 2 Aluminium Heatsinks Dedicated GND Connection for MicroController …Read More…
20A Continuous power full H-bridge DC Motor Controller
This motor controller has been updated to include:
Based on the BTN8962TA half H-bridge IC: Datasheet
Micro-controller compatible: Arduino, Teensy, PIC, NodeMCU, etc
SOC compatible: Raspberry PI, Beaglebone, Orange Pi, Banana Pi. ect
Easy, 3-pin PWM control for FORWARD, REVERSE, FREEWHEEL, BRAKE
Control with 2 PWM pins and 1 digital IO pin
Multiple Motor Controllers can be slaved together to control multiple motors with just 3 pins.
Current-sense pin for input to micro-controller or SOC to track current usage
This board ships with headers unsoldered. You can elect to have the board shipped to you fully-assembled by selecting the assembly option on the right.
In the package
You can find an example Arduino sketch to put the motor controller through its paces on my Github account HERE
If using a Raspberry Pi, you can use the pigpio library to generate the required PWM signals on the GPIO pins of your choice. If you prefer a hardware-based PWM solution for the rPi, there are several easy-to-use options available, such as this , or this, or even these
