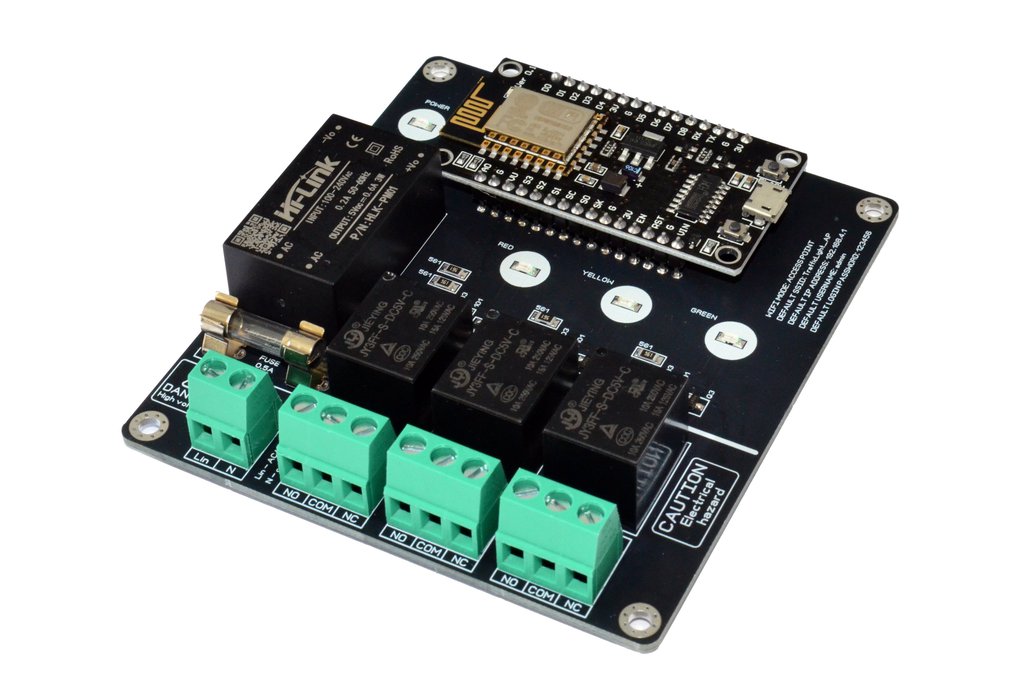

WIFI EMR Traffic Light Controller 10Amps

Name: WIFI EMR Traffic Light Controller 10Amps
SKU: 39004
Price: 22.95 USD
Availability: InStock

WIFI EMR Traffic Light Controller with integrated webpage for programming 110V 220V 10Amps

Designed by KRIDA Electronics in Latvia

WIFI EMR Traffic Light Controller 10Amps 1

WIFI EMR Traffic Light Controller 10Amps 2

WIFI EMR Traffic Light Controller 10Amps 3

WIFI EMR Traffic Light Controller 10Amps 4

WIFI EMR Traffic Light Controller 10Amps 5

WIFI EMR Traffic Light Controller 10Amps 6

WIFI EMR Traffic Light Controller 10Amps 7

WIFI EMR Traffic Light Controller 10Amps 8

WIFI EMR Traffic Light Controller 10Amps 9

WIFI EMR Traffic Light Controller 10Amps 10

WIFI EMR Traffic Light Controller 10Amps 11

WIFI EMR Traffic Light Controller 10Amps 12

WIFI EMR Traffic Light Controller 10Amps 13

WIFI EMR Traffic Light Controller 10Amps 14

WIFI EMR Traffic Light Controller 10Amps 15

WIFI EMR Traffic Light Controller 10Amps 16








Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

For any question you can contact me directly via WhatsApp: +37126784872

WIFI EMR Traffic Light Controller with integrated webpage for programming 110V 220V 10Amps

Wi-Fi 3 Channel Controller for Traffic Lights Manager Controllable by WiFi / ESP8266 Electro Magnetic Relays technology Description: Upgrade your Light Controller management with our Smart Wi-Fi L…

Wi-Fi 3 Channel Controller for Traffic Lights Manager Controllable by WiFi / ESP8266

Electro Magnetic Relays technology

Description:

Upgrade your Light Controller management with our Smart Wi-Fi Light Controller Sequencer, designed for effortless control and setup. This innovative Sequencer features an integrated webpage for easy configuration, making it user-friendly and accessible to anyone, with no programming skills required. Take charge of your lights like never before – it's as simple as playing with toy blocks. You can even create eye-catching flashing and railroad crossing effects with this device.

Efficient Power:

This device operates on standard AC voltage and conveniently shares the same input with your AC load or lights. A single AC input powers both the Sequencer board and your lights, eliminating the need for additional connections.

Steps to Control Your Lights:

Power the device with 110-240 AC volts.
Wait for 10 seconds until the Wi-Fi name appears in your device's discoverable Wi-Fi network.
Select the "Light_AP" access point from your settings.
Type the IP address of this Sequencer from your manual into your web browser.
Enter your credentials from the manual.
You will see default settings on your browser.
Now, you can add/remove/edit Light Controller sequences and timing in your Sequencer.

Device Specifications:

PCB Board Dimensions: 90mm x 100mm x 30mm (black color)
PCB Board Material: 1.6mm FR-4 with solder mask & silk screen
Input and Output Connectors: Type KF-128, 14-26AWG, 250VAC @ 16A screw terminals
Safety Fuse for AC Input 0.5A
Operating Temperature: -40°C to +70°C
Secure Web Page Access: Requires USERNAME and PASSWORD
Integrated Web Page for Timing Programming
Compatible with Windows, Ubuntu, Android, iOS, and other operating systems

Additional Technical Information:

Universal Input Voltage Range: 100-240VAC / 50-60Hz, 6W maximum per module. Load type – resistive. Compatible with incandescent lamps, LED lamps, LED dimmable lamps, fluorescent lamps, and more.
Wi-Fi Sequencer: ESP8266 chip, 2.4GHz 802.11 b/g/n Wi-Fi operation mode – access point Launch distance: 150 meters (open space)
LED Indicators for Lights: RED, YELLOW, and GREEN colors. Power LED indicator
Current load per channel: 10 Amps long-term Enhance your Light Controller management system with our Smart Wi-Fi Light Controller Sequencer. Enjoy the convenience of easy configuration, remote control, and versatile lighting effects. For more information and resources, please contact us via the messaging system. Upgrade your management today!

Usermanual - https://drive.google.com/file/d/1Kqy9vj1lejfTka8hK4UozMiQpg2bD6x6/view?usp=sharing
