Traffic Light Controller for Manual Programming EM

Name: Traffic Light Controller for Manual Programming EM
SKU: 38941
Price: 22.95 USD
Availability: InStock

Traffic Light Controller for Manual Programming 37+ modes 10Amps 110V/220V Electro Magnetic Relay

Designed by KRIDA Electronics in Latvia

Traffic Light Controller for Manual Programming EM 1

Traffic Light Controller for Manual Programming EM 2

Traffic Light Controller for Manual Programming EM 3

Traffic Light Controller for Manual Programming EM 4

Traffic Light Controller for Manual Programming EM 5

Traffic Light Controller for Manual Programming EM 6

Traffic Light Controller for Manual Programming EM 7

Traffic Light Controller for Manual Programming EM 8

Traffic Light Controller for Manual Programming EM 9

Traffic Light Controller for Manual Programming EM 10

Traffic Light Controller for Manual Programming EM 11

Traffic Light Controller for Manual Programming EM 12



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

For any question you can contact me directly via WhatsApp: +37126784872

Traffic Light Controller for Manual Programming 37+ modes 10Amps 110V/220V Electro Magnetic Relay

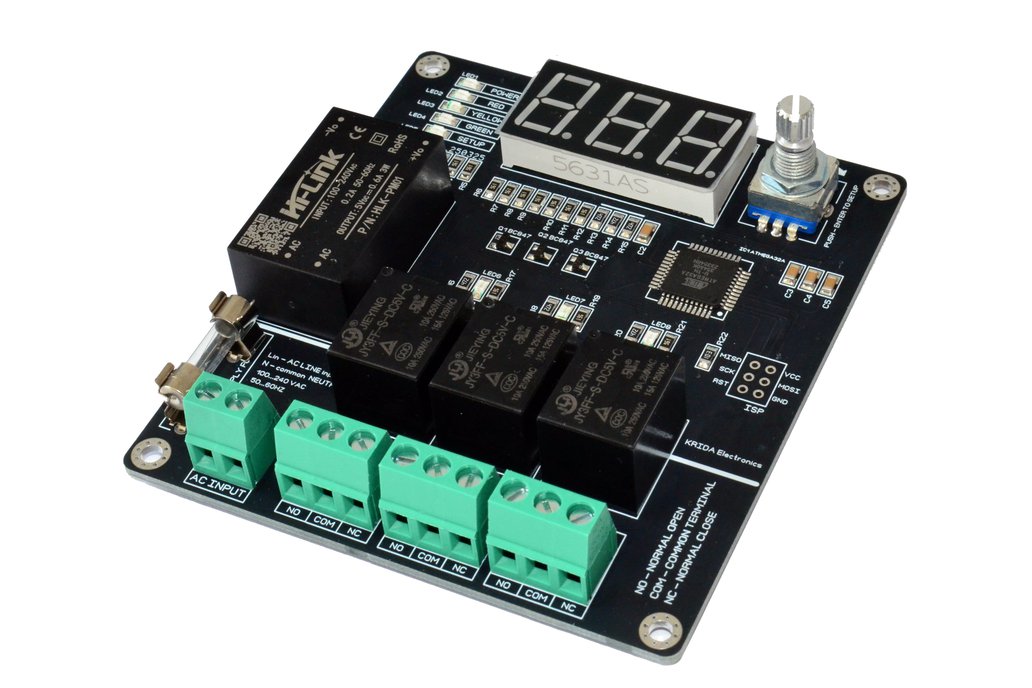

3CH Traffic Light Controller Sequencer Board 100…240VAC / 50HZ and 60HZ Based on Electro Magnetic Relays 10 Amps current per each channel Description: Elevate your Light Controller control with our …

3CH Traffic Light Controller Sequencer Board 100…240VAC / 50HZ and 60HZ

Based on Electro Magnetic Relays 10 Amps current per each channel

Description: Elevate your Light Controller control with our EMR (Electromagnetic Relay) Manual Light Controller Sequencer. This advanced sequencer offers 37+ sequences, including realistic patterns, random modes, solid-on settings, and user-programmable sequences. Each mode allows you to customize durations for precise control.

Key Features:

Guaranteed compatibility with all LED and incandescent lights, including vintage signals.
Wide voltage range: 80VAC to 240VAC.
Powerful performance: Up to 10 Amps per channel for extended operation at 110V/240V AC, peaking 15Amps.
Automatic mode memory in case of power loss.
Easy programming with pushbutton control (encoder).
3 seven-segment displays for straightforward programming.
Onboard LEDs indicate current output states for easy setup.
Versatile: Can be used as a 3-channel, 2-channel, or 1-channel sequencer based on your application.
Ideal for full-sized incandescent lights and low-power LED bulbs down to 1 watt.
Efficient Power: This sequencer operates on standard AC voltage, sharing the same input with your AC load or lights, eliminating the need for extra connections. The logic section is energy-efficient and spike-protected, using only about 1/10 watt.

Sequences and Timing: Choose from 37+ built-in sequences easily with the rotary switch—no need to power off to change programs. Sequence memory is retained even when the power is off. Explore realistic modes, random sequences, and entertaining chaser sequences, adjusting timing from 1 second to 255 seconds.

Specifications:

PCB board dimensions: 90mm x 100mm
PCB Board Material: 1.6mm FR-4, with solder mask & silk screen.
Supply Voltage: 100VAC to 240VAC (50Hz and 60Hz).
Delay Range: 0 – 255 seconds for each color (RED, YELLOW, and GREEN), mode-dependent.
Input Connector: 14-26AWG, 250VAC @ 16A screw terminals.
Output Connectors: 14-26AWG, 250VAC @ 16A screw terminals.
Safety fuse: 0.5A.
Unit Weight: 180 grams.

USERMANUAL - https://drive.google.com/file/d/1PGGvawpW1ePCHXaOUdHZhzDgrplPwjNW/view?usp=drive_link

NEED Special mode? Contact us directly!
