TURBO Infrared Dazzler Blaster 940nm 10x LEDs

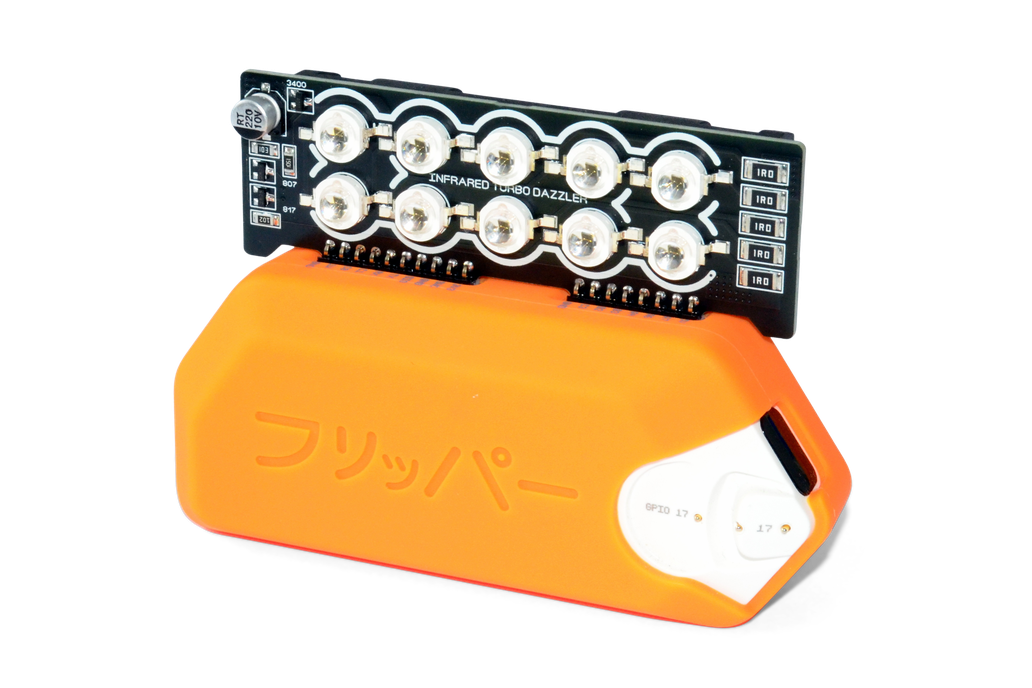

Enhanced IR Extension Module for Flipper Zero – TURBO InfraRed Dazzler Blaster 940nm 10x LEDs

Features & Benefits of dazzler : 10 pcs high power 3W IR leds with crystal transparent silicon lens with beam angle 60 degrees. External power supply li-on battery 3.7V 18650 size.

Enhanced IR Capabilities: This module significantly boosts the infrared (IR) functionality of your Flipper Zero, equipped with 10 pcs high-intensity IR LEDs to project a focused beam of IR light. The strategic placement of these LEDs, along with built-in LED lens, optimizes performance for a stronger signal.

Universal Remote Functionality: Transform your Flipper Zero into a versatile universal remote, capable of managing a wide array of devices such as TVs, projectors, audio/visual equipment, air conditioning units, fans, and heaters, offering you control at your fingertips.

Quality Construction: The module boasts a reflective coating to enhance IR signal reflection, a high-temperature PCB substrate for effective heat dissipation during extended use.

Sleek Design: Its slim profile ensures a flush fit atop the Flipper Zero board, designed to be compatible with 3D printed cases, and does not obstruct the device's form or functionality.

Why Choose This Module Over Flipper Zero’s Built-in IR?

While the built-in IR of the Flipper Zero is necessary for programming new IR signals, this extension module serves as a powerful transmitter, allowing for remote operation without direct line-of-sight to your devices.

While the built-in IR of the Flipper Zero is necessary for programming new IR signals, this extension module serves as a powerful transmitter, allowing for remote operation without direct line-of-sight to your devices. Perfect for enhancing the power beyond the built-in IR's capabilities.

In order module to work Correctly, you need to set the following settings:

• 1. Go to the "Infrared" menu and select "GPIO setting"
• 1. Switch "Send signal" to 2(A7)

Package Includes:

• 1x Infrared TURBO Dazzler (without battery 18650)

Notes:

• BATTERY 18650 NOT INCLUDED TO THE PACKAGE. PLEASE BUY IT SEPARATELY!

• The 18650 battery can have a voltage range from 2.5 to 4.2 volts. 2.5 volts fully discharged, 4.2 volts fully charged, 3.7 volts is the nominal voltage.
