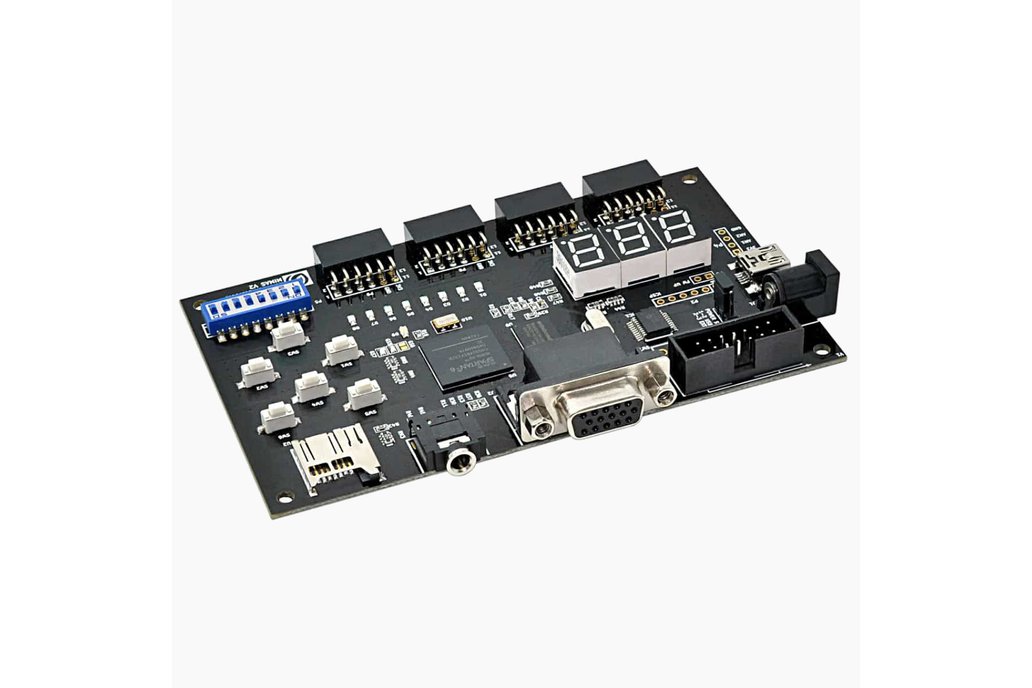

MIMAS V2 is a feature packed yet low cost FPGA Development board featuring Xilinx Spartan-6 FPGA. MIMAS V2 is specially designed for experimenting and learning system design with FPGAs. This development board features SPARTAN XC6SLX9 CSG324 FPGA with onboard 512Bb DDR SDRAM. The USB 2.0 interface provides fast and easy configuration download to the on-board SPI flash. No need to buy an expensive programmer or special downloader cable to download the bit stream to the board.

Applications

Product Prototype Development

Signal Processing

Learning Digital Electronics

Educational tool for schools and universities

Board features

FPGA: Spartan XC6SLX9 in CSG324 package

DDR Memory: 166MHz 512Mb LPDDR (MT46H32M16LF/W949D6CBHX6E)

Flash memory: 16 Mb SPI flash memory (M25P16)

USB 2.0 interface for On-board flash programming

FPGA configuration via JTAG and USB

8 LEDs ,Six Push Buttons and 8 way DIP switch for user defined purposes

VGA Connector

Stereo Jack

Micro SD Card Adapter

Three Digit Seven Segment Displays

32 IOs for user defined purposes

Four 6×2 Expansion Connectors

On-board voltage regulators for single power rail operation

Features & Specifications

Switches: DIP, Push Button

Number Of GPIOs (Max): 32

Memory Type: LPDDR

Video Out: VGA

Number Of Clock Sources: 1

FPGA Device: XC6SLX9

Number Of General Purpose LEDs: 8

Communication: TTL Compatible Input, TTL Compatible Output, USB-RS232

Display Types: LED Seven Segment

Data Storage: Micro SD Slot

Configuration Options: JTAG

Primary Clock Frequency (MHz): 100

Audio Codec: PWM

Audio Out: Analog
