Homeassistant compatible PWM fan controller with temperature and humidity sensing
What is it?

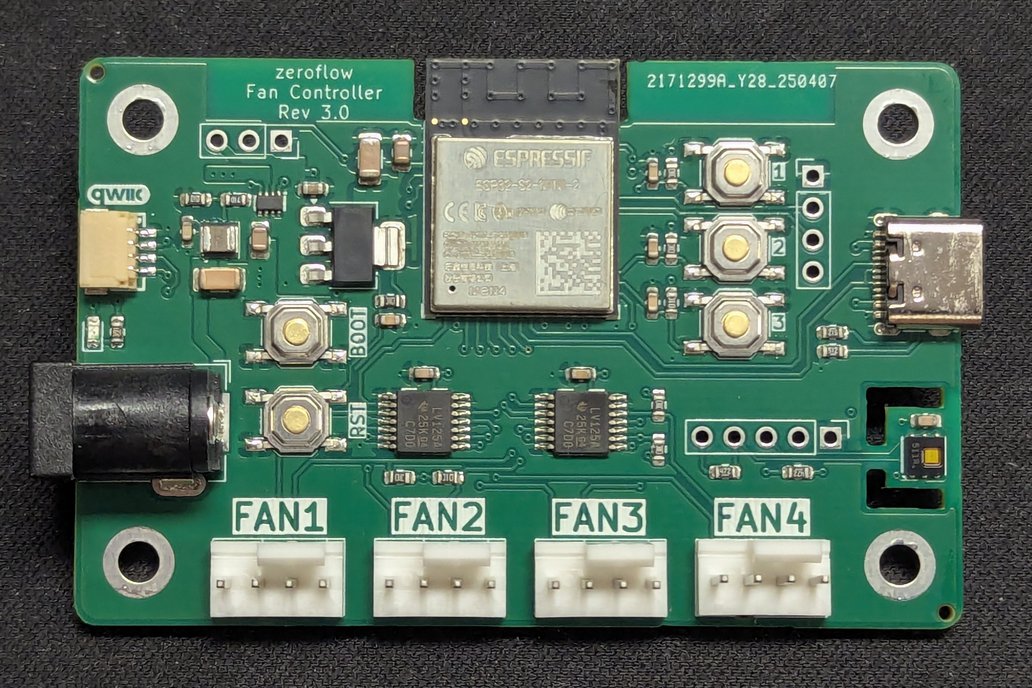

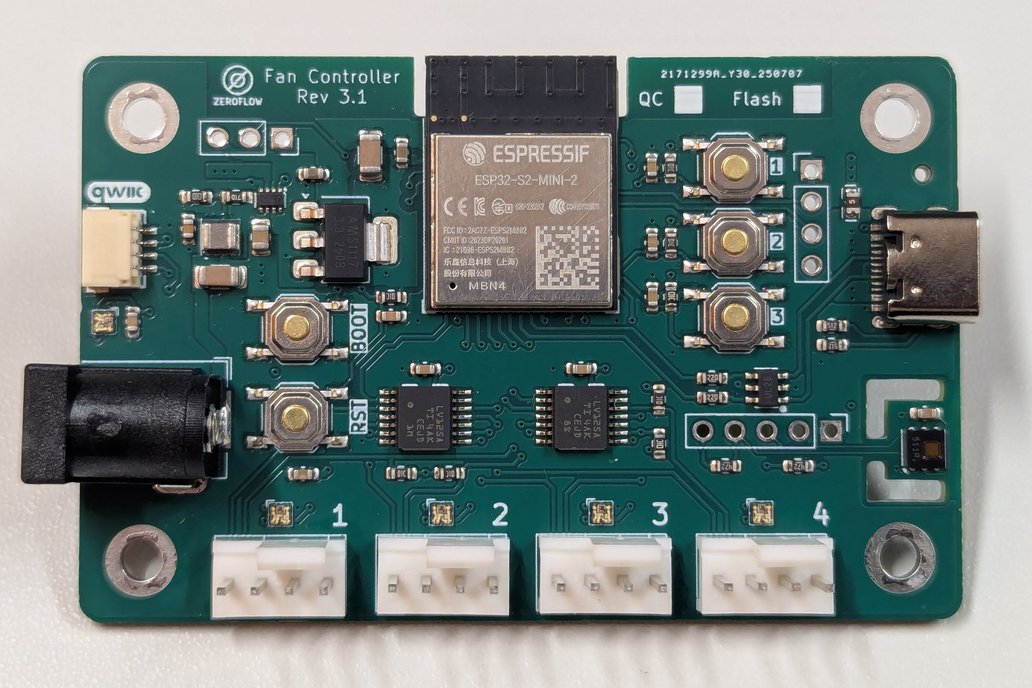

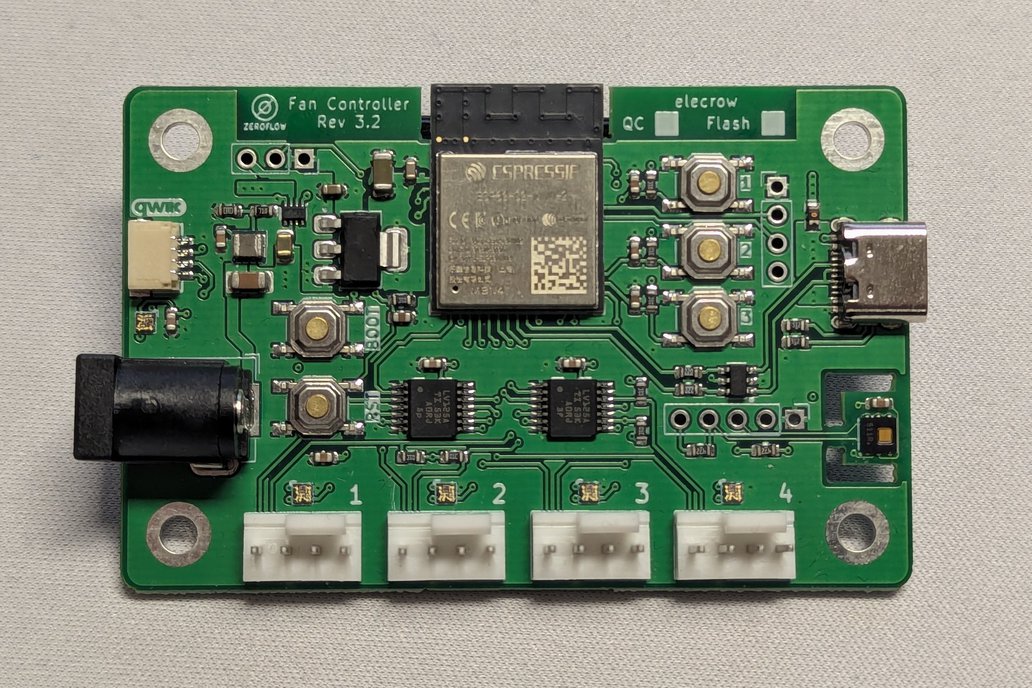

This board is an ESP32-S2-based Wifi Fancontroller.
It allows you to control up to 4 independant PWM Fans and read temperature & humdity at the installed location. E.g. you can use a stan…
This board is an ESP32-S2-based Wifi Fancontroller.
It allows you to control up to 4 independant PWM Fans and read temperature & humdity at the installed location. E.g. you can use a standard 12V 120mm Noctua PC fan as an exhaust for a PC inside a cupboard.
Specs
Basics
12V DC Barrel Input (5.5x2.1mm, max. 2.5A)
4x PWM Fan Output (only limited by 2.5A input limit)
When I built my first rack, I found no readily available solution for controlling PWM fans via HomeAssistant. That's when I decided to make this product.
I'm using it in my network racks for ventilation. Put 2x 120mm PWM fans on top for exhaust, add a internal fan for circulation and you're good to go.
Software Stack
This PCB comes pre-flashed with an ESPHome Factory Image or can be reflashed via a USB or Wifi.
Find the sources for ESPHome here: https://github.com/zeroflow/esphome-fancontroller
Printed Case
The case kit is printed from white Nylon in a commercial process.
No country selected, please select your country to see shipping options.
No rates are available for shipping to .
Enter your email address if you'd like to be notified when ESP32 Wifi Fancontroller can be shipped to you:
Thanks! We'll let you know when the seller adds shipping rates for your country.
Rates to
Shipping Rate
Tracked
Ships From
First Item
Additional Items
:
Review Breakdown
5
2
4
2
3
0
2
0
1
0
Average Ratings
Product:
(5.00)
Documentation:
(4.25)
Shipping:
(5.00)
Communication:
(4.75)
Lila |
Feb. 3, 2026
Amazing DIY Product!
Product works amazingly and is even better than expected. Creator is quick to reply to issues and questions. Shipping was timely and was even faster than expected. Would buy again. Love ready-made ESPHOME products like this. Wish there was more like this. Used mine in a DIY air filter.
Jodan |
Aug. 15, 2025
Perfect for any Home Assistant Enthusiast!
G'day from Australia! Similar use cases to other reviewers, this controller is installed within my rack, powering a couple of Notcuas. Looks great, configurations and integration with Home Assistant were very easy to set up. Will most likely buy a couple more of these down the line. Would recommend.
Scott |
July 13, 2025
Exactly what I needed - very good product!
Surprised something like this doesn't already exist since wanting to control fans via Home Assistant seems like a pretty common use case. Used the fan controller to control fans within my server rack which badly needing some cooling and this works perfectly. Documentation could have been more comprehensive - for some reason the api was disabled within the Rev3 ESPHome yaml config which means I couldn't connect to it from Home Assistant out of the box and there was no documentation about how to resolve this so it took a big of digging to work out how to flash a new firmware OTA with the api enabled. Overall very well put together, would recommend.
Response from zeroflow's | July 13, 2025
Hi Scott,
Great to hear it serves you well. This exact usecase is the reason why I built this product in the first place.
Thank you for bringing this up, the missing api config is indeed an oversight when creating the example configuration. As you also noted, the documentation indeed is in some dire need of improvement, which will happen soon.
If you have any other questions, please don't hesitate to ask.
Marius |
March 1, 2025
Perfect
I use it in a grow tent as fan controller, works perfect. Documentation is available on git
