Product description

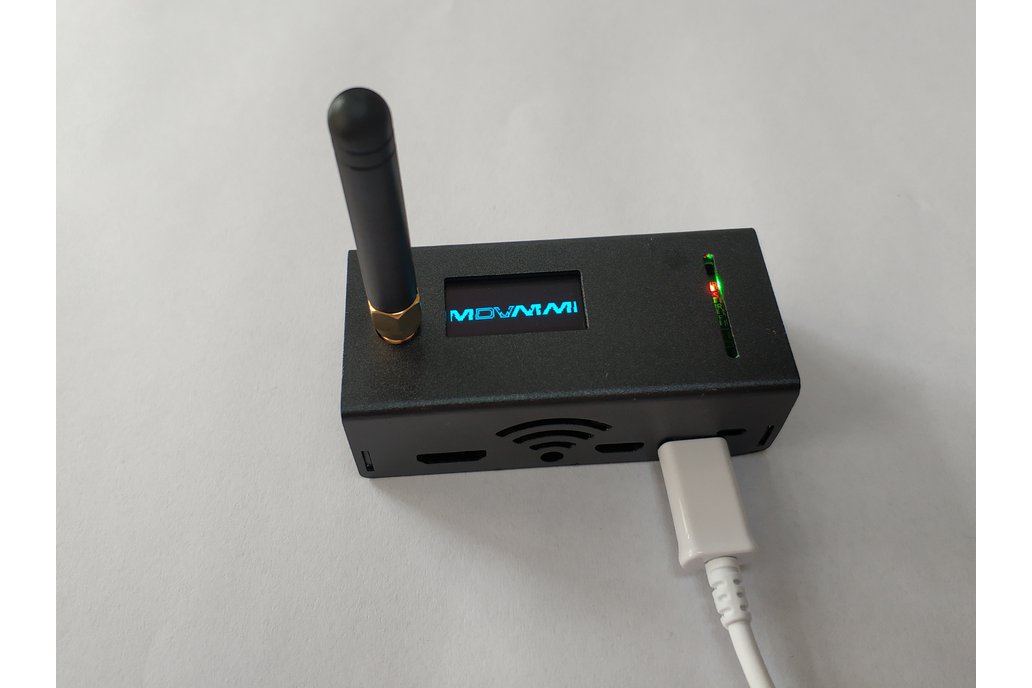

• MMDVM Hotspot is an easy, convenient and ready to use Multi-mode Hotspot that supports C4FM YSF NXDN DSTAR P25 DMR
• Use high-precision TCXO: ECS (from the United States) or KDS (from Japan), the default offset is 0, no need to modify in pistar.
• Oled screen and Raspberry Pi have been welded, SD card has been written with firmware, plug and play!

Base Setting:

Power On and Wait for 2-3 minutes Connect to Pi-Star-Setup(pi-star)/SSID/PASSWORD: raspberry http://192.168.50.1/admin/configure.php

MMDVMHost Configuration：

• MMDVM Display Type: OLED
• Radio Freq: UHF:430-440,VHF:144-146
• Radio/Modem Type: STM32-DVM/MMDVM_HS – Raspberry Pi Hat(GPIO) or any XXX(GPIO)
• http://192.168.50.1/admin/expert/edit_mmdvmhost.php
• RXOFFSET=0,TXOFFSET=0 (default)

TIPS:OLED is no display Until you set wifi and display TYPE

Login info:

• User:pi-star password:raspberry
• Set the same Frequency, Callsign, DMR ID, Color code, Repeater Slot(Time Slot Defaults 2) as Radio Mobile and WiFi
• Details Software:Pi-Star
• Note: All designs will be contributed on MMDVM open source project.

IMPORTANT NOTE:

When you first time set up, MMDVM hotspot will generete pi-star set up hotspot, which you'll connect with, and goes into pi-star and then visit 192.168.50.1 for configuration. If you connected to your home network/home wifi, it will remember your home wifi. Therefore, when you open pi-star and try to update your configure, there will be no pi-star wifi.

If you came across this situation, here're two methods to log in and update you configure:

• A, Visit http://pi-star on your browser, log in pi-star and configure. If you're on macOS, iOS or Windows 10 tablet, please visit http://pi-star.local.
• B, Find your Device IP on your home network routers, and log in with that IP, and update your configure.

Package content:

• 1x OLED display (installed on board)
• 1x Raspberry Pi Zero W
• 1x TF card
• 1x MMDVM board
• 1x USB Cable
• 1x Antenna
