What is it?

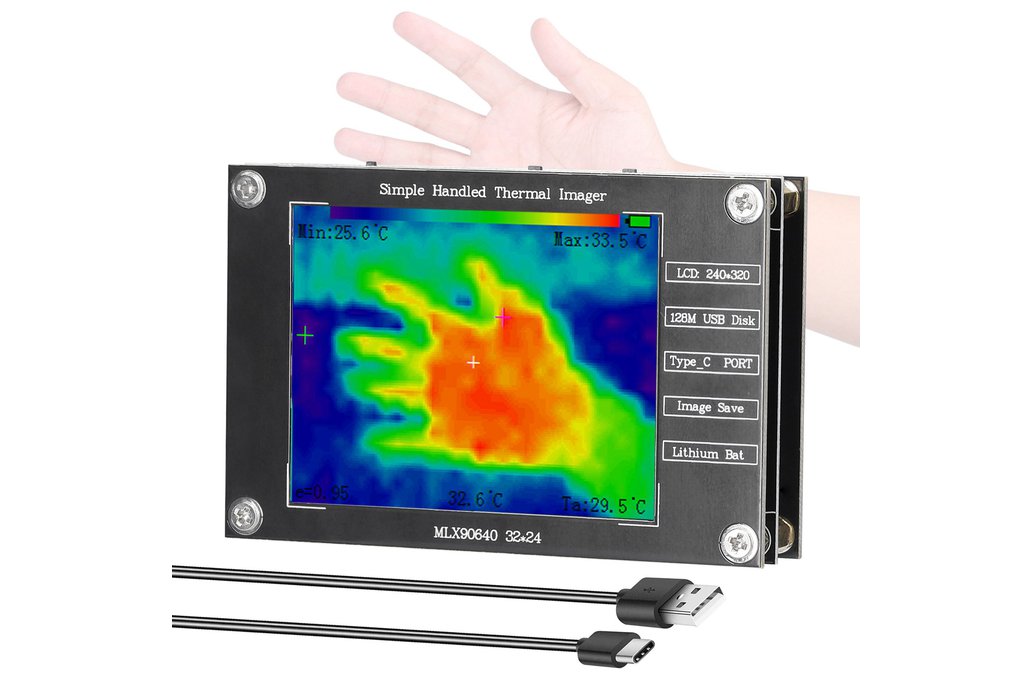

The MLX90640 Handheld Thermal Imager is a compact, self-contained infrared imaging device designed for high-precision non-contact temperature measurement. It features a built-in 32x24 pixel far-infrared array sensor and a integrated 2.8-inch TFT display (320x240 resolution), allowing you to visualize heat signatures instantly without any external equipment. Encased in a durable FR4 epoxy shell, this tool is portable enough for field use while remaining robust for industrial environments.

Why did you make it?

We recognized the need for an affordable, "all-in-one" thermal solution that bridges the gap between expensive professional imagers and cheap smartphone plug-ins. Professionals and DIY enthusiasts often need to detect heat leaks, monitor industrial components, or troubleshoot PCBs without the hassle of connecting to a phone or PC. This device was developed to provide a reliable, long-lasting tool that can be used independently for everything from home energy audits to automotive maintenance and security detection.

What makes it special?

Performance & Accuracy: Offers a wide measurement range of -40°C to +300°C with an accuracy of ±2°C and a smooth 8Hz dynamic refresh rate.

Intelligent Tracking: The screen automatically tracks and displays the highest, lowest, and center-point temperatures in real-time.

Robust Design: The FR4 epoxy material provides superior protection for internal components compared to standard plastic housings.

Onboard Storage & Connectivity: Features built-in SPI Flash memory to store up to 100 images. You can easily export these files by connecting to a PC or phone via USB-C, which also acts as a U-disk mode for data transfer.

Excellent Battery Life: Powered by a 3.7V rechargeable lithium-ion battery, it supports over 4 hours of continuous use and can be operated while charging.

Ultra-Portable: Measuring just 85 x 55 x 30mm, it fits comfortably in your hand or pocket.

Technical Specifications:

Sensor: MLX90640ESF-BAB

Field of View: 55° x 35°

Emissivity: 0.95

Operating Humidity: ≤70%

Packing List:

1* Thermal Imager

1* Lens Cleaning Cloth

1* USB Type-C Cable
