#### What is it?

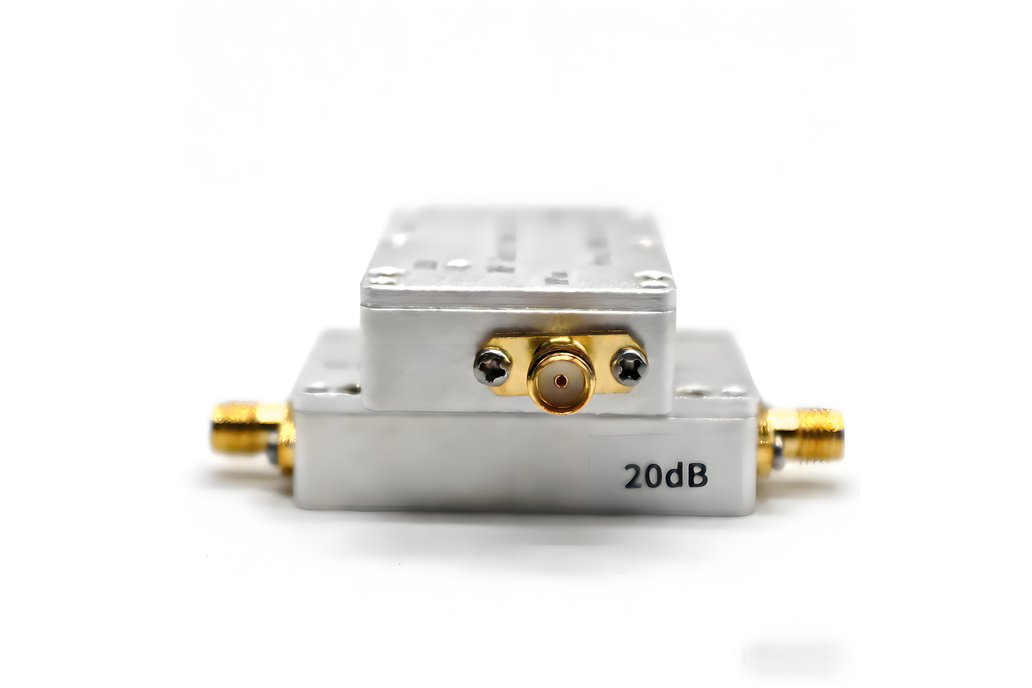

The GB016010G is a high-performance, ultra-wideband 10MHz to 6GHz RF Amplifier designed for both signal driving in transmitters and small signal amplification in receivers. Encased in a rugged, CNC-machined aluminum housing, it provides 20dB of typical gain with exceptional flatness across a massive frequency spectrum. This module is a versatile tool for any RF lab, covering popular bands including 433MHz, 1.2GHz, 2.4GHz, and 5.8GHz.

#### Why did you make it?

SDR enthusiasts and radio engineers often need a reliable, "plug-and-play" gain stage that doesn't require complex biasing or external power bricks. We created this module with a modern Type-C interface to allow users to power the amplifier directly from a laptop, power bank, or smartphone charger. The integrated power LED indicator provides instant visual confirmation, making it ideal for field testing and portable SDR setups.

#### What makes it special?

Ultra-Wideband Coverage: Seamlessly works from 10MHz all the way up to 6GHz, supporting everything from HF to 5G and Wi-Fi 6 frequencies.

High Flatness & Stability: Features a high-flatness gain characteristic, ensuring consistent 20dB amplification without significant distortion across different bands.

Industrial Shielding: The aluminum alloy case provides superior EMI protection, preventing external interference from degrading your signal quality.

Modern Connectivity: Powered via Type-C (+5V), eliminating the need for bulky DC barrel jacks.

Compact & Lightweight: Weighing only 35g and measuring 46 x 30 x 12mm, it fits easily into any travel kit or drone enclosure.

Technical Specifications:

Model: GB016010G

Frequency Range: 10MHz - 6GHz

Gain: 20dB typical

Noise Figure: 4.5dB

P1dB Output: +12dBm @ 2GHz

Current Consumption: 50mA

Connectors: SMA (Female)

Packing List:

1x RF Amplifier Module

1x USB Type-C Power Cable
