What is it?

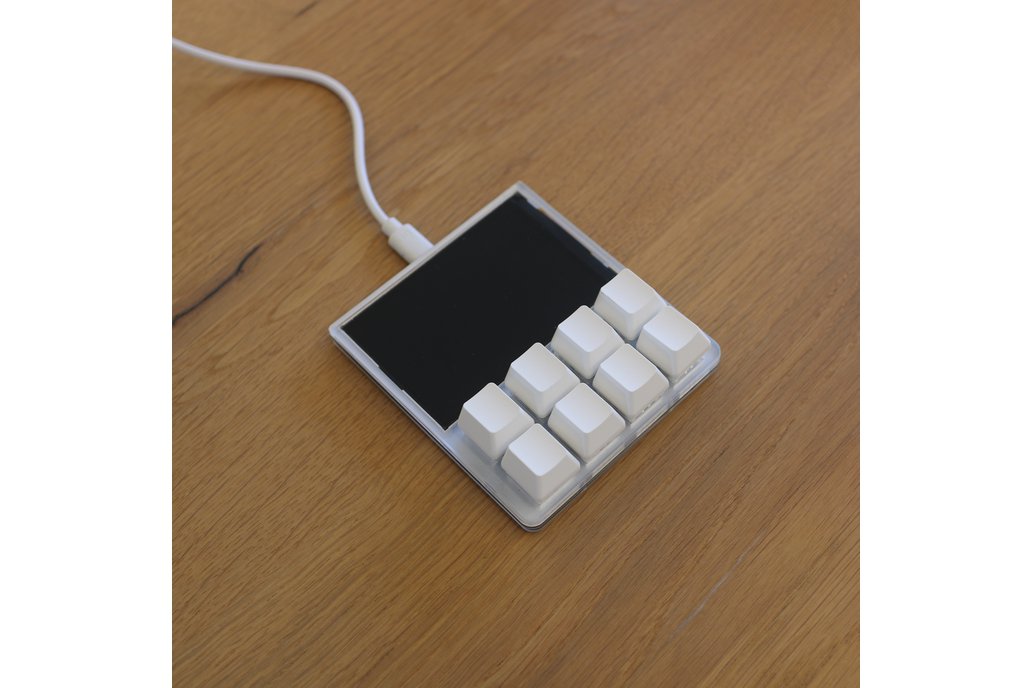

This is a DIY version of Stream Deck, Yet improved by using Hot-Swappable Key Caps!

Why did you make it?

I bought a 12 key macro pad to simplify my daily work on PC. It works great, but I always forget the key function especially when that key is not used for a while. So the idea of making a macro pad with a LCD to dynamically show the functionality comes to my mind.

What makes it special?

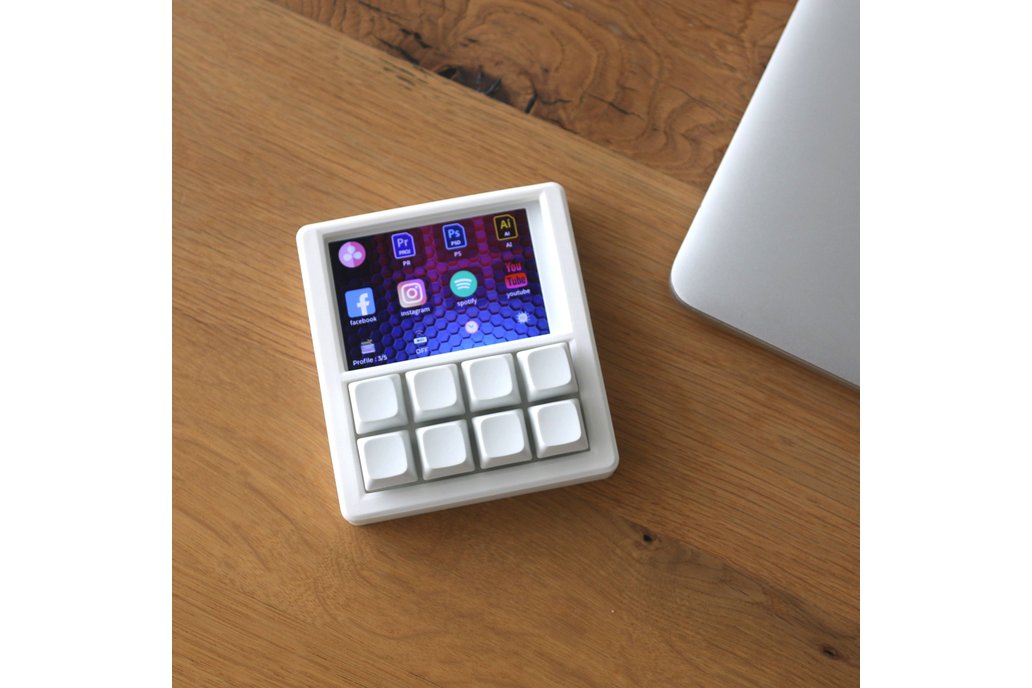

It's not only a macro pad but also kind of a desktop control center (inspired by Stream Deck).

Features

• 8 Fully Programmable Keys

• PC Monitoring Full Screen Mode

• 5 Profiles With Dedicated Navigation Switch

• RGB Backlit Configurable

• Hot-swappable for easy customization

• Key Icon Customizable

• Script Supported

• Intuitive Configuration Software

• Stream Deck Functionality ( Launching APP / Opening folder / Accessing Website / PC status Displaying / ... )

Specification

• Screen ：480x320 65K Color
• Connectivity : USB TYPE-C
• Case material : Acrylic / 3D printing
• Hot-swappable switch sockets
• Compatibility : Windows, Mac and Linux
• Dimension : 100 x 89 mm
• Mouse Simulation : Supported
• PC Status Display : Supported
• Script : Supported
• Multiple Action with One Stroke : Supported

Github repo

https://github.com/eezbotfun/8-key-macropad

3D Printing Housing

https://www.thingiverse.com/thing:7071758

Discord

https://discord.gg/s5KM92ZC
