breakout board trio

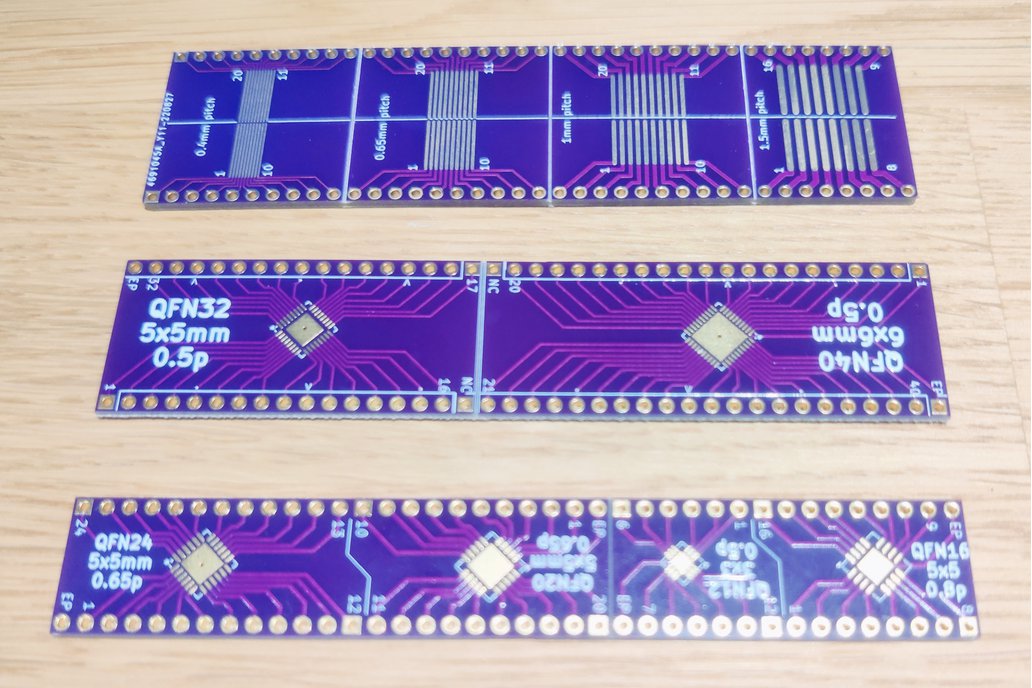

the breakout board trio consists of

• 1 x bebop, "better breakout pcb"

• 1 x ska, "square kit adapter"

• 1 x hiphop, "high integration package headers optimized pinout"

so in total you get the following footprints, each one time:

- 0.4 mm pitch, up to 20 pins
- 0.5 mm pitch, up to 20 pins
- 0.65 mm pitch, up to 20 pins
- 0.8 mm pitch, up to 20 pins
- 1 mm pitch, up to 20 pins
- 1.27 mm pitch, up to 20 pins
- 1.5 mm pitch, up to 16 pins

- QFN40, 0.4 mm pitch, 5x5 mm
- QFN32, 0.65 mm pitch, 7x7 mm
- QFN32, 0.5 mm pitch, 5x5 mm
- QFN40, 0.5 mm pitch, 6x6 mm

- QFN16, 0.5 mm pitch, 4x4 mm
- QFN12, 0.5 mm pitch, 2x2 mm
- QFN20, 0.5 mm pitch, 4x4 mm
- QFN24, 0.5 mm pitch, 4x4 mm
- QFN16, 0.8 mm pitch, 5x5 mm
- QFN12, 0.5 mm pitch, 3x3 mm
- QFN20, 0.65 mm pitch, 5x5 mm
- QFN24, 0.65 mm pitch, 5x6 mm

have a look at our other breakout boards too!
