PICO9918 VGA no-cut mod for the TI-99/4A

Designed by Troy Schrapel in Australia








Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

PICO9918 VGA no-cut mod for the TI-99/4A

What is it? Allows you to add the A/V connectors of the PICO9918 to your TI-99/4A without cutting the case. Designed to replace the existing 5 or 6 pin A/V DIN connector of your TI-99/4A with a custo…

What is it?

Allows you to add the A/V connectors of the PICO9918 to your TI-99/4A without cutting the case.

Designed to replace the existing 5 or 6 pin A/V DIN connector of your TI-99/4A with a custom PCB which includes the original DIN connector in addition to new VGA and audio connectors.

Note: If you order just the PCB or the kit, I will pre-solder the JST or FFC connector for you. The JST connector is also epoxied to the PCB.

Important: Installation requires you to desolder and remove your existing A/V DIN connector from your TI-99/4A PCB. If you're not comfortable doing this, I suggest skipping this mod.

Enclosure

The enclosure provides the stability. Without it, the entire mod PCB is only held in place with the soldered connection to the original TI-99/4A DIN socket.

When selecting an enclosure, be sure to select the correct color for your system as the design of the retaining fins is slightly different between black and beige systems. If you'd prefer to print your own enclosure, the STLs are available in the PICO9918 GitHub repository

PICO9918

This product requires a PICO9918 VDP replacement (not included). See https://www.tindie.com/products/visrealm/pico9918

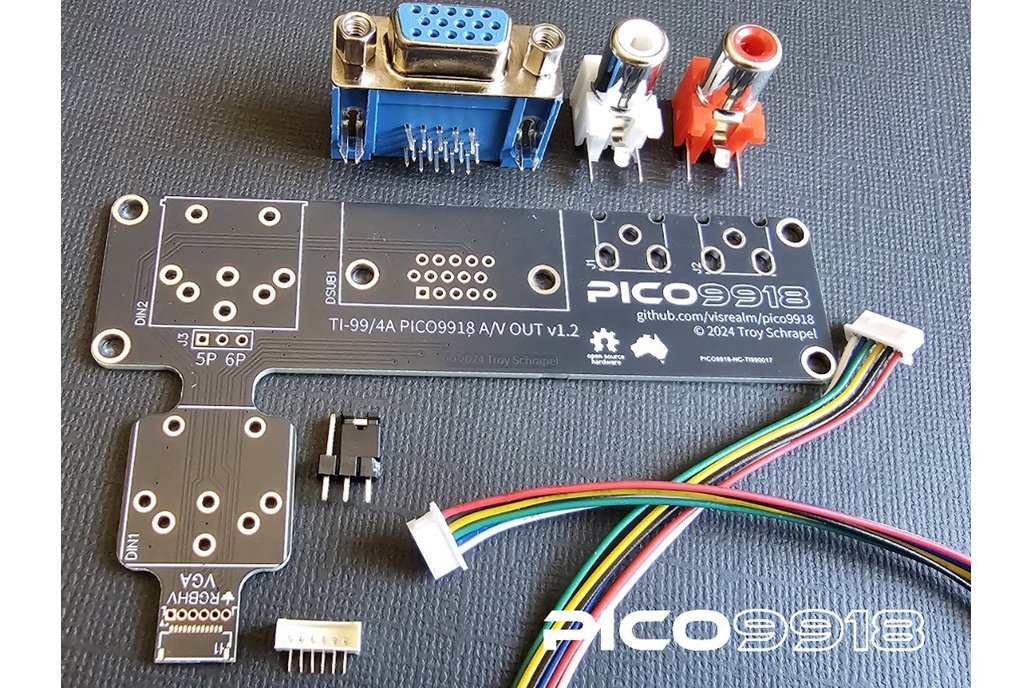

What do you get?

1x PICO9918 no-cut PCB
FFC or JST connector pre-soldered

For the kit and assembled versions, you will also receive:

1x Riser block with pin headers pre-installed
1x VGA connector
1x White RCA connector
1x Red RCA connector
1x 3-pin header + jumper
1x FFC or JST cable
