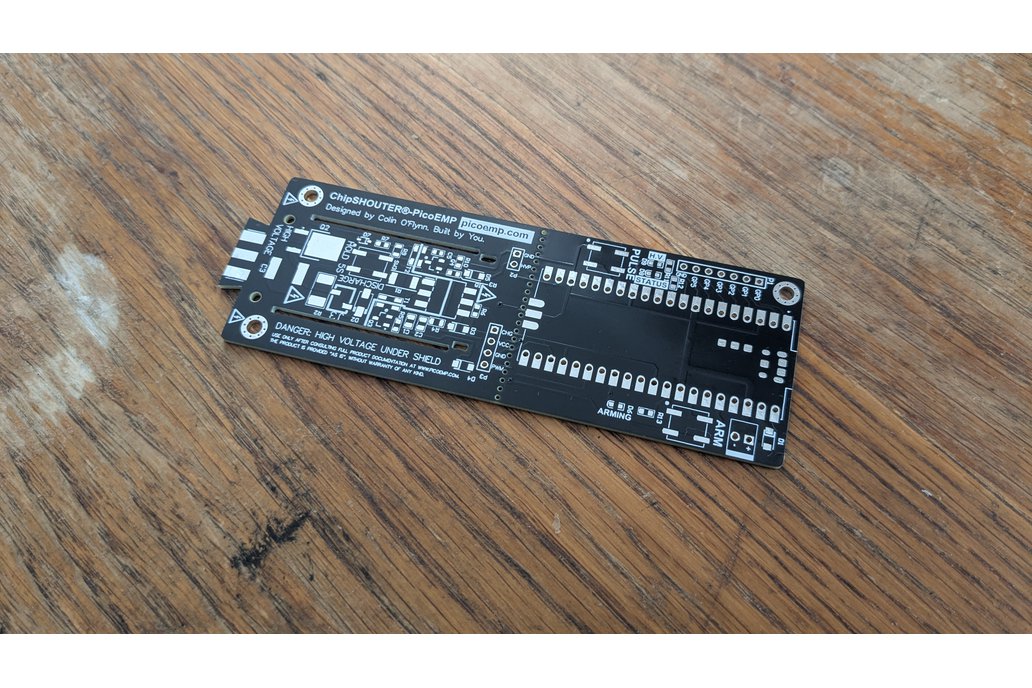

PicoEMP PCB Board
This is a PCB-ONLY listing for a PicoEMP by NewAE Tech. These are unpopulated HASL prepared PCBs according to the original design. No parts are included with this.
What is it?
From …
This is a PCB-ONLY listing for a PicoEMP by NewAE Tech. These are unpopulated HASL prepared PCBs according to the original design. No parts are included with this.
>The ChipSHOUTER is a high-end Electromagnetic Fault Injection (EMFI) tool designed by Colin at NewAE Technology. While not the first commercially available EMFI tool, ChipSHOUTER was the first "easily purchasable" (even if expensive) tool with extensive open documentation. The tool was not open-source, but it did contain a variety of detailed description of the design and architecture in the User Manual. The ChipSHOUTER design optimization focused in rough order on (1) safe operation, (2) high performance, (3) usability, and finally (4) cost. This results in a tool that covers many use-cases, but may be overkill (and too costly) for many. In additional, acquiring the safety testing/certification is not cheap, and must be accounted for in the product sale price.
> The PicoEMP tries to fill in the gap that ChipSHOUTER leaves at the lower end of the spectrum. This PicoEMP project is not the
ChipSHOUTER. Instead it's designed to present a "bare bones" tool that has a design optimization focused in rough order of (1) safe
operation, (2) cost, (3) usability, (4) performance. Despite the focus on safety and low-cost, it works suprisingly well. It is also
not sold as a complete product - you are responsible for building it, ensuring it meets any relevant safety requirements/certifications,
and we completely disclaim all liability for what happens next. Please only use PicoEMP where you are building and controlling it
yourself, with total understanding of the operation and risks. It is not designed to be used in professional or educational environments,
where tools are expected to meet safety certifications (ChipSHOUTER was designed for these use-cases).
What is included
This listing is PCB only for now, offering ready-made PCBs for this project in black soldermask with white silkscreen.
