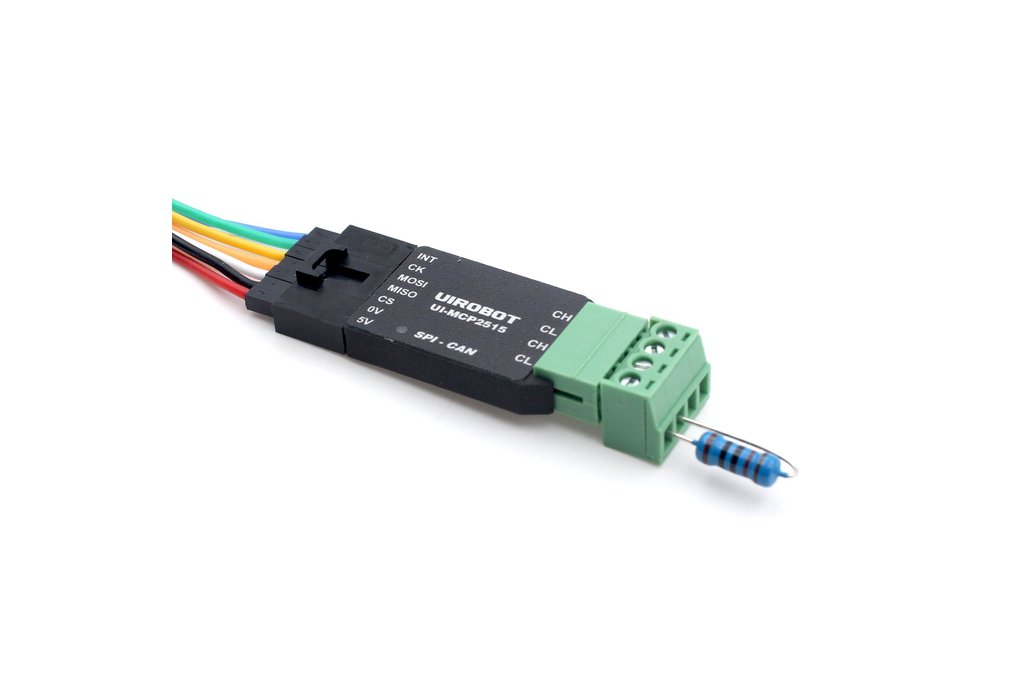

COMPATIBILITY: This MCP2515 CAN Bus module is designed for the UIM342 series integrated servo stepper motors and is ideal for programming with Arduino Nano. Equip with SDK and demo code to save programming time. It supports the CAN 2.0B protocol with a communication speed of 1 Mbps.

RECEIVER: The TJA1050 receiver provides superior performance for high-speed data transmission. Engineers can utilize the TJA1050 to ensure reliable CAN Bus communication, enhancing the effectiveness of their projects. It is ideal for integration with Arduino, improving system efficiency in engineering applications.

SPI PROTOCOL: The module supports the SPI protocol, ensuring seamless data communication. It is perfect for 51 MCU and Arduino UNO projects, and is widely used in embedded systems. The data field length is 0 to 8 bytes, and it supports standard frames, extended frames, and remote frames.

IMPEDANCE MATCHING: The 120Ω terminating resistor ensures impedance matching, optimizing driving capability, enabling long-distance data transmission, and preventing signal reflection.

OTHER PARAMETER: 5V DC power supply. Operating current: typical 5mA, standby current 1μA (excluding power indicator). Operating temperature: Industrial grade -40°C to 85°C
