【POWERFUL FUNCTION】 Our i o control includes a high-performance DSP system with a simple instruction set and high fault tolerance. Additionally, they support Quadrature Encoder Interface with feature-complete port protection, along with free debug/control software and a complete SDK, lib, dll, and C++/C# example codes.

【DAQ DATA ACQUISITION】 These compact, industrial-grade digital I/O modules, fully protected with a CAN Bus interface, can be controlled through UIM Gateways (RS232/USB/Ethernet TCP) or user CAN devices. They enable precise data acquisition capabilities, facilitating both data input and output.

【SECURITY PROTECTION】 The digital I/O module incorporates a fail-safe user interface, ESD, overheat, overload, short circuit, overvoltage protection, and current limiting functions to ensure the safety and reliability of your work. Aluminum alloy casing is sturdy and durable for easy heat dissipation.

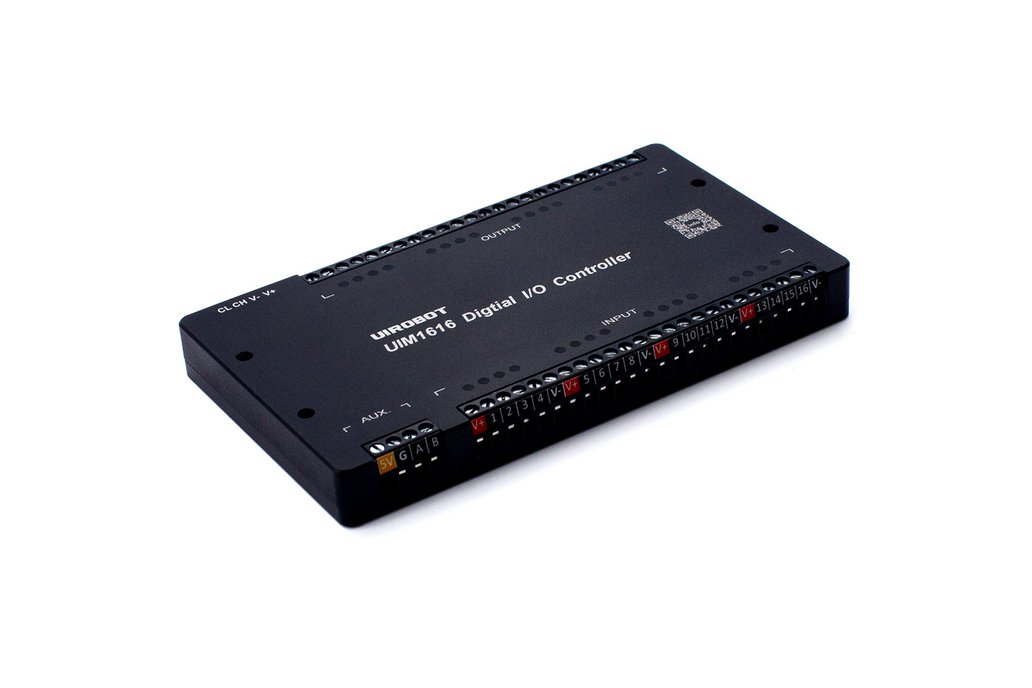

【I/O CONFIGURATION】 The module includes 16 digital input ports and 1 quadrature encoder interface. It offers 1500V photoelectric isolation and ESD protection. Additionally, it provides 16 digital outputs, each capable of handling 500 mA per port, and featuring 1500V photoelectric isolation. V+ operates within a range of DC 12-36V. V- is at 0 V potential.

【PORTABLE】 This IO control is suitable for any occasion, featuring a significantly reduced size of 1206813mm and a weight of 218g. It's a lightweight, handy, pocket-sized mini DAQ, perfect for industrial robots, automatic medical equipment, automated instrumentation, or the teaching field.
