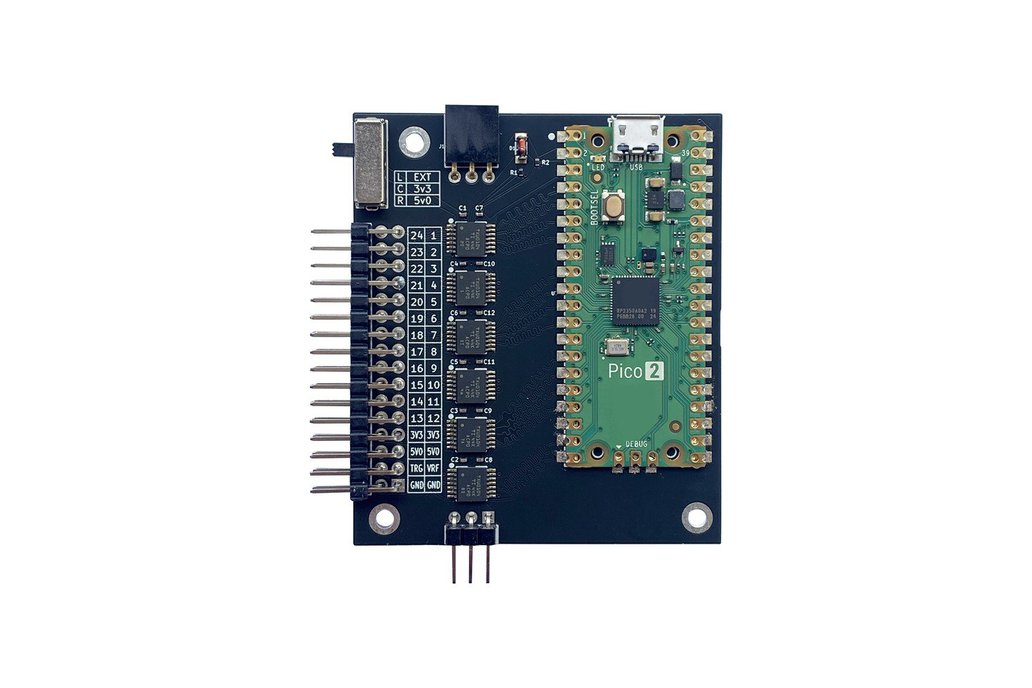

This is an affordable logic analyzer capable of reaching up to 400Mhz of sampling speed.

The analyzer uses a Pico 2 as its core. The analyzer offers 24 channels but can be chained up to 5 devices allowing the sampling of up to 120 channels at once.

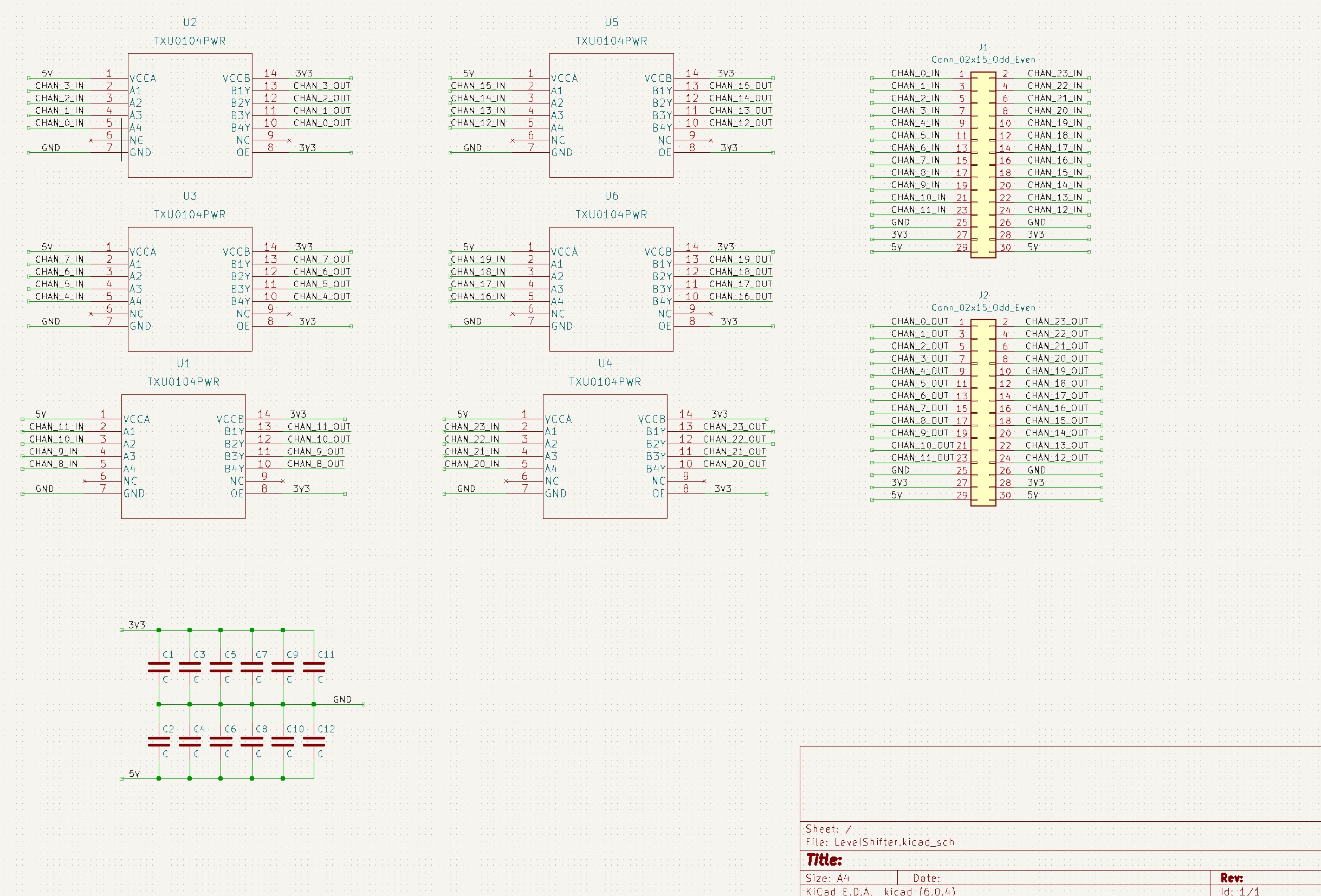

You can set the level shifters to use 5V, 3.3V or an external voltage.

It is compatible with the Sigrok protocol decoders and the software is free and available for Windows, Linux and MacOS.

The board is easily upgradable to new firmware versions via the USB-C port of the Pico2!!!

Check this cool use of the analyzer on ZX-Spectrum: https://www.youtube.com/watch?v=IHbIW8pi4Vo&ab_channel=HappyLittleDiodes

Package Contents:

• 1 * Logic Analyzer board (no case, PCB color may vary)
• 1 * Pico 2 (w/ RP2350) (presoldered + preflashed, PCB color may vary)

(shipped ready to use, plug & play)

Extras (paid option):

• 1 * cable with 10 multicolored probes/clamps
• 1 * 3D printed enclosure

Notes:

• All 24 channels are tested before shipping (buy with confidence).
• Due to different production batches, the PCB and Pico2 appearance is different, which does not affect functionality (this also applies to extras like probes' colors and enclosure filament colors)
• The Pico2 will not be an official Raspberry Pi product which does not affect use (it's just too expensive!).
