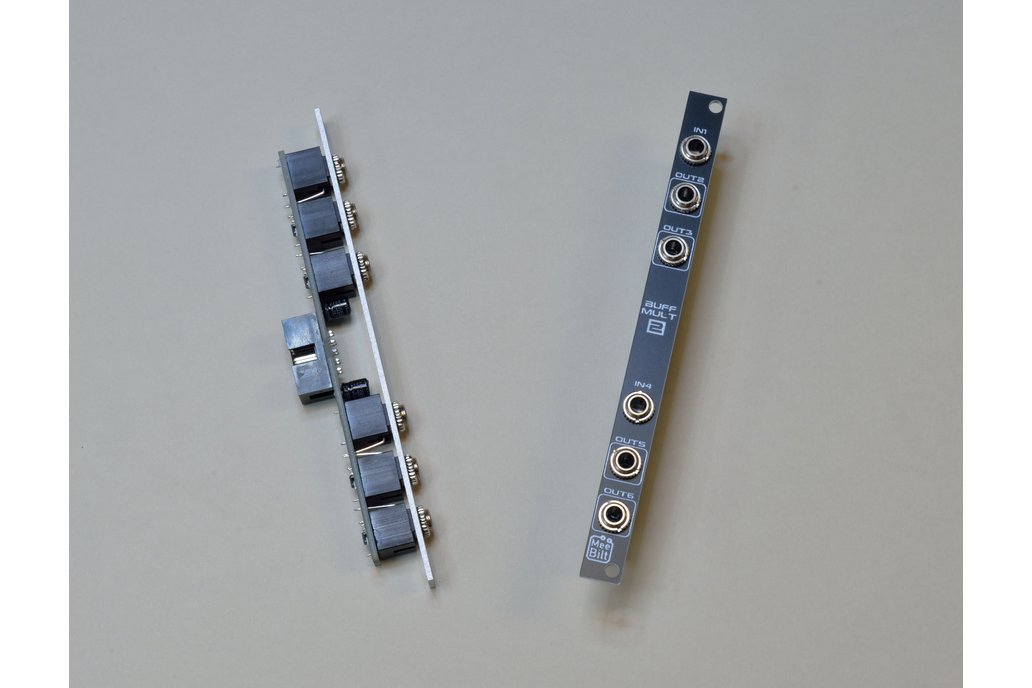

This is a dual 1-to-2 buffered multiple that can be used as a 1-to-4 buffered mult if the second input is unconnected. The module uses a high quality op-amp and is suitable for pitch CV signals.

Inputs:
Two inputs. Second input is normalled to the first one.

Outputs:
Two outputs connected to each input.

Supply:
+12 VDC @ 1 mA
-12 VDC @ 1 mA

Dimensions:
Height: 3U
Width: 2HP
Depth: 23 mm

The kit includes:
- 1 x PCB with pre-soldered SMT components
- 1 x black aluminium panel with white silkprint
- 1 x 10-pin power connector
- 2 x 10 uF/50V electrolytic capacitor (low profile)
- 6 x WQP-518MA 3.5mm mono jacks with knurled nuts

Power cable or frontpanel screws not included
