CM4 based PTP / SyncE 1G Switch with optional GPS

Switchberry is a Raspberry Pi CM4–controlled Ethernet switching + timing platform built around a Microchip KSZ9567 and a Renesas 8A34004 ClockMatrix DPLL. It’s designed for PTP / SyncE / timing lab use cases, to build out a PTP network with Sync-E support.

Full documentation available on Github: https://github.com/Time-Appliances-Project/Switchberry

Included in box

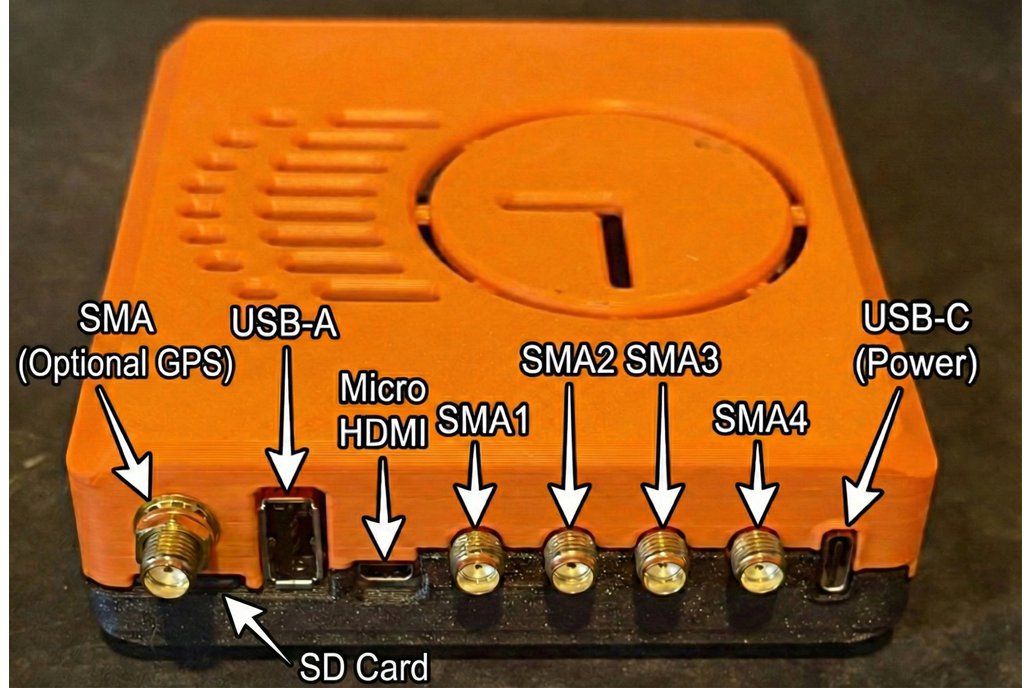

1. Switchberry in enclosure, with GPS installed if ordered

Default configuration

The default image shipped will configure the Switchberry for these configurations:

A. PTP Unicast Grandmaster

B. Onboard GPS highest priority

C. SMA1 = optional 10MHz input. If not provided, local TCXO is used

D. SMA2 = 10MHz output (frequency only, not GPS aligned)

E. SMA3 = 1PPS output (phase aligned to GPS or SMA4)

F. SMA4 = 1PPS Input (lower priority than onboard GPS)

Quick start instructions

1. Connect to Switchberry via any of the options. Default Login: pi / password

A. Micro-USB serial connection on the side

B. Micro-HDMI + USB

C. Any front panel port, default IP is 10.1.1.10

1. Enter the code directory cd Switchberry/Software

2. Run the configuration wizard for non-default configuration, answer the wizard questions ./sb-config.sh

3. Reinstall and restart all services sudo ./sb-reinstall.sh

4. Monitor services as needed for status information ./sb-status.sh
