Arc Ignition Lighter DC3-5V 3A

Name: Arc Ignition Lighter DC3-5V 3A
SKU: 40050
Price: 18.00 USD
Availability: InStock

EQKIT® Arc Ignition Lighter DC3-5V 3A DIY High Pressure Electronic Lighter Module Kit

Sold By takeit

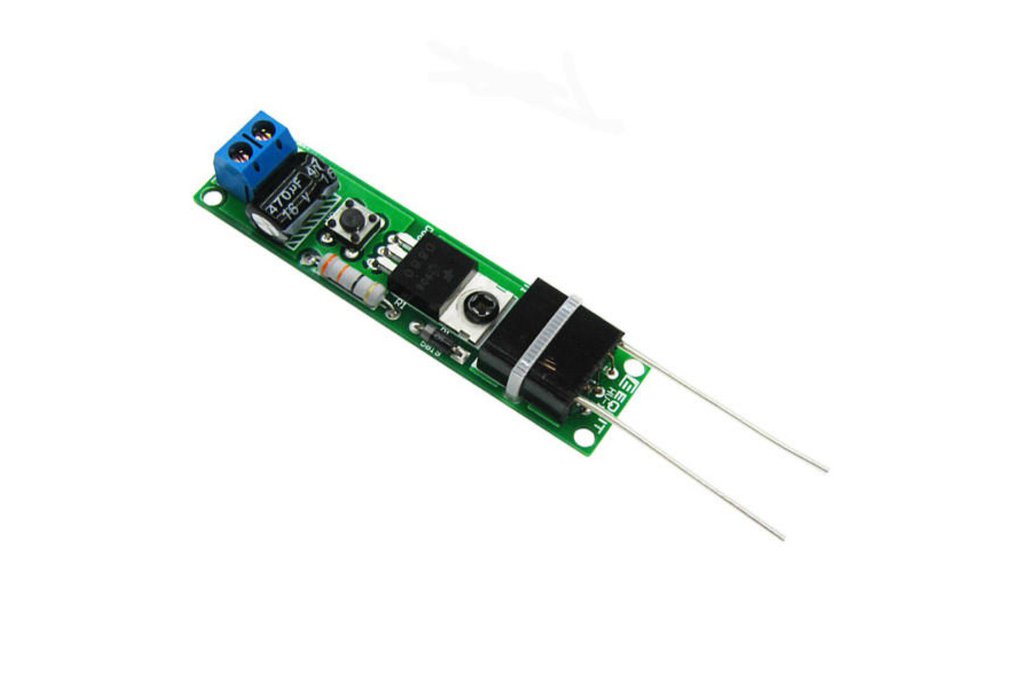

2025-09-18T22:35:15.398Z-image_17 - Copie.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Welcome to my Store. where you can find what you need to make your DIY products

EQKIT® Arc Ignition Lighter DC3-5V 3A DIY High Pressure Electronic Lighter Module Kit

Feature: Name: HV-1 high-pressure igniter (DIY kit, you need to assemble it) Input voltage: DC3-5V Input current: 3A Operating current: no less than 2.5A Working mode: self-excited oscillation boost …

Feature:

Name: HV-1 high-pressure igniter (DIY kit, you need to assemble it)

Input voltage: DC3-5V

Input current: 3A

Operating current: no less than 2.5A

Working mode: self-excited oscillation boost

Working frequency: about 20KHz

Continuous working time: 10 seconds

Arc length: about 5 mm

Size: 71 x 18 x 12mm (L x W x H)

Ignition switch: yes

Weight: 15 g

List:

NO. Component Name
PCB Marker
Parameter
QTY

1
Carbon film resistors
R1
33R/1W
1

2
Electrolytic capacitor
C1
470UF
1

3
Diode
D1
1N5819
1

4
Button
SW1 665mm 1

5
Transistor
Q1
D880
1

6
Battery terminal
JK1 KF301-2P
1

7
Transformer T1
14158 1

8
PCB --
18*71mm 1

9
Screw
Q1
M3*5
1

10
Nut Q1
M3
1

11
Tie T1
3*100mm 1

Package includes:

1 x Arc Ignition Lighter Kit
