About the Product

Do you want to design, test, or learn about RF filters? The Filter Test Board, designed by Deeplab Studio, is a practical and flexible solution for both beginners and advanced RF enthusiasts.

With this board, you can quickly build and test Low Pass, High Pass, and Band Pass filter circuits without complex wiring, using NanoVNA or spectrum analyzers.

Why Choose This Board?

• NanoVNA Friendly: Fully compatible with NanoVNA, TinySA, and similar measurement devices, ensuring clean and accurate filter response measurements.
• Flexible Matrix Design: The A–G / 1–7 matrix layout allows easy implementation of Pi, T, and custom filter topologies.
• Standard SMA Interface: Industry-standard SMA connector footprints are provided for both input and output.
• Educational & Practical: An excellent hands-on tool for students, makers, and amateur radio operators learning RF electronics.

Technical Specifications

• PCB Type: High-quality FR4
• Connector: SMA-compatible footprint
• Dimensions: Compact design suitable for benchtop use
• Brand: Deeplab Studio

Applications

• Amateur radio (Ham Radio) filter design
• Harmonic suppression filters
• RF signal conditioning and testing
• Electronics and RF laboratory education

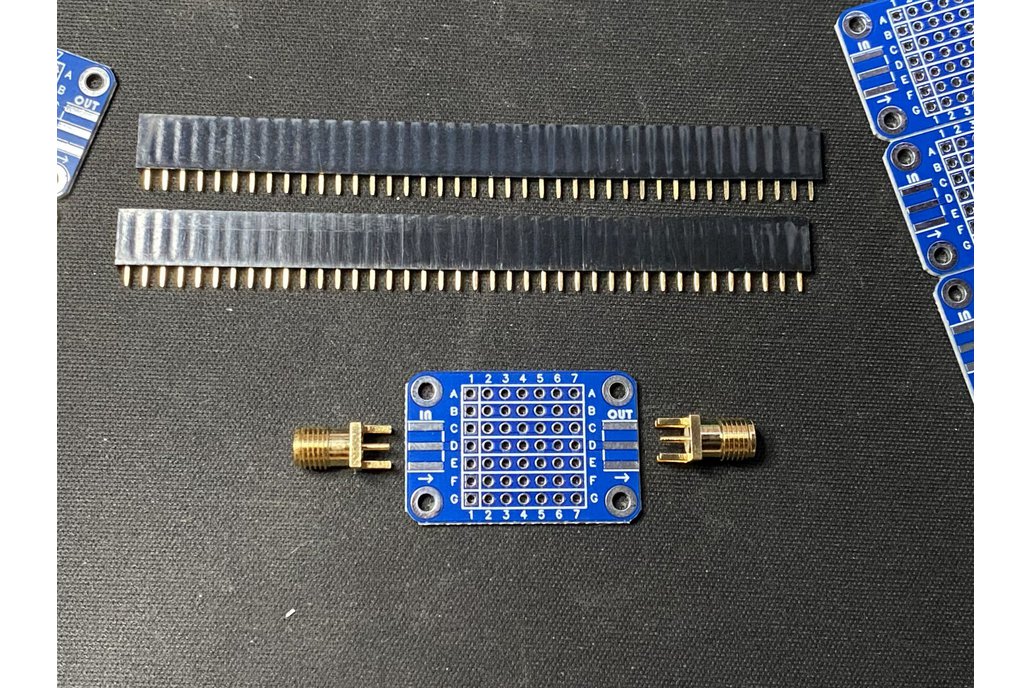

Package Contents

• 1 × Filter Test Board
• 2 × 1x40 Female Header
• 2 × SMA Connectors
