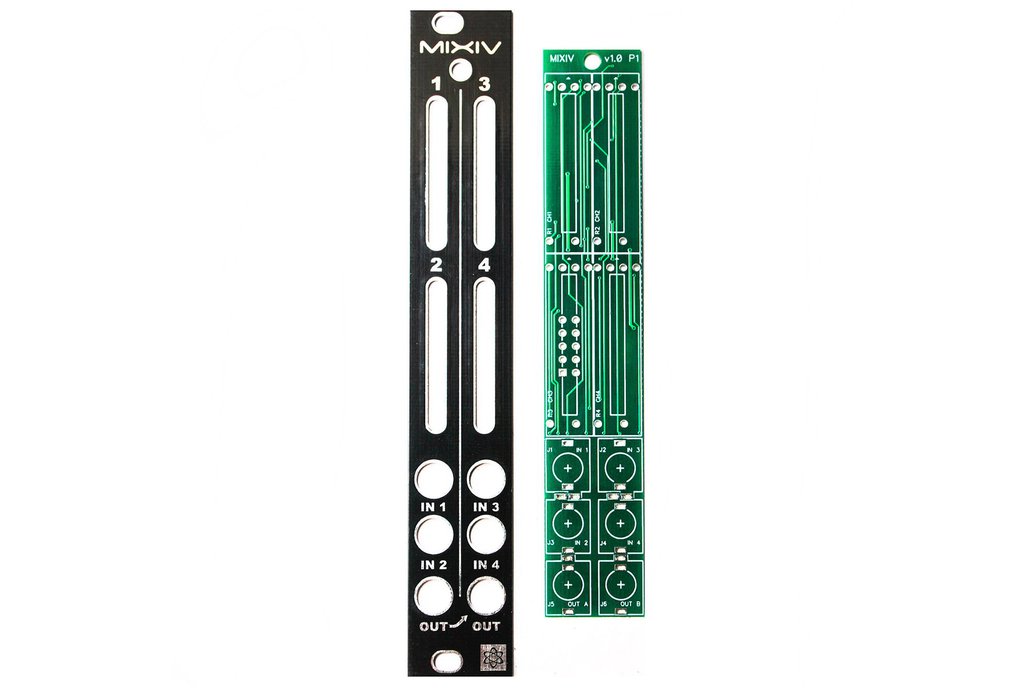

Please note: this includes the PCB and panel only. Please reference the bill of materials link below for a complete list of parts.

The MIXIV (mix 4) is a four-channel mixer in 4HP. This is Synthrotek's first SMD circuit and it is very fun and easy to build (for SMD). Channels 1 & 2 can have their own output when a cable is patched in to the sub-output jack. When the left-hand OUT jack is not patched, all channels come out of the right-hand OUT jack. Mix CV or Audio simply and with slider precision! Very skiff friendly at only 26mm deep!

Features:

• Mixes audio and CV signals (DC coupled)
• Mixes four channels together (4:1), or mixes two sets of two channels (2x 2:1)
• Dope faders

Specifications:

• Module width: 4HP
• Module depth: 26mm
• Current Draw:
• +12V: 15mA
• -12V: 10mA
