We put a lot of care into our work. The enclosure is made from 2mm thick bent steel, welded and powder-coated for durability. The amplifier itself is hand-soldered, ensuring quality craftsmanship. All passive components, including electrolytic capacitors, are from Vishay, maintaining high reliability and performance.

Technical Specifications:

• Input Impedance: 100kΩ
• Headphone Load Impedance: 32Ω to 600Ω
• Frequency Response: 10Hz to 80kHz
• Output Power: 250mW
• Total Harmonic Distortion (THD): 0.36%
• Tubes: 1x ECC81/12AT7 (preamplifier), 2x 6N6P (output)
• Input Connectors: 2x RCA
• Power Connector: 1x IEC-C14
• Output Connector: 1x 6.3mm Stereo Jack
• Weight: 4kg
• Dimensions: 204mm x 154mm x 132mm

Preamplifier Tube Options:

The amplifier offers a selection of preamplifier tubes, each influencing the sound signature:

• ECC81 JJ
• ECC81 Gold Lion
• ECC81 Mullard
• 12AT7 EH
• 12AT7WC EH
• 12AT7W Tung-Sol
• 12AT7 S4A
• ECC81 Telem (NOS)
• ECC81 RFT (NOS)
• ECC81 Philips Miniwatt (NOS)
• ECC81 Valvo (NOS)
• ECC81 Telefunken (NOS)
• ECC81 Siemens (NOS)
• 12AT7 Lorenz (NOS)
• 12AT7 NEC (NOS)
• 12AT7 Radiotron USA (NOS)
• 12AT7 RCA (NOS)
• 12AT7WA Sylvania (NOS)
• 12AT7WA RT (NOS)
• 12AT7 Matsushita (NOS)
• 12AT7WC Philips ECG (NOS)
• 12AT7WC General Electric (NOS)
• 12AT7WA Raytheon (NOS)
• E81CC Haltron (NOS)
• E81CC Brimar (NOS)
• E180CC Philips Miniwatt SQ (NOS)
• 6211 General Electric (NOS)
• 6201 CEI (NOS)
• 6414 RSD (NOS)
• 5965 Telefunken (NOS)
• 6060 Brimar (NOS)
• 12AV7 General Electric (NOS)

Pricing and Customization:

The amplifier is priced at $520 USD, which includes the most expensive preamplifier tube option. However, by selecting a different tube, the overall cost can be reduced, making the amplifier more accessible while still delivering exceptional audio performance.

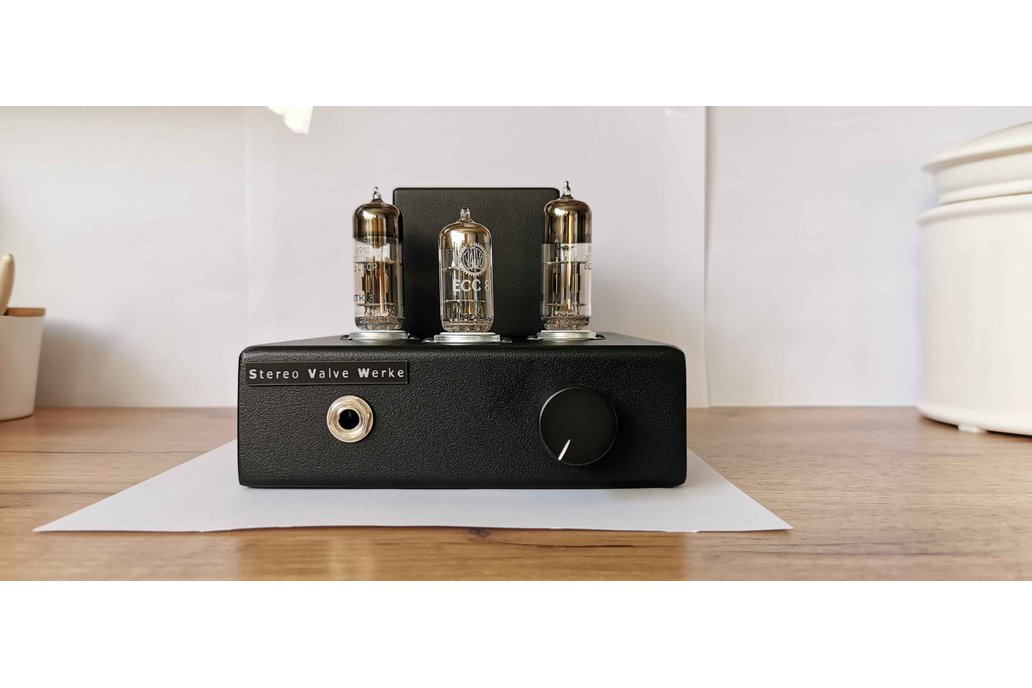

Experience the fusion of traditional craftsmanship and modern engineering with the SVW Audio OTL 6N6P—a durable and versatile amplifier perfect for any discerning audio enthusiast.
