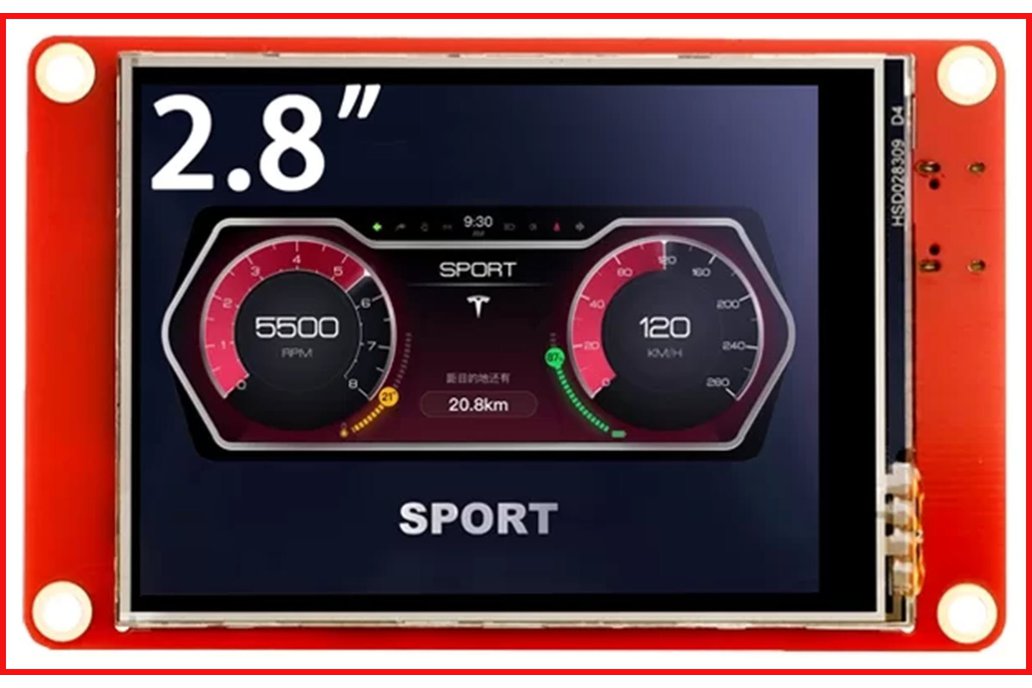

CrowPanel 2.4" / 2.8" – Ready-to-Use TFT Screen for Home Assistant

This module is based on the CrowPanel 2.4" and 2.8" ESP32 HMI 320×240 TFT Touchscreen displays, fully pre-configured for seamless integration with Home Assistant.

As soon as it powers on, the screen is ready to display anything you want:

• Fully script-controlled text rendering from a provided Home Assistant script: text, color, font size, X/Y coordinates
• Touchscreen divided into 4 interactive zones, automatically updating a Home Assistant variable

These two functions—dynamic display and interactive touch—form the heart of the module: a single Home Assistant script line is enough to write on the screen or react to user input.

Transform your Home Assistant setup with a fully customizable screen: 15 display lines, 4 touch zones, sleep mode, reboot, vertical/horizontal orientation, and more.

✅ Ultra-simple installation

To use the display (rendering + touch), simply:

• Connect the screen to WiFi

• Add the provided Home Assistant YAML input file, then restart Home Assistant

• Use the provided script to write text or handle touch input

No complex configuration required, you have nothing to do within ESPHOME !

🔥 Technical Features

• TFT Display – Based on CrowPanel modules

• Resolution: 320 × 240

• Size: 2.4" or 2.8"

• Screens used: CrowPanel 2.4" ESP32 HMI 320×240 / CrowPanel 2.8" ESP32 HMI 320×240

• Orientation: horizontal or vertical

🎨 Dynamic Display – 15 Scriptable Lines

Each line can be fully defined: text, color, font, X and Y position.

Simple example :

 script.screen_to_ha
 data:
 line: 2
 text: Long live peace !
 xc: 20
 yc: 75
 color: green
 font_size: 18
 screen: 1

Example using HA variables + Jinja :

 script.screen_to_ha
 alias: L1
 data:
 line: 1
 text:
 {% set lang = states('input_select.s2_language') %}
 {% if lang == 'FR' %}
   {{ now().strftime('%H:%M %d/%m/%Y') }}
 {% else %}
   {{ now().strftime('%I:%M %p %m/%d/%Y') }}
 {% endif %}
 xc: "{{ states('input_number.s2_l1_x')|int }}"
 yc: "{{ states('input_number.s2_l1_y')|int }}"
 color: "{{ states('input_text.s2_l1_color') }}"
 font_size: 18
 screen: 2

🖐️ Touchscreen – 4 Interactive Zones

• The screen is divided into four touch zones.

• Each tap automatically updates this Home Assistant entity: input_number.s1_zone_touch = 1, 2, 3, or 4

• Perfect for triggering scenes, navigating pages, launching scripts, and more.

⚙️ Additional Features

• Screen ON/OFF from Home Assistant

• Reboot via Home Assistant

• Multi-screen support

Unused hardware resources available:

• I2C bus
• 4 GPIO pins
• Speaker output

📦 Kit Includes

• CrowPanel screen (2.4" or 2.8")

• Mounting frame

• USB cable

• I2C cable

• Resistive stylus

• Editable ESPHome + HA source files

• Installation guide

Requires a 5V / 1A USB-C power supply.

🎯 Perfect for

• Mini Home Assistant dashboards (air quality, energy, weather…)

• Dynamic information displays

• Wall-mounted touch interfaces

• list text hereMulti-screen synchronized systems

• list text hereScript-driven automations

👉 Software only option : (ESPHome + Home Assistant Package)

This option does not include the CrowPanel display, you will receive by email the complete ESPHome firmware and Home Assistant integration package used by the full product:

• ESPHome configuration (ready to compile)
• Home Assistant YAML inputs
• Scripts for screen writing and touch handling
• Full documentation

Prerequisite:

You must know how to flash/upload an ESPHome firmware to an ESP32 module, no support is provided for basic ESPHome usage.

Everything else (screen layout, touch zones, HA scripts, multi-screen support, etc.) works exactly like the full version.

Feel free to contact me for a price update (12$).
