SBK BarDriveMAX 28 + SBK BarMeter SA28/SK28 Bundle

Name: SBK BarDriveMAX 28 + SBK BarMeter SA28/SK28 Bundle
SKU: 39461
Price: 25.00 USD
Availability: InStock

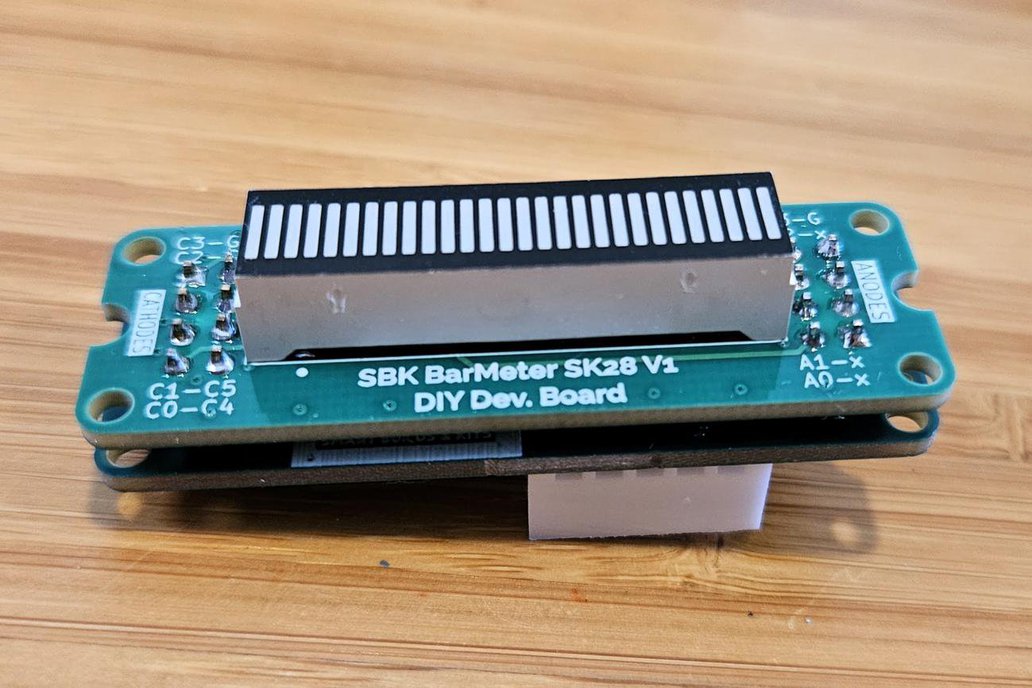

SBK BarDriveMAX 28 + BarMeter SA28/SK28 Bundle - completed BL28-3005Sx04Y bar meter display with MAX7219 SPI driver backpack

Designed by Smart Builds & Kits in Canada

SBK BarDriveMAX 28 + SBK BarMeter SA28/SK28 Bundle 1

SBK BarDriveMAX 28 + SBK BarMeter SA28/SK28 Bundle 2

SBK BarDriveMAX 28 + SBK BarMeter SA28/SK28 Bundle 3

SBK BarDriveMAX 28 + SBK BarMeter SA28/SK28 Bundle 4

SBK BarDriveMAX 28 + SBK BarMeter SA28/SK28 Bundle 5

SBK BarDriveMAX 28 + SBK BarMeter SA28/SK28 Bundle 6

2025-08-04T13:30:09.874Z-BarDriveMAX28_BarMeterSx28_bundle (2).jpg

2025-08-04T13:30:09.874Z-BarDriveMAX28_BarMeterSx28_bundle (1).jpg

2025-07-18T18:52:06.663Z-Sx28 front with components.jpg

2025-07-18T18:37:08.114Z-SBK BarDriveMax 28 front with terminals.jpg

2025-07-18T18:37:28.013Z-SBK BarDriveMAX 28 SBK BarMeter Sx28 Bundle (2).png

2025-07-18T18:37:28.013Z-SBK BarDriveMAX 28 SBK BarMeter Sx28 Bundle (1).png

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Stock is intentionally kept low due to the wide variety of product options. Inquiries: SmartBuildsKits@gmail.com IMPORTANT: Only fully assembled and soldered boards are tested before shipping.

SBK BarDriveMAX 28 + BarMeter SA28/SK28 Bundle - completed BL28-3005Sx04Y bar meter display with MAX7219 SPI driver backpack

SBK BarDriveMAX 28 + BarMeter SA28/SK28 Bundle 🔌 A complete plug-and-play LED bar meter solution! 🎁 What’s Included ✅ SBK BarDriveMAX 28: Based on the MAX7219 LED matrix driver Soldered SMD passi…

SBK BarDriveMAX 28 + BarMeter SA28/SK28 Bundle

🔌 A complete plug-and-play LED bar meter solution!

🎁 What’s Included

✅ SBK BarDriveMAX 28:
Based on the MAX7219 LED matrix driver
Soldered SMD passives, decoupling capacitors
Ready to drive 28-segment matrix bar displays via sofware SPI (any 3 IO pins) or hardware SPI (dedicated MCU SPI pins)
✅ SBK BarMeter SA28/SK28 :
BL28-3005Sx04Y LED bar meter display
(Optional) Pre-mounted and soldered directly onto the BarDriveHT 28 backpack

⚙️ Features

SPI 3 pins interface : Data, Clock, Chip Select (software or hardware)
28-segment matrix-style LED bar meter display
Built-in 16-step PWM brightness control
Plug-compatible with the SBK_BarDrive Arduino library for animations
Fully supported by the SBK_HT16K33 Arduino library
Compatible with any generic HT16K33 libraries

🛠️ Applications

Audio spectrum or level meters
Signal strength indicators
Industrial or lab control panels
Retro-style display bars
Creative animations or prop effects

📐 Technical Specifications

Property	Value
Logic level	5V
Display type	BL28-3005SA04Y (common anode) or BL28-3005SK04Y (common cathode)
Driver chip	MAX7219 IC led driver
Board format	Backpack-style: display soldered to driver board

💡 Just connect 5V, GND, DATA, CLOCK and CS — and you're ready to animate 28 segments in style!

> 🔧 Note: Specify SA28 or SK28 version, and LED color, at checkout.
> 🧰 UNSOLDERED BUNDLE means THT components are not soldered. All SMD components are pre-soldered.
