SBK BarMeterHT 28 V1

HT16K33 20-SOP Backpack Driver for BL28-3005Sx04Y Bar Meter Display

The SBK BarMeterHT 28 V1 is a compact LED driver board designed to control a 28-segment bargraph display (BL28-3005Sx04Y series). Powered by the Holtek HT16K33 LED controller IC in a 20-SOP package, this module is ideal for projects requiring visually rich level indicators, VU meters, or dynamic status displays — all through I2C!

✅ This driver is designed to pair with the SBK BarMeter SA28/SK28 display board, sold separately.

📦 Also available as pre-soldered bundles : SBK BarDriveHT 28 + SBK BarMeter Sx28 – With HT16K33 I2C driver

🧩 Features

• 💡 Drives up to 64 LEDs in a 8×8 matrix configuration
• 🧠 Integrated HT16K33 IC with:
• I2C interface (up to 400kHz)
• 8×8 RAM-mapped LED control
• 16-level digital dimming (PWM brightness control)
• 🔌 I2C address settable via onboard jumpers (A0–A2)
• 🔋 Operates at 5V logic and power
• 🔧 Includes pull-up resistors and bypass capacitor for stable operation
• 🔩 Designed as a backpack for SBK BarMeter SA28/SK28 boards (not included) holding 28 segments matrix type bar meter (BL28-3005SA04Y for common-anode or BL28-3005SK04Y for common-cathode)
• 🔗 Compatible with Arduino and other I2C microcontrollers
• 🧱 Ideal for use with any HT16K33 driver libraries, or the SBK_HT16K33 and SBK_BarDrive Arduino libraries for easy control and preset animations

📐 Specifications

🛠️ Applications

• Audio level meters (VU meters)
• Battery charge indicators
• Volume and signal strength displays
• Custom status bars for wearables or props, like the Ghostbusters inspired Neutrino Wand bar meter.
• Diagnostic and industrial indicator panels

🚀 Getting Started

To control this module:

1. Connect SDA/SCL/GND/VCC to your microcontroller (5V logic).
2. Set I2C address via onboard A0-A2 jumpers.
3. Use any HT16K33-compatible Arduino library or our custom SBK_HT16K33 library for a simple driver interface.
4. Use SBK_BarDrive Arduino Library for easy bar meter animations.

📦 What’s Included

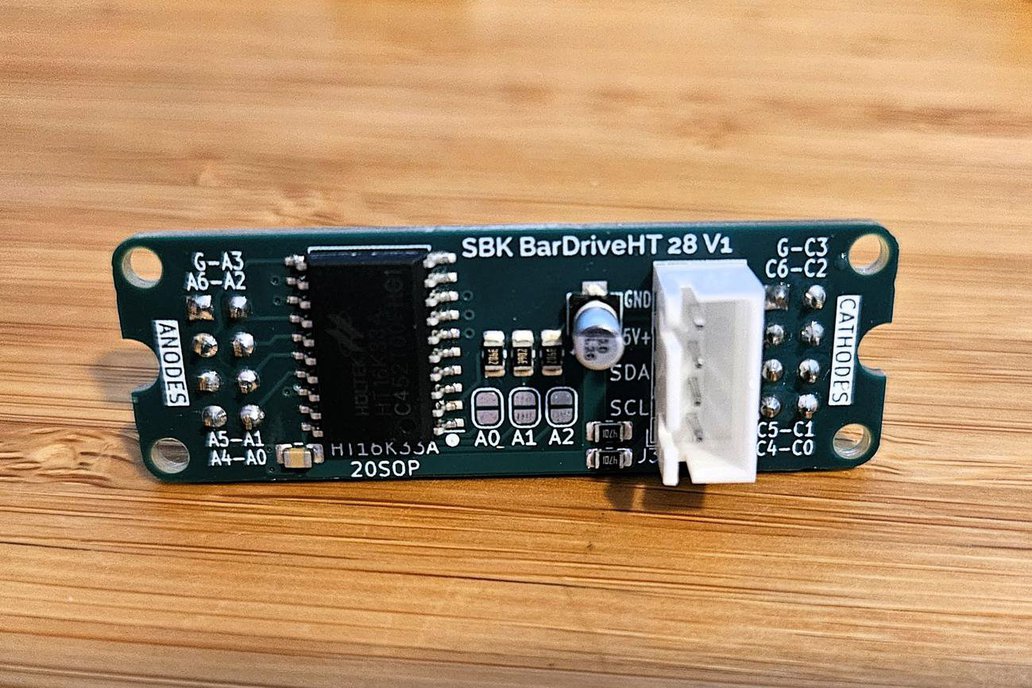

• 1× SBK BarMeterHT 28 V1 PCB (assembled)
• (Optional) Pin headers (unsoldered or soldered)
• (Optional) 4 pins JST-XH terminal (unsoldered or soldered)

🛒 Notes

• SBK BarMeter SA28/SK28 board and bar meter display are not included
• Designed for hobbyists, engineers, and makers looking to simplify LED bargraph control
• Fully compatible with 5V Arduino boards (e.g., Uno, Nano)

💬 Questions or suggestions? We’re makers too — feel free to reach out!

🔗 Visit Smart Builds & Kits for documentation, firmware examples, and more!
